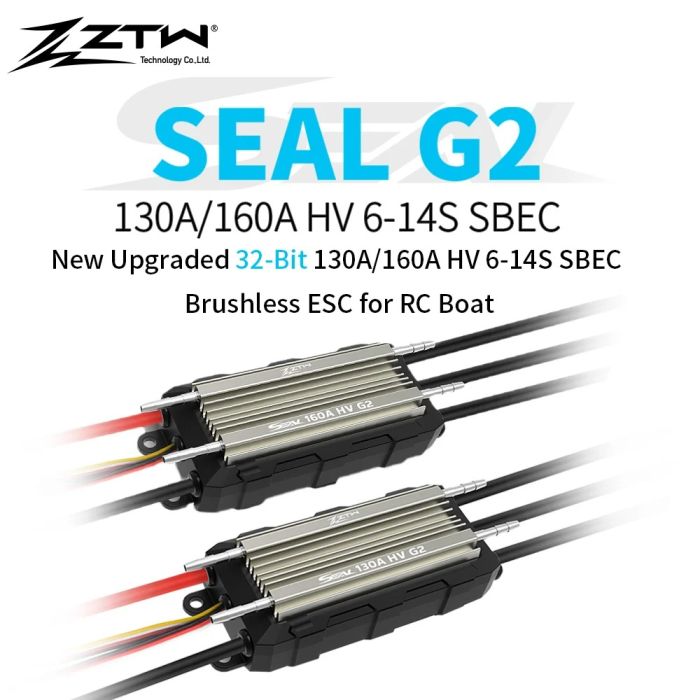

ZTW have released a new 32-bit version of the Seal G2 130A/160A HV 6-14S Built-in SBEC with new compact design, shorter, and narrower than its predecessor.
The SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. It includes two water cooling pipes as well as customized heat sinks. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
FeaturesAdopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
Adopting high performance 32 bit microprocessor, the operation frenquency is up to 170MHz which makes the ESC stronger computing ability and faster running speed.

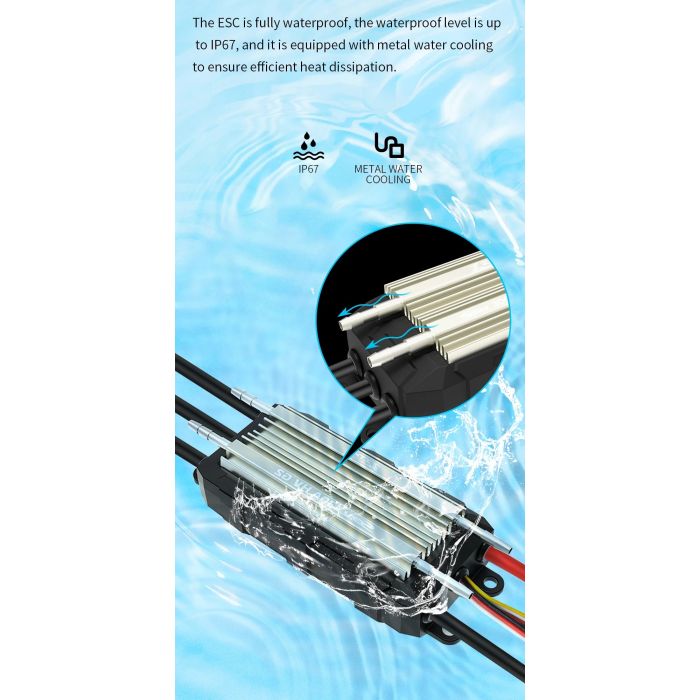

The waterproof design (rates as IP 67) allows this ESC to work in wet conditions, and it is equipped with metal water cooling to ensure efficient heat dissipation.
Super smooth start-up and accurate throttle linearity make the ESC suitable for various of applications such as, all kinds of RC boat models, electric surfboard and other underwater applications.

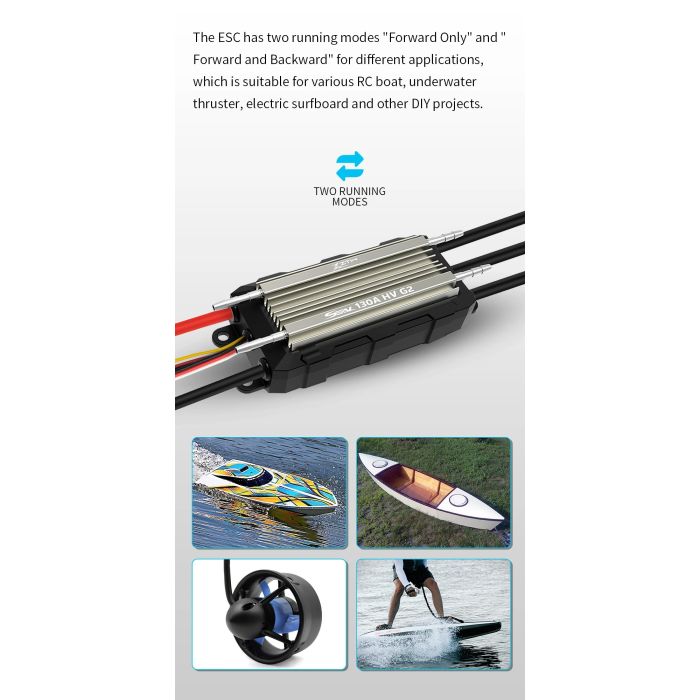

The ESC has two running modes for different applications:“Forward Only” and “Forward and Backward”.
The ESC has freewheeling which makes the ESC with higher driving efficiency and more energy-saving.

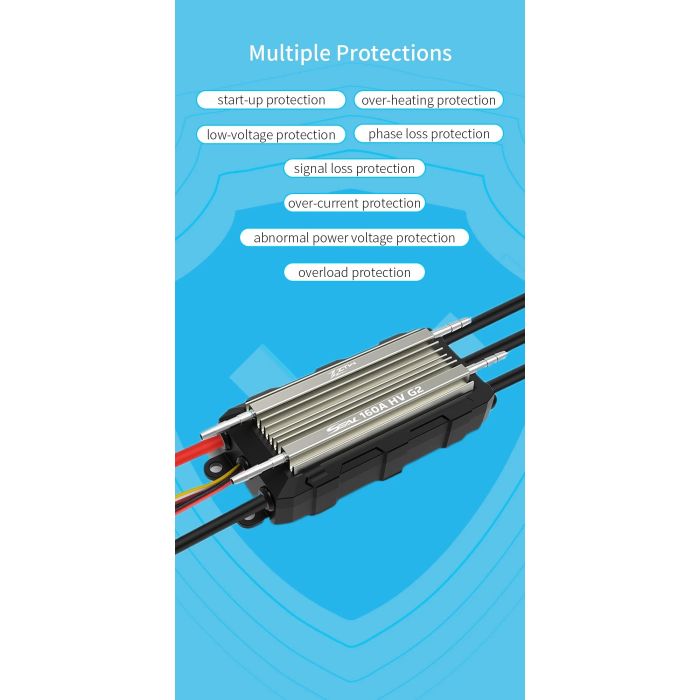

Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss, over-current, abnormal power-on voltage, over-load protection.
Support high RPM motors, and compatible with most motors in the market.

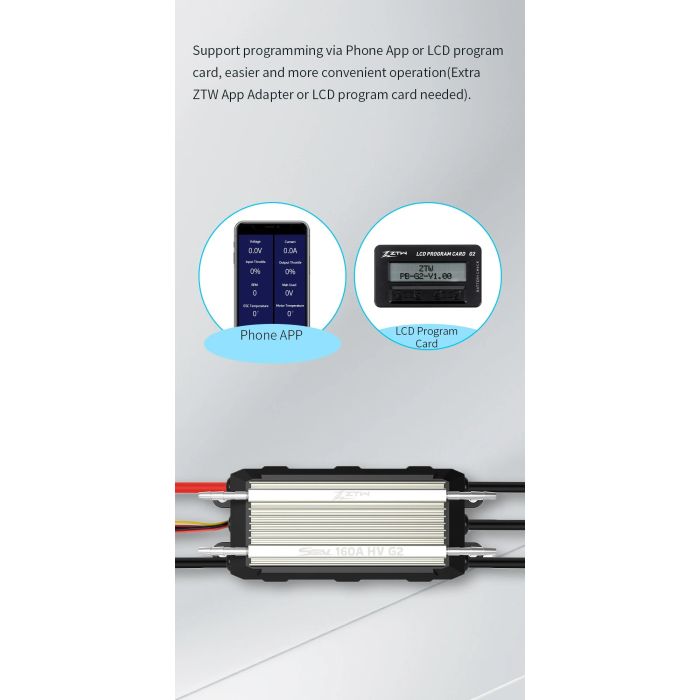

Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth module or LCD program box G2 needed.)
Support data communication with Futaba remote control (S.BUS2 protocol).
Support CAN protocol makes the ESC can be widly used for various of applications.
The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW App or LCD program Box G2 in real-time.
SpecificationBurst Current(A): 960 Amps
Voltage: 6-14S Lipo (18-42 NiMH)
BEC Output: 6V/7.4V/8.4V 10A
Power Wire: 10 Gauge160mm-Red/160mm-Black
Motor Wire 10 Gauge 160mm-Black
The throttle works in both forward and reverse or you can lock out the reverse function for racing safety.
Optional programming with LCD programming card G2.
Dimensions (not including wires):Length: 126mm
Width: 52mm
Height: 30mm
Weight: 302g
The SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. It includes two water cooling pipes as well as customized heat sinks. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
Features
Specification
Dimensions (not including wires):
Details
Additional Information
| Part Number | ZTW7160410 |
|---|---|
| Manufacturer | ZTW |
