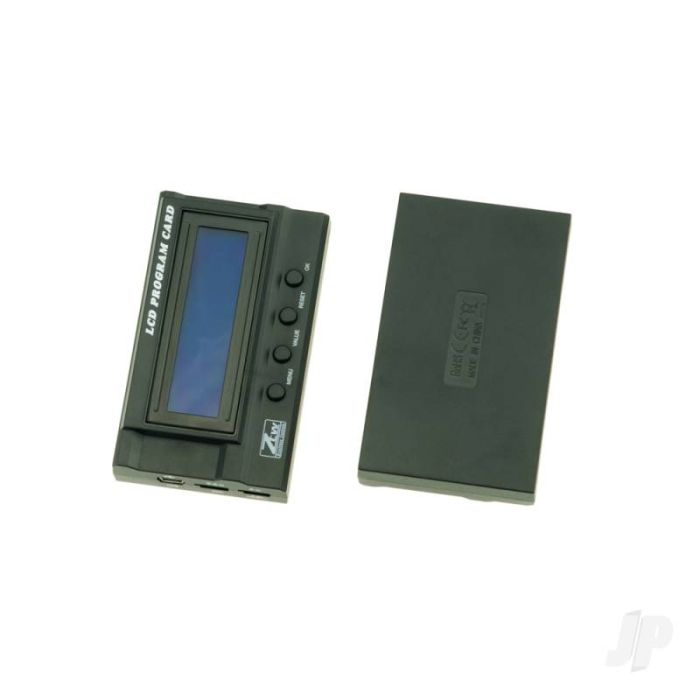

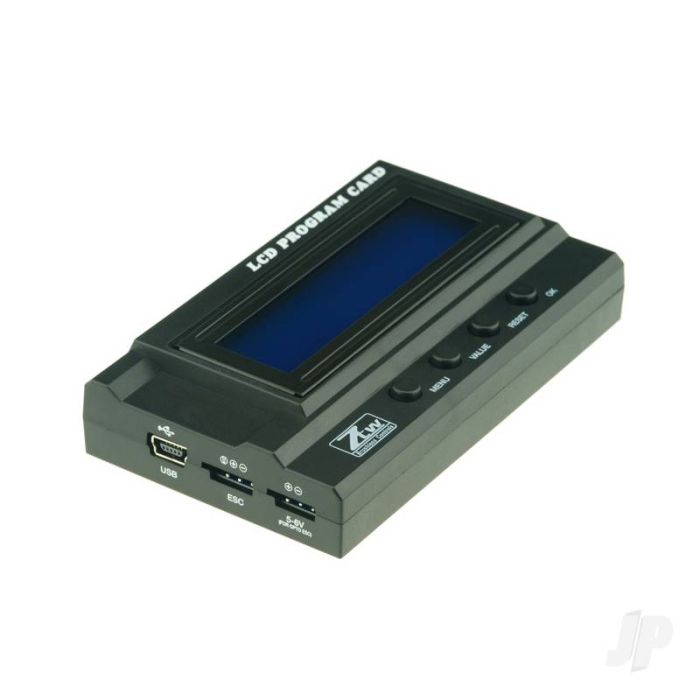

ZTW LCD Gecko Program Card for 1:5 Beast Pro Brushless RC Car ESC

Take full control of your 1:5 scale power system with the ZTW LCD Gecko Program Card. Specifically designed for the massive Beast Pro series and Gecko brushless ESCs, this handheld programmer eliminates the frustration of "button-press" sequences and beep-coding. Its backlit LCD interface allows you to fine-tune every parameter of your speed controller—from brake strength to motor timing—ensuring your heavy-weight 1:5 scale rig performs exactly how you want it to on the track or in the dirt.

Key Features:

• Backlit LCD Display: Provides a clear, easy-to-read interface even in bright outdoor conditions, displaying full parameter names rather than confusing numerical codes.
• Comprehensive Tuning: Access deep-level settings including Punch Control (to save your drivetrain), Brake Force, Timing, and Voltage Cut-off.

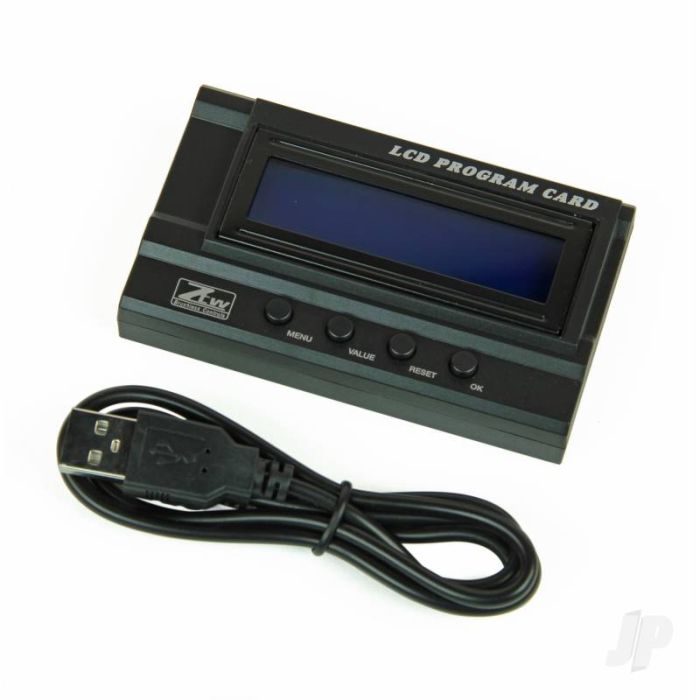

• Firmware Updatable: Features a USB port that allows you to connect the ESC to a PC via the program card to update to the latest ZTW firmware and features.
• LiPo Battery Monitor: Functions as a standalone battery checker, allowing you to check the total voltage and individual cell voltages of your flight or drive packs at the field.
• Beast Pro Optimization: Engineered to handle the specific high-voltage settings (up to 12S LiPo) required for the ZTW Beast Pro 200A and 300A 1:5 scale ESCs.

Programmable Parameters:

Technical Tip:

When using this card with a Beast Pro ESC, ensure the ESC is powered by its own battery pack before connecting. The card plugs into the small 3-pin port (the same one used for the fan or the throttle signal, depending on the model). If you are updating firmware via a PC, always use the ZTW PC Link software to ensure the card and ESC are synced correctly before making changes.
