Team Associated B6 Series Arm Mount Inserts 1/0.5

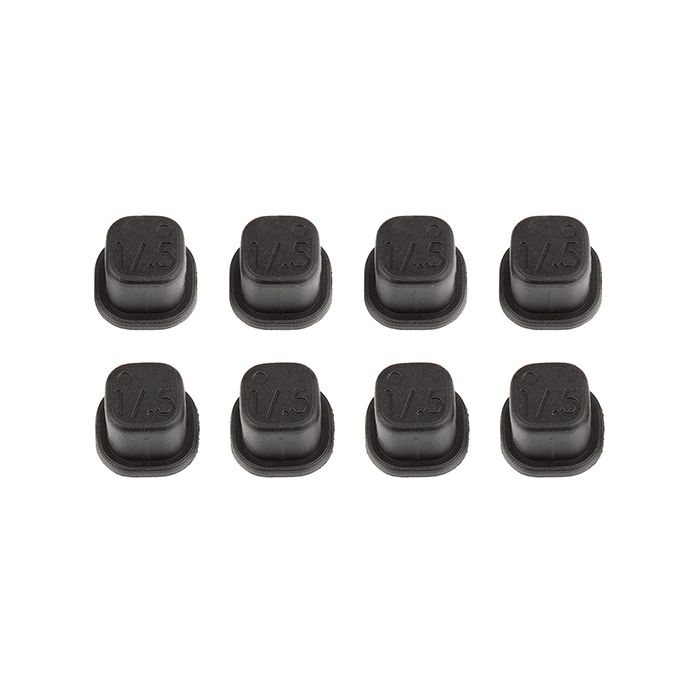

The AS92011 Arm Mount Inserts 1/0.5 are molded in black plastic and come with eight per package. Get these to try new settings not previously available with the current inserts. The 1/0.5 inserts help "fill in the blanks" and give a 0.5 step option where you previously only could adjust things in 1.0 steps, 1.0-up or 1.0-corner, filling out the finer settings on the outer perimeter of our current adjustment grid.

The new design holds the hinge pin 1 degree (or 0.7mm) offset UP and 0.5 degree (or 0.35mm) offset IN or OUT. When turned sideways, racers can do 1 degree OUT and 0.5 degree UP or DOWN.

There is a Type 1 and Type 2 cavity (hole locations must mirror each other) so you must watch when installing to keep them symmetrical. This visual chart is your master key showing part orientation.

Fits

• RC10B6
• RC10B6 Club Racer
• RC10B6.1
• RC10B6.1D
• RC10B6.1DL
• RC10B6.2
• RC10B6.2D
• RC10B64
• RC10B64 Club Racer
• RC10B64D
• RC10B6D
• RC10B74
• RC10SC6.1
• RC10T6.1
