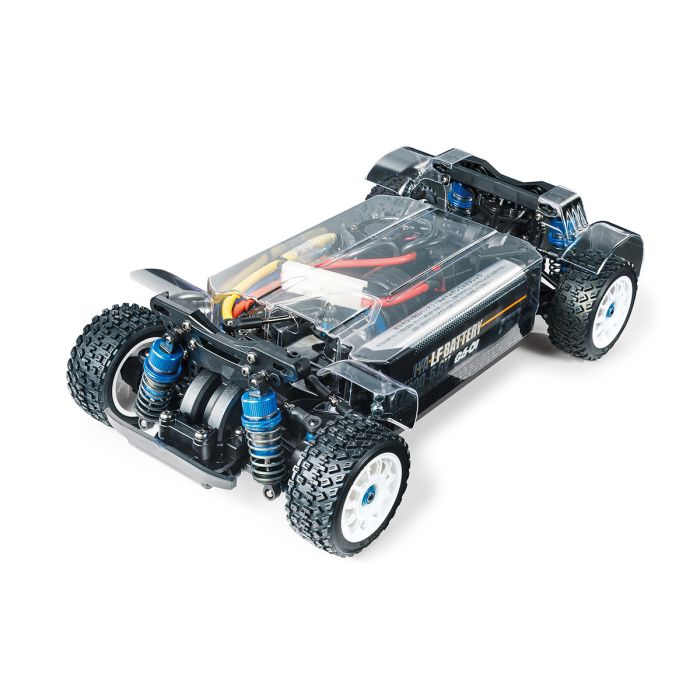

Tamiya 1:10 XM-01 PRO Chassis RC Car Assembly Kit
See All:
Cars & Trucks
See All:
Cars & Trucks
No Stock - Available to Backorder
- Part Number
- HC-58738
SAVE £50.40
£314.99
£264.59
Description
This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!
- This is a 1/10 scale R/C chassis assembly kit
- Equipped with front mid-ship, longitudinal motor position
- Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm) (ref. Image 3)
- Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-folded parts Mud guards helps prevent dirt and dust from getting inside
- New front C-hubs and rear uprights, plus lower suspension arms allow two types (about 8mm or 13mm) of ground clearances
- Caster angle can be set at 5 degrees by suspension mounts *For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle (XV-01 chassis: 10-degree caster angle)
- The drivetrain employs oil-filled gear differential for front and rear
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice versa for drive balance bias to rear
- It features a longitudinal upright battery pack position in the centre-left for optimum balance
- Front bumper with skid angle contributes to reduce surface contact
- Aluminium dampers are employed at the front and rear
- M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427)
- Front and rear universal drive shafts come as standard
- Compatible with centre diff setup and separately sold slipper clutch
- Low-profile servo is recommended (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover
- Please note that this chassis requires separately sold body, battery pack, motor, ESC and R/C equipment
More Information
| Part Number | HC-58738 |
|---|---|
| Manufacturer | Tamiya |
| Model Build | Kit |
| Power | Electric |
| Scale | 1:10 |
