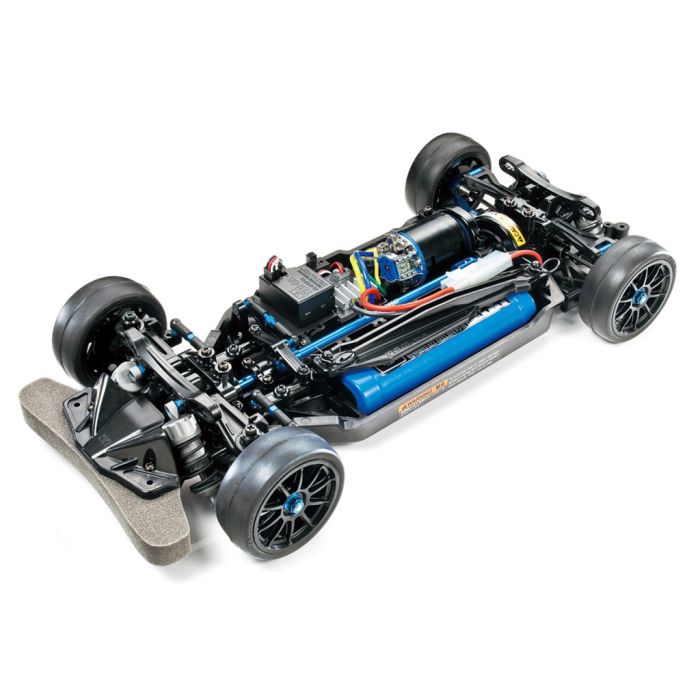

Tamiya 1:10 TT-02R RC Car Chassis Kit
See All:
Cars & Trucks
See All:
Cars & Trucks
No Stock - Available to Backorder
- Part Number
- HC-47326
SAVE £28.80
£179.99
£151.19
Description
This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminium rear uprights give 3-degree toe-in for more stable cornering, while an aluminium motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminium propeller shaft and centre cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).
Featured Components
Aluminium Rear Uprights (3-Degree Toe-In)
Aluminium Motor Mount
TT-02 Aluminium Propeller Joints
TT-02 Aluminium Propeller Shaft
TT-02 Full Ball Bearing Set
Metal Drive Shafts, Wheel Axles and Gearbox Joints
3x18mm Aluminium Turnbuckle Shafts
4mm Aluminium Flange Lock Nuts (Blue)
5mm Aluminium Short Ball Connector Nuts (Blue)
5mm Aluminium Ball Connectors (Blue)
Medium-Narrow Racing Slick Tires
5mm Ball Connectors
CVA Oil Dampers & Springs
Specifications
- Scale is 1:10
- Length: 376mm, width: 182mm
- Wheelbase: 257mm
- Tire width/diameter: 24/64mm (front & rear)
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel resin differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear CVA oil dampers
- Includes 68T and 64T spur gears. Combine with separately-sold pinions for gear ratios from 9.82:1 to 5.74:1
Separately Required Items
2-channel R/C system with ESC
Battery pack and charger
Batteries for transmitter
Type 540 Motor
Body
More Information
| Part Number | HC-47326 |
|---|---|
| Manufacturer | Tamiya |
| Model Build | Kit |
| Power | Electric |
| Scale | 1:10 |
