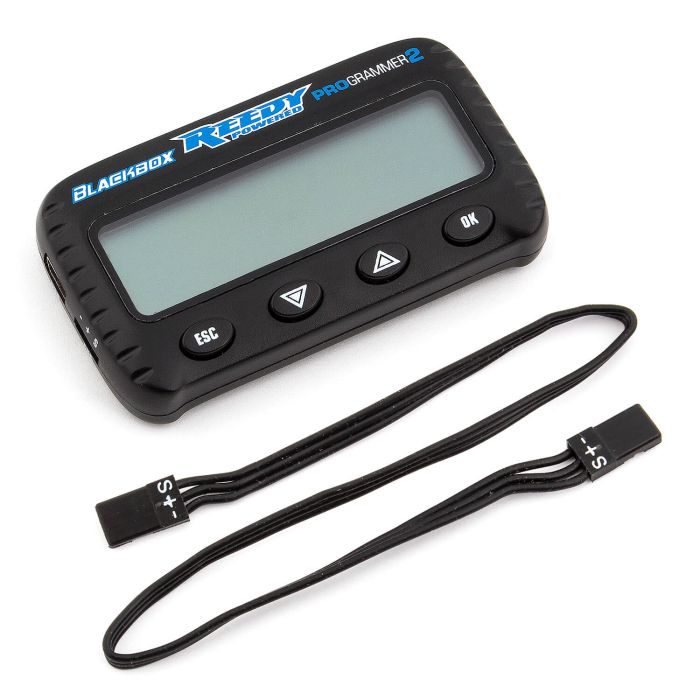

Reedy Blackbox 510R ESC Programmer2

The Reedy Blackbox Programmer2 (Part No: AS27027) is a powerful, multi-function tool designed to unlock the full competition potential of the Reedy Blackbox ESC ecosystem. While it is primarily used to fine-tune throttle and brake curves, it also serves as a critical diagnostic and maintenance device for serious racers, replacing the need for multiple separate tools in your pit bag.

Key Features:

• Complete ESC Customization: Provides access to "Expert Mode" tuning, allowing you to adjust advanced parameters like Boost Timing, Turbo Slopes, Drive Frequency, and Dynamic Drag Brake that are inaccessible via on-board buttons.
• Universal Compatibility: A single device that supports the entire Blackbox lineup, including the 510R, 610R, 850R, 1000Z+ PRO, and 600Z-G2.
• 3-in-1 Functionality:
  • Programmer: Real-time adjustment of ESC settings at the track.
  • Battery Monitor: Acts as a precision LiPo voltage checker.
  • USB Interface: Connects your ESC to a PC via the Blackbox Link software for firmware updates and data logging analysis.
• Data Logging Access: Allows you to pull "black box" data after a run, including maximum ESC temperature and motor RPM, to help you optimize gearing and cooling.

Technical Specifications:

Expert Tuning Tip:

The Programmer2 allows you to toggle between Standard and Expert modes. Pro-Tip: If you are racing in a "Blinky" (Zero Timing) class, use the Programmer2 to verify your ESC is in the correct mode—the ESC LED will usually blink rapidly to signal ROAR compliance. If you're running "Modified," use the Turbo Delay setting to prevent the motor from over-gearing too early on short straightaways, saving your motor from heat damage.

Critical Firmware Note: To ensure compatibility with the newer 610R ESC or the latest PC software, ensure your Programmer2 is updated to firmware version EE460140 or higher. This "Universal" version is required for the programmer to recognize all current and future Reedy Blackbox speed controllers.
