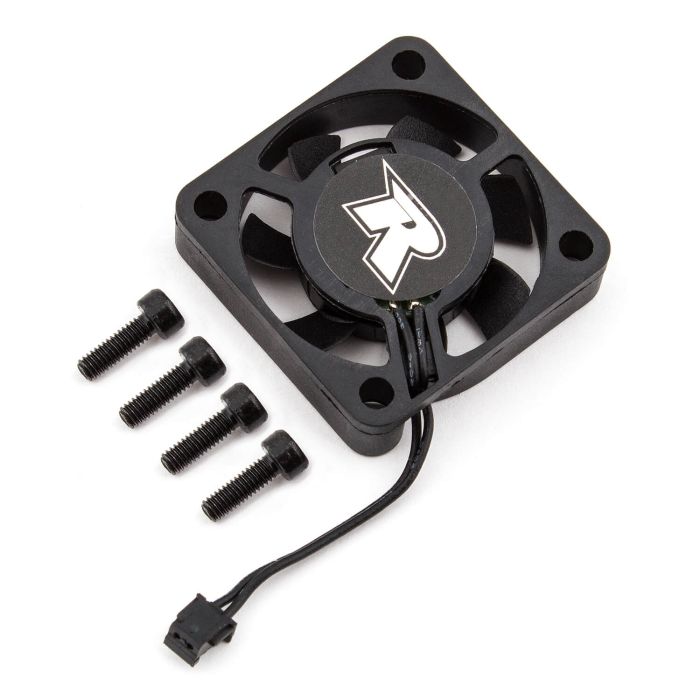

Reedy Blackbox 510R 30x30x7mm Fan W/Screws

The Reedy Blackbox 30x30x7mm Fan (Part No: AS27028) is the ultra-slim cooling solution designed for tight chassis layouts. While the standard 10mm fan provides maximum air volume, this 7mm "low-profile" variant is specifically engineered for 1/10 scale touring cars and buggies where body shell clearance or mid-motor components make a standard-height fan impossible to fit.

Key Features:

• Low-Profile Design: At just 7mm thick, this fan provides essential cooling in cramped environments without sacrificing the structural integrity of the fan housing.
• Optimized Blade Pitch: Despite the thinner profile, the blade geometry is optimized to maintain high static pressure, ensuring air is forced through the ESC heat sink fins even in restricted spaces.
• High-Voltage Compatible: Designed to handle the 6.0V to 7.4V outputs of modern high-performance BECs, allowing it to spin at maximum RPM for peak cooling efficiency.
• Vibration Resistant: Balanced internals reduce "chatter" and vibration, which helps prolong the life of both the fan bearings and the mounting points on the ESC.

Technical Specifications:

Expert Setup Tip:

Because this fan is thinner, the blades have less mass and can be more sensitive to high-voltage spikes. Pro-Tip: If you are running your BEC at 7.4V for high-voltage servos, ensure your fan wires are routed away from the motor wires. Electromagnetic interference (EMI) from the motor can occasionally cause "ghosting" or stuttering in these high-speed slim fans, leading to premature bearing failure.

Mounting Note: The included screws are specifically sized for the 7mm thickness. Warning: Do not use the longer screws from the 10mm fan (AS27031) with this unit, as they will pass through the fan and could potentially pierce the ESC casing or short out the internal electronics.
