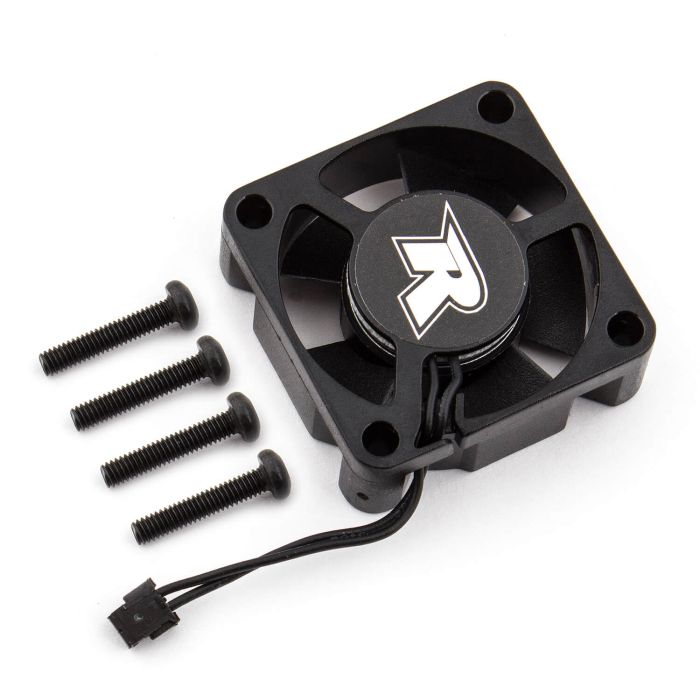

Reedy Blackbox 510R 30x30x10mm Fan W/Screws

The Reedy Blackbox 510R 30mm Fan (Part No: AS27031) is a high-velocity cooling solution designed to maintain the thermal stability of competition ESCs. Originally bundled with the 510R and 610R Blackbox units, this fan is a critical replacement or upgrade for racers running in "Modified" or "Heavy Boost" classes, where high-amperage draws can push ESC temperatures toward the thermal shutdown limit.

Key Features:

• High-RPM Performance: Specifically engineered to move a high volume of air through the ESC’s heat sink fins, significantly lowering internal temperatures during high-load 5-minute racing heats.
• Heavy-Duty Casing: Features a reinforced plastic housing that resists warping under heat and is durable enough to survive the vibrations and impacts common in off-road 1/10 scale buggy racing.
• Factory-Length Lead: Includes a pre-installed lead with a standard 3-pin connector designed to plug directly into the fan port of the Blackbox ESC or a spare receiver channel.
• Complete Mounting Hardware: Comes with four precision-length screws designed to thread into the 510R/610R aluminum ESC case without bottoming out and damaging the internal PCB.

Technical Specifications:

Installation & Pro-Tip:

Airflow direction is vital for cooling. Pro-Tip: Most fans (including this one) blow air toward the side with the manufacturer label. For the best cooling efficiency, mount the fan so the label is facing "down" into the ESC heat sink. This forces cool air directly between the fins rather than trying to pull hot air away from them.

Maintenance Note: Small pebbles or carpet fibers can easily jam 30mm fan blades. Periodically check the blades for chips and use a puff of compressed air to clear out dust. A stalled fan can cause your ESC to thermal-shutdown mid-race, even if the fan "looks" fine from the outside.
