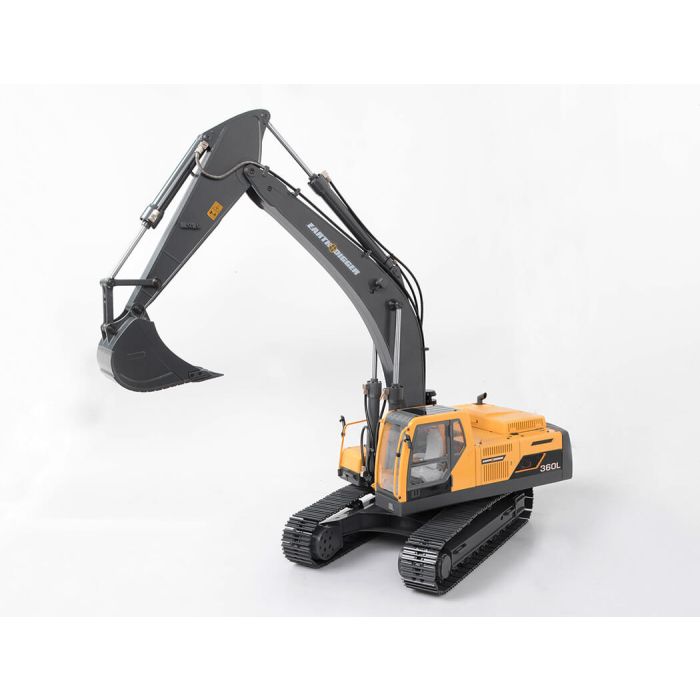

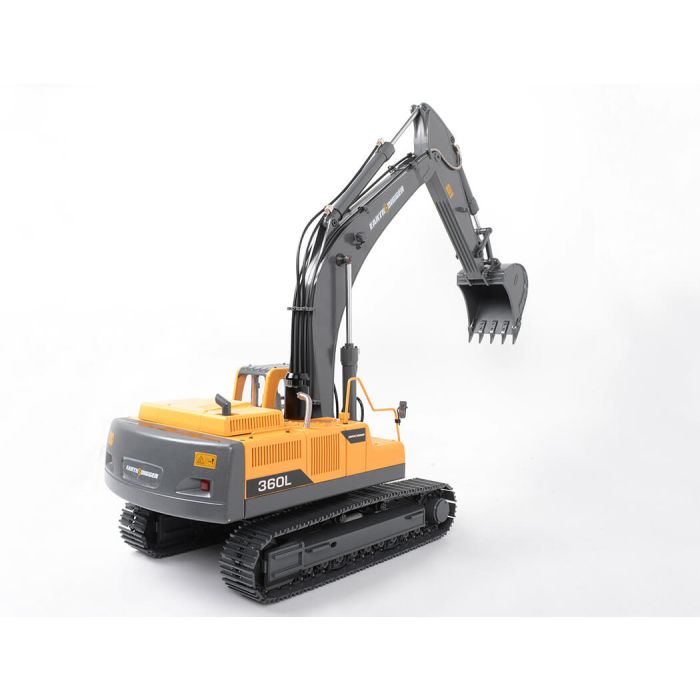

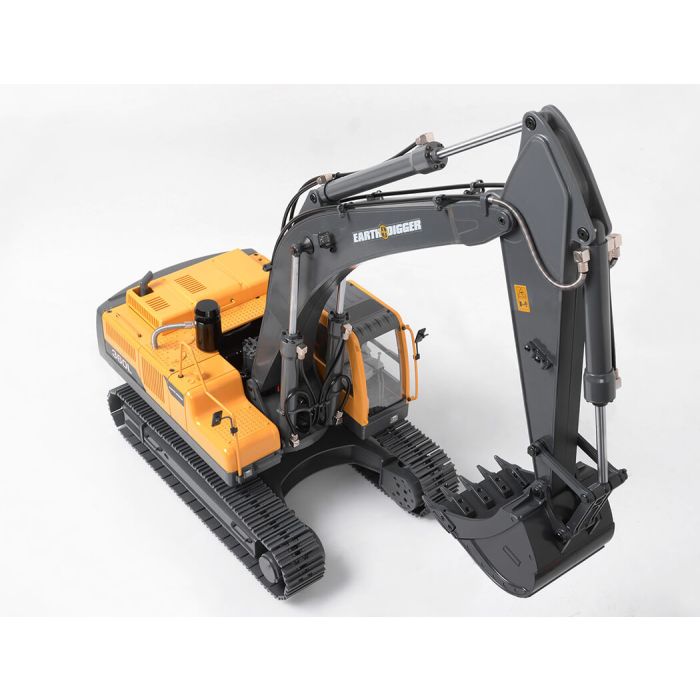

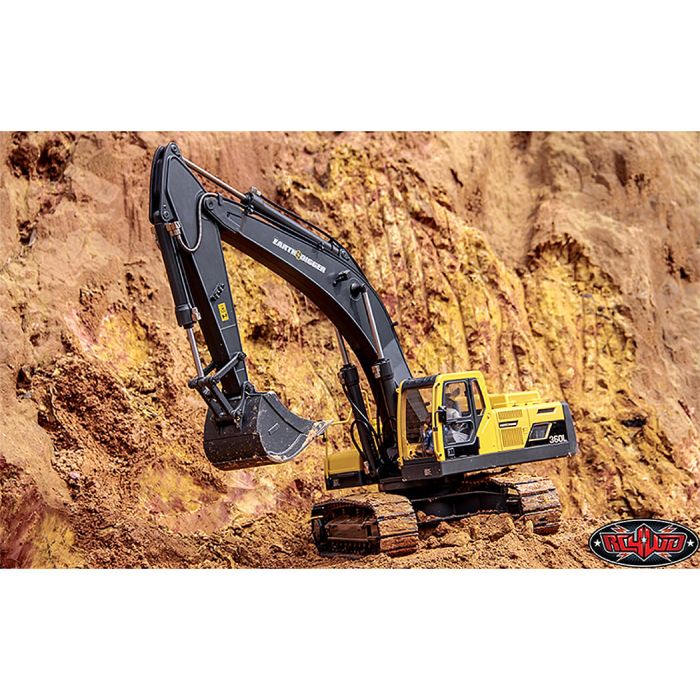

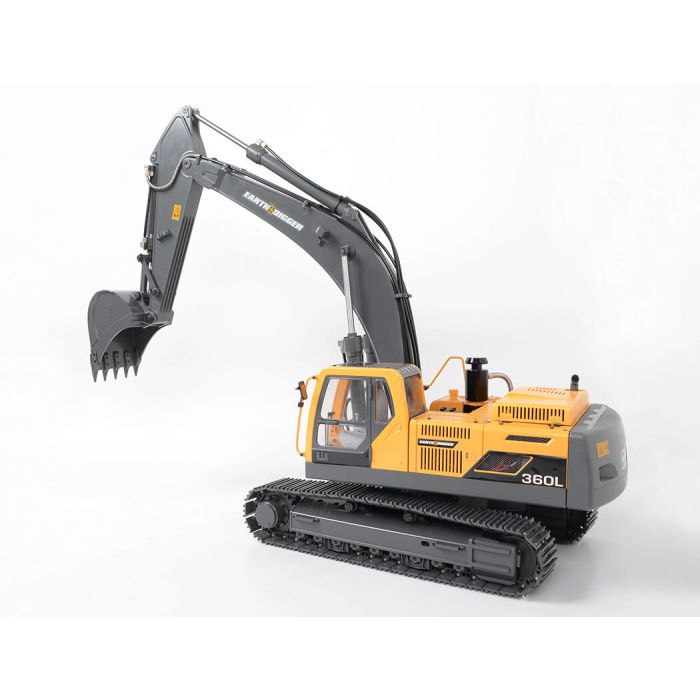

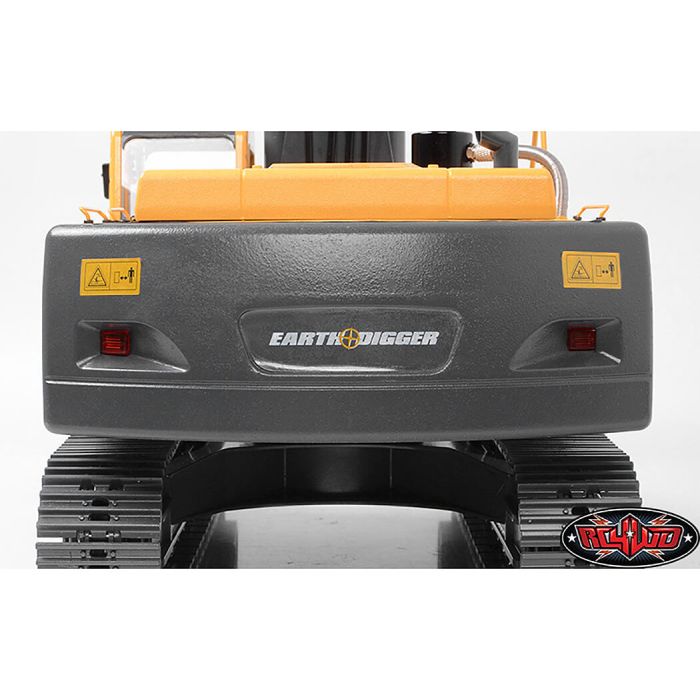

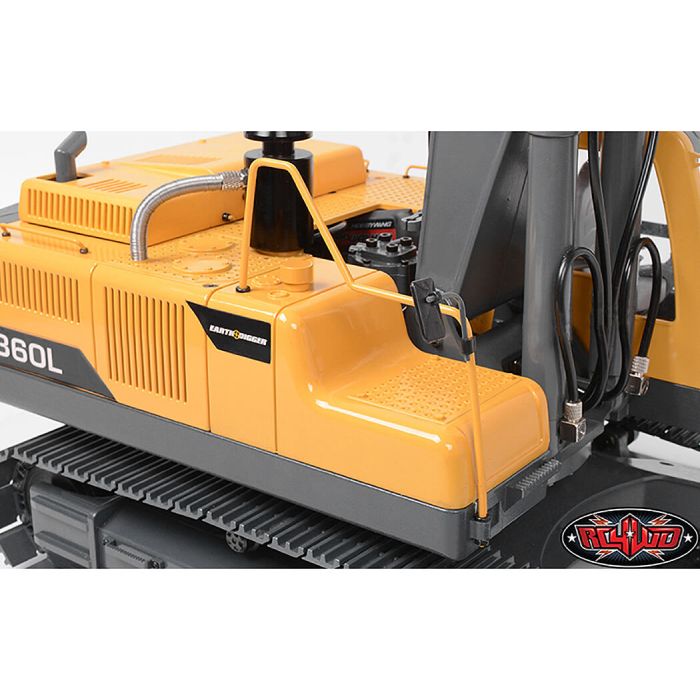

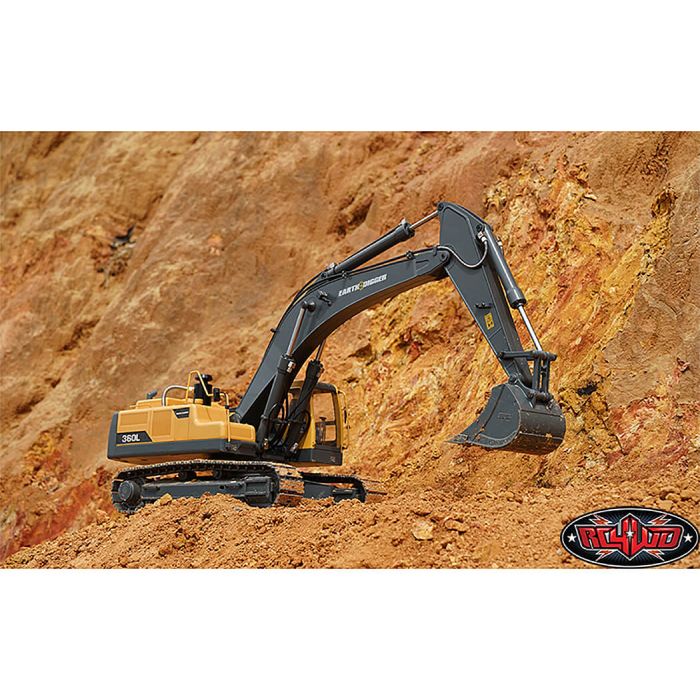

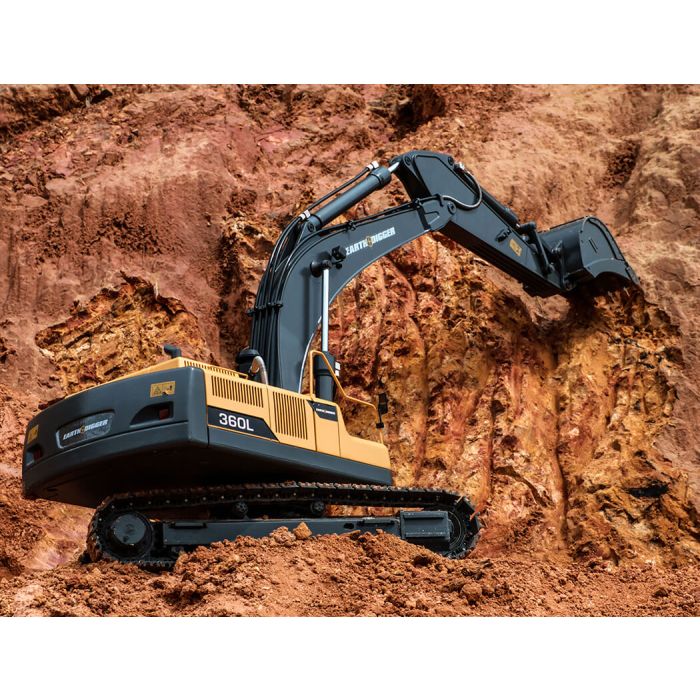

RC4WD 1/14 Scale RTR Earth Digger 360l Hydraulic Excavator

The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig!

Be ready for the massive power delivered through the high output brushless system. Let's get digging!

Features

Alloy Zinc and Alloy Aluminum Casting (except Hydraulic Pump)

Custom 8 Channel 2.4Ghz Radio

Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)

Optimized Steel Hydraulic System

Scale Driving Figure Ready (Not included)

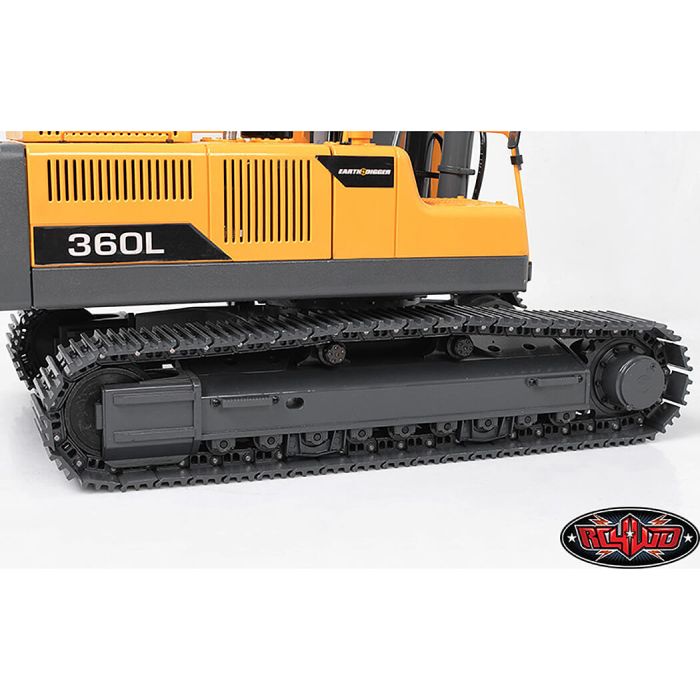

Alloy Zinc Molded Tracks (50mm Width)

Efficient Undercarriage

Reliable Hydraulic Valve and Adjustable Pump

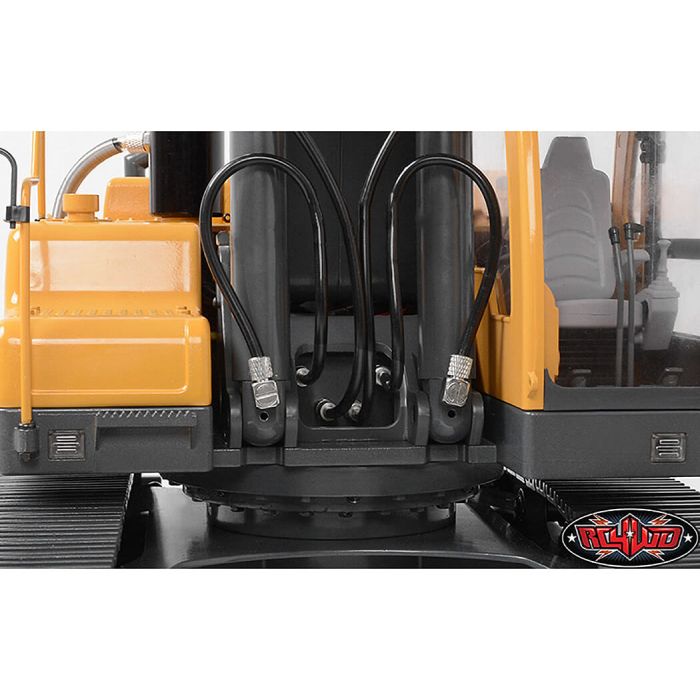

Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)

Undercarriage May Rotate 360 Degrees (Endless)

Powder-coated in Yellow and Grey

Massive Brushless System (Including driving and turning)

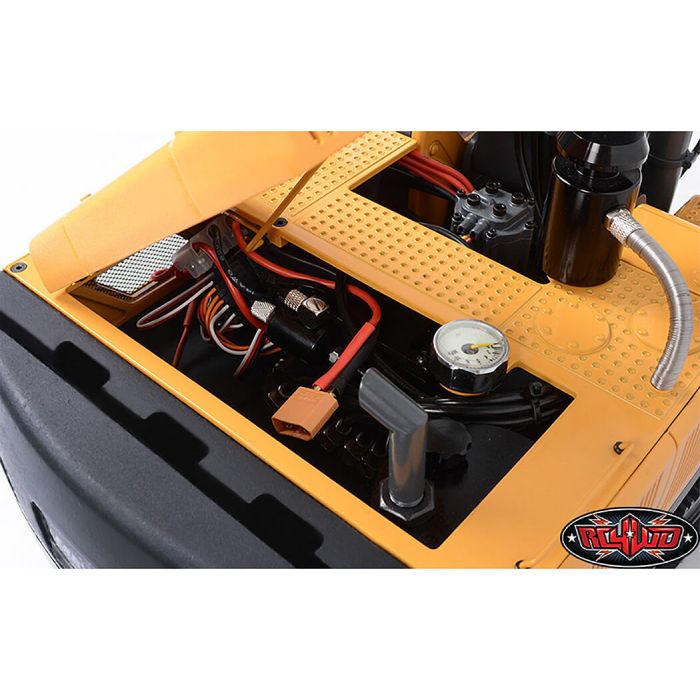

Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC

270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm

XT60 Power Plug Female

Run Time: 20 Minutes based on 4200mAh, 11.1V Battery

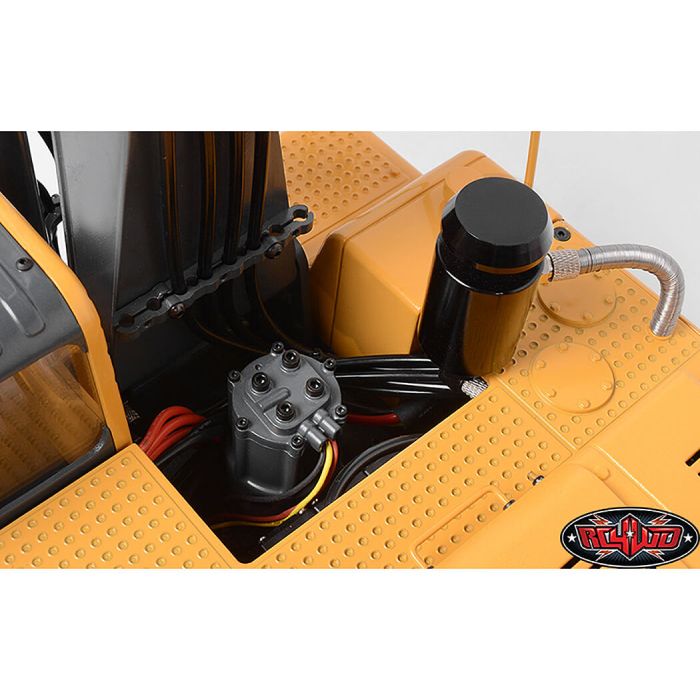

Steel Machined Oil Pump (60mm x 60mm x 93mm)

Digging Force: 15kg / 33lbs

Max Lifting Force: 70Kg / 154lbs

Driving Speed: 360 Meter per hour

Lipo Cutoff

Specifications

Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
Operating Oil Pressure: 2.5Mpa

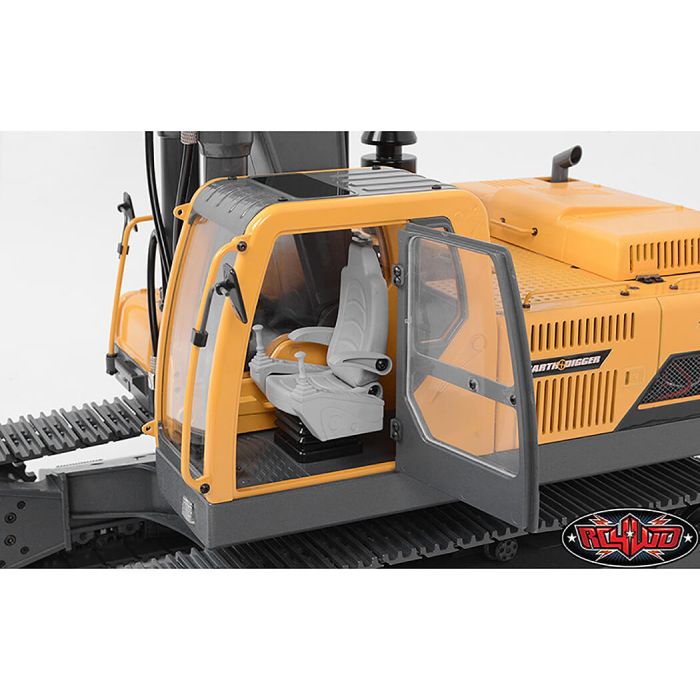

Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs

What's Included

1x 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)

Required To Complete

Supply Voltage: 12V, XT60 Connector, We recommend=3S, 25C LiPo Battery.

Compatible Battery Charger

8 x AA Batteries for Radio

Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

Battery Size should be within 160x51x73MM(LxWxH).

Must turn on the transmitter before starting the ESC.

ESC Supports XT60 Connector

This unit doesn't have a low voltage cut off. You will want to purchase a LiPo Battery Low Voltage Alarm to protect your battery. This is a common item in RC and should be available at most major online hobby shops.

While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Part Number	VV-JD00016
Manufacturer	RC4WD

RC4WD 1/14 Scale RTR Earth Digger 360l Hydraulic Excavator
