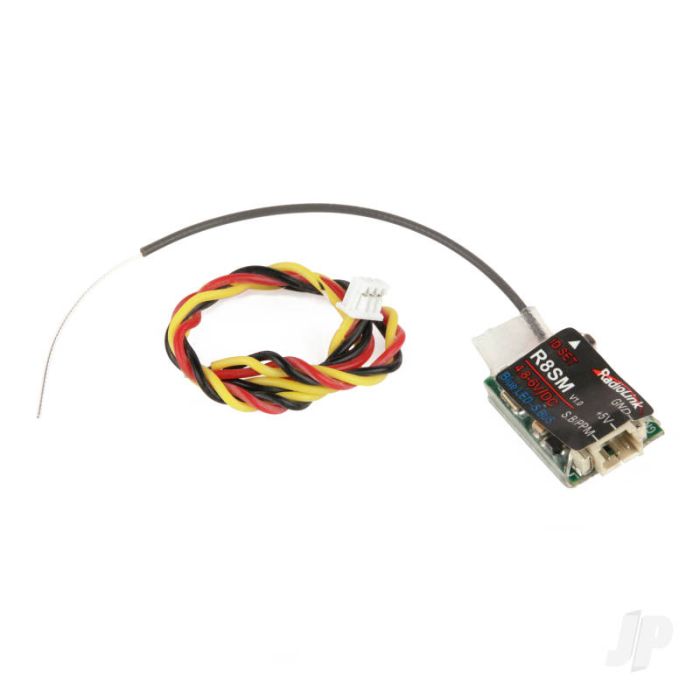

RadioLink R8SM 2.4GHz 8-Channel S-Bus / PPM Receiver

The RadioLink R8SM (Part No: RLKR081008) is an ultra-miniature 8-channel receiver designed for space-constrained builds like micro-racing drones, gliders, and small fixed-wing aircraft. At just 2g, it provides a full 2km control range and utilizes FHSS frequency-hopping technology to maintain a stable connection in environments with high radio interference.

Key Features:

• Ultra-Compact Design: Measuring only 18mm x 13mm, it is small enough to fit inside almost any micro-drone frame or tight aircraft fuselage.
• Long-Range Performance: Offers a stable control distance of up to 2000 meters (1.24 miles) in the air, matching the performance of much larger receivers.
• Dual Signal Modes: Supports both S-Bus and PPM protocols, allowing for a single-wire connection to modern flight controllers.
• Robust Anti-Interference: Employs 67-channel pseudo-random frequency hopping (FHSS) to ensure the signal remains locked even when other 2.4GHz systems are operating nearby.
• High Precision: Features a resolution of 4096, providing 0.25µs per section for smooth and responsive control surface movements.
• Broad Compatibility: Works natively with RadioLink T8S and T8FB transmitters and is compatible with mainstream flight controllers like Pixhawk, APM, F4, and F7.

Technical Specifications:

Binding & Mode Selection:

The R8SM features a single LED to indicate its working mode. Pro-Tip: To switch between S-Bus and PPM, quickly press the ID SET button on the side of the receiver twice within one second. A Blue/Purple LED indicates S-Bus mode, while a Red LED indicates PPM mode. For binding, hold the ID SET button for more than one second until the LED flashes, then turn on your transmitter to complete the process.

Installation Note: Due to its tiny size, the R8SM can be sensitive to heat. Avoid mounting it directly on top of high-power Video Transmitters (VTx) or ESCs. Using a small piece of double-sided foam tape will help provide both vibration dampening and a small thermal air gap.
