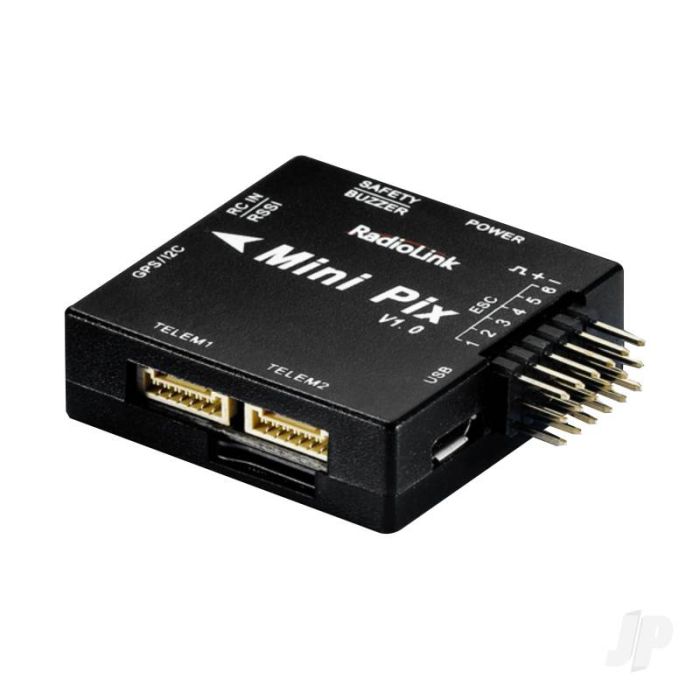

RadioLink Mini Pixhawk Flight Controller

The RadioLink Mini Pixhawk Flight Controller (Part No: RLKA001004) brings the power of ArduPilot and PX4 to the world of micro-UAVs and weight-sensitive builds. Measuring just 39mm x 39mm—the same footprint as a standard F4 flight controller—it packs the full functionality of its larger Pixhawk 2.4.8 predecessor into a 14g package. This unit is specifically designed for racing drones, fixed-wing aircraft, and micro-rovers where space is at a premium but advanced GPS and telemetry are still required.

Key Features:

• Full Pixhawk Functionality: Despite the size, it supports identical flight modes to the full-sized Pixhawk, including Loiter, Return-to-Launch (RTL), and autonomous Waypoint Navigation.
• Advanced Sensor Suite: Equipped with an MPU6500 6-axis gyro, QMC5883L compass, and LPS22HB high-precision barometer for accurate altitude hold and position stability.
• Software Vibration Dampening: Features proprietary RadioLink algorithms that filter out high-frequency motor noise, allowing the sensors to maintain accuracy without the need for bulky mechanical dampening mounts.
• Closed Shell Design: The fully enclosed casing protects the barometer from "air wake" and prop-wash interference, significantly improving altitude hold performance during aggressive maneuvers.
• JST-GH Connectivity: Uses secure, vibration-resistant JST-GH connectors rather than standard pins, reducing the risk of mid-flight disconnects and ensuring a tidy wiring loom.
• Wide Voltage Input: Includes a power module that supports 2S to 12S LiPo input, making it compatible with everything from small quads to high-voltage industrial airframes.

Technical Specifications:

Setup Tip:

The Mini Pix uses specialized firmware. Pro-Tip: When using Mission Planner, ensure you download the RadioLink-specific version of the software from their official site. If you use the standard ArduPilot build, you may encounter issues with the internal compass driver. For micro-builds, pair this with the TS100 Mini GPS to keep your total navigation system weight under 40g.

Box Contents: Mini Pix Unit, Power Module (2-12S), Buzzer & Safety Switch Combo, I2C Expansion Board, and a full set of JST-GH connection cables.
