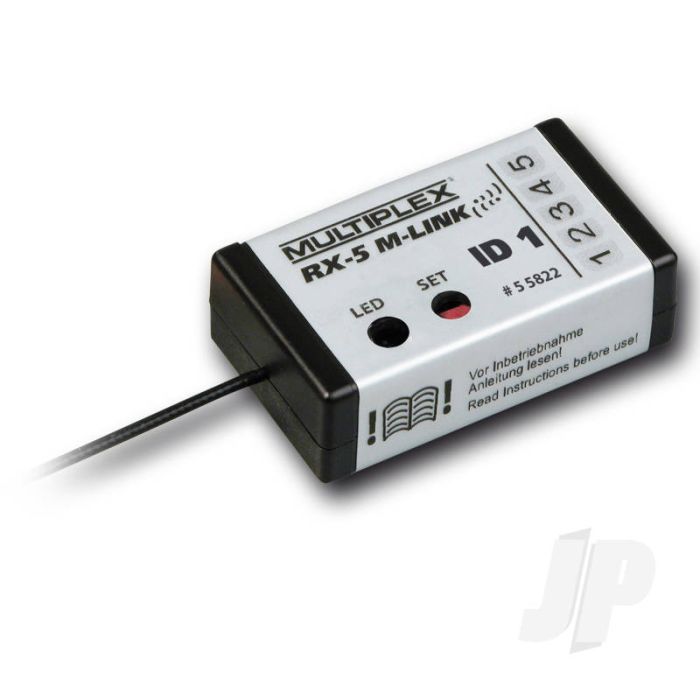

Multiplex Receiver RX-5 M-LINK ID FREE 2.4GHz 55822

Part Number: MPX55822

Availability: In stock - Dispatch Time 2-3 Working Days




Compact, low-cost five-channel 2.4 GHz M-LINK receivers with UNI connector system. The compact case and small size in conjunction with the in-line socket arrangement makes them a particularly good choice for the smaller model.

Typical applications:

  • - Model helicopters up to about 80 cm rotor diameter
  • - Electric and glow-powered model aircraft up to about 1.3 m wingspan
  • - Model gliders and electric gliders up to about 2 m wingspan
  • - RC model cars
  • - RC model boats

The model recognition system enables our SMART SX beginners' transmitter to switch automatically to the appropriate model memory in response to the receiver's ID. When you switch models, the model-specific settings (e.g. trims, servo direction, Dual Rates) stored in the SMART SX transmitter are always available automatically. This eliminates the need to check servo directions and adjust the trims, as required by typical simple beginners' transmitters.

The following receiver IDs are available:

  • ID1 (activates SMART SX model memory 1)
  • ID2 (activates SMART SX model memory 2 for EasyStar II)
  • ID3 (activates SMART SX model memory 3 for EasyGlider PRO)
  • ID5 (activates SMART SX model memory 5 for RAZZOR)
  • ID6 (activates SMART SX model memory 6 for FunCopter)
  • ID21 (activates SMART SX model memory 21)
  • ID22 (activates SMART SX model memory 22)

The model data sets can be overwritten or adjusted at the transmitter (SMART SX), allowing the receivers to be used in any model.

RX-5 ID receivers can also be operated with any other M-LINK radio control system without ID recognition, in which case their features are those of the RX-5 light M-LINK 2.4 GHz.

  • HOLD / FAIL-SAFE function
  • Integral button and LED for: Binding, FAIL-SAFE programming, RESET, operating status information
  • ID function for automatic model memory switching with SMART SX transmitter


Servo channel count: 5
Receive system: 2.4 GHz FHSS
Operating voltage: 3.5 V … 9.0 V
Power supply: 4 - 6 NiXX cells, 2S LiXX
Permissible operating temperature range: -20°C … +55°C
Dimensions (L x W x H): 34 x 19.5 x 11 mm
Weight: approx. 7 g

Key Features:

  • Channels - 5
  • Compact 5-channel 2.4 GHz M-LINK receivers with UNI connector system
  • Operating Voltage - 2.5-9v
  • Size - 34x19.5x11mm
  • System - 2.4GHz FHSS
  • The RX-5 receiver ID can link with any other M-LINK system
  • Weight – 7g
  • Details

    Additional Information

    Part Number MPX55822
    Manufacturer Multiplex
