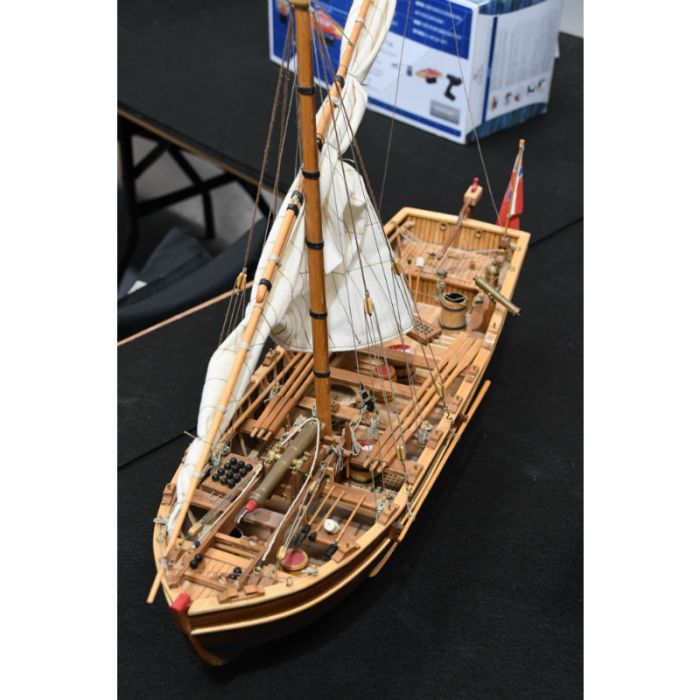

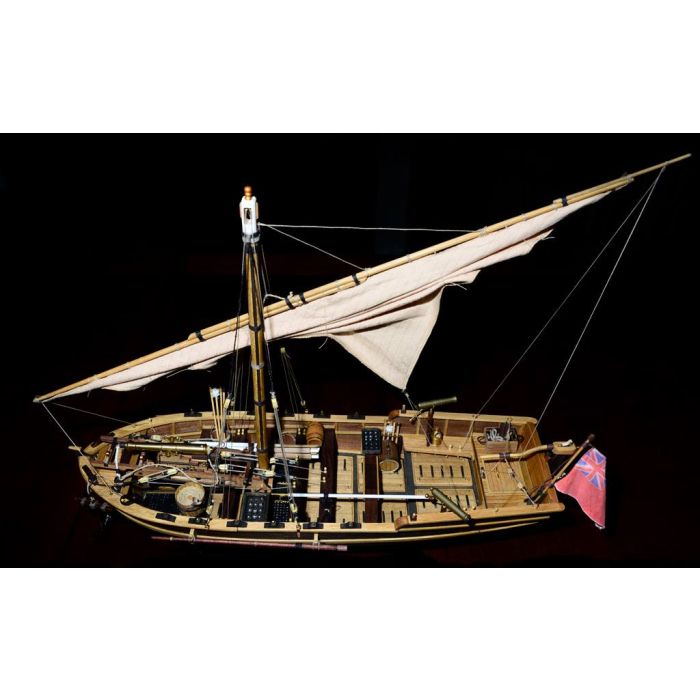

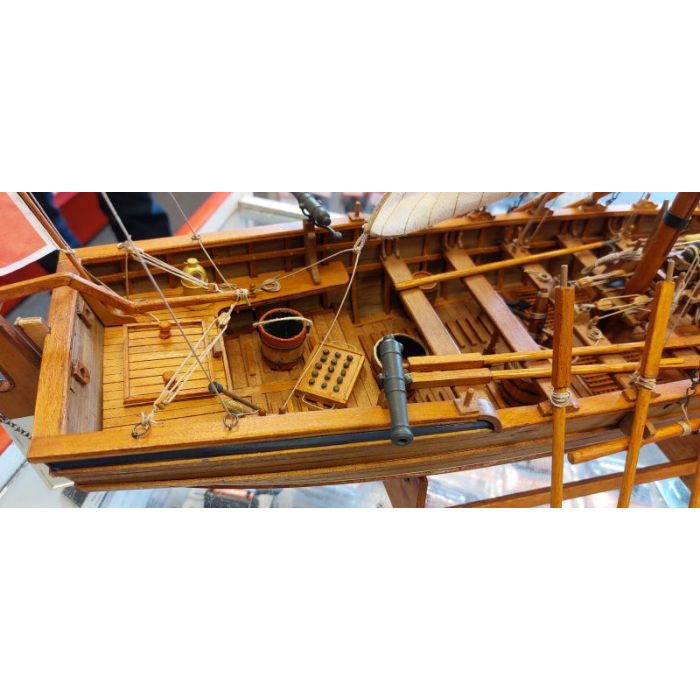

Mantua Panart Armed Pinnace "Lancia Armata" 1803 Wooden Ship Kit Scale 1:16

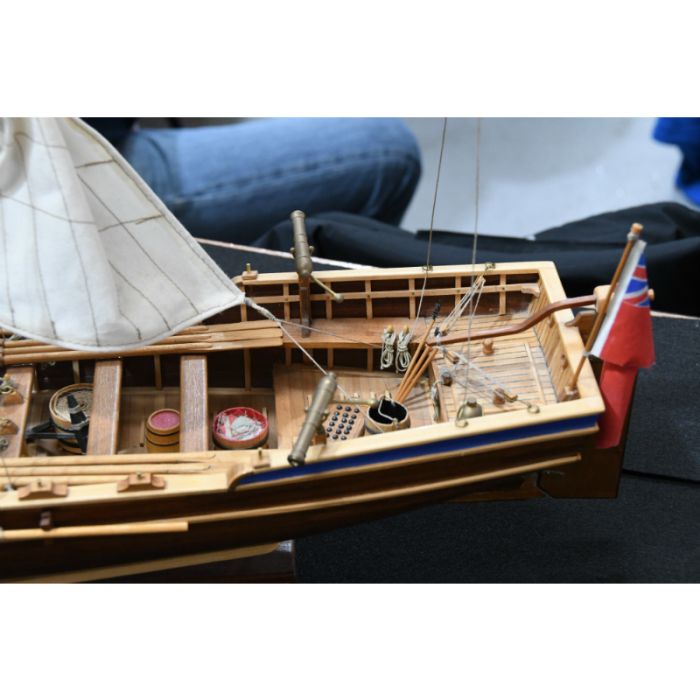

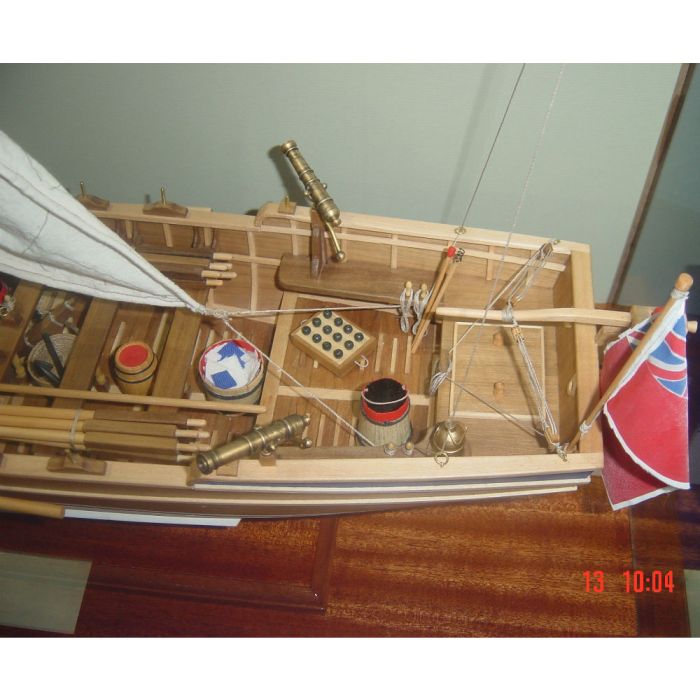

This model is an exact reproduction of a 10 metre long armed launch, which was used by different navies during the 19th century. These launches were armed with naval guns of different calibre and type; in the bow section a cannon or carronade was installed whilst in the stern two more light, small cannons were placed to be aimed by hand.

Usually, these boats were employed in coastal patrols or in escort services but, also demonstrated their wartime capacity in surprise actions attacking craft in difficulty or anchored or at roadstead. Due to their remarkable manoeuvrability, they were also employed in great numbers during landing actions, preceeding the main fleet which moved slower and was more vulnerable.

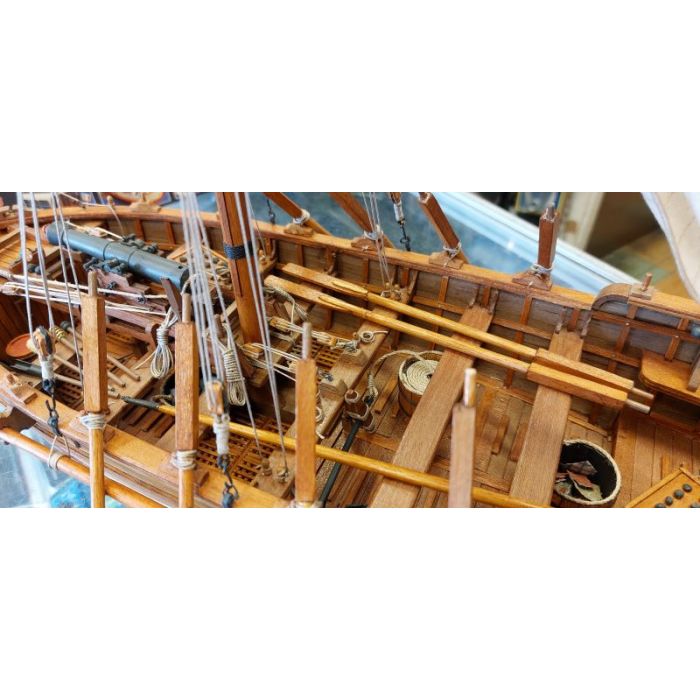

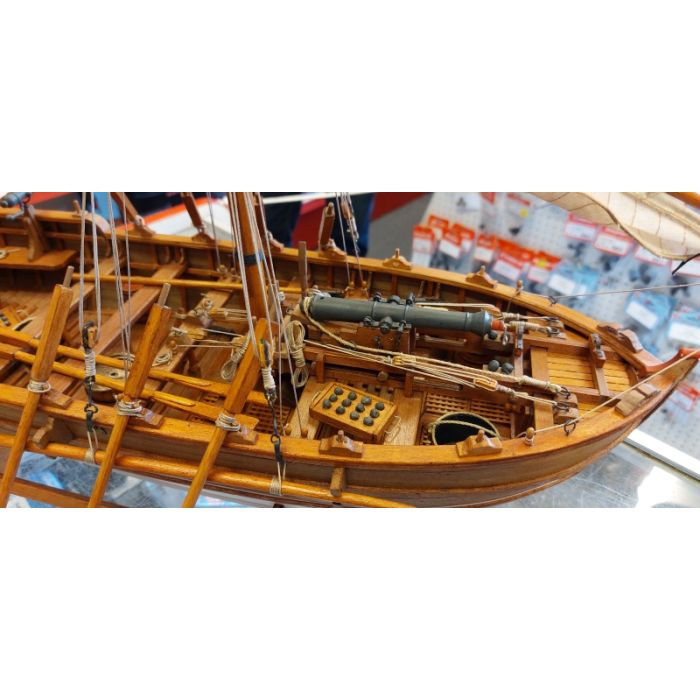

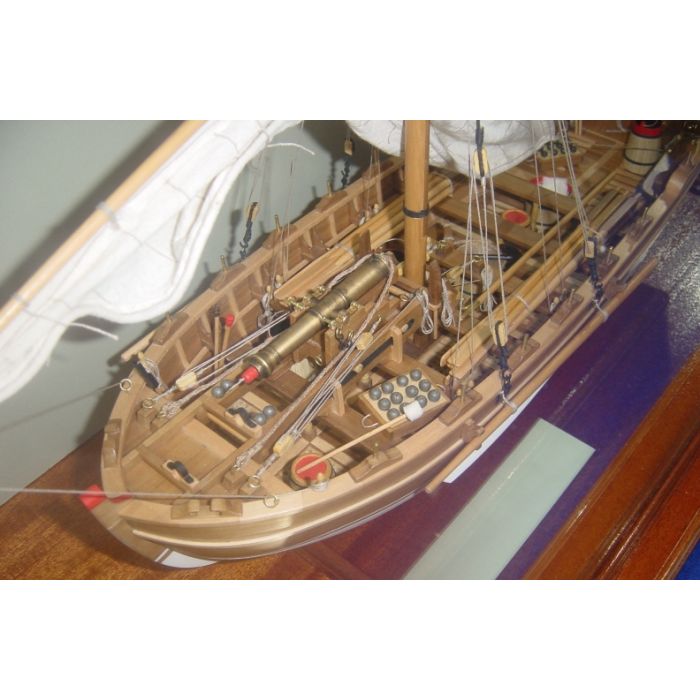

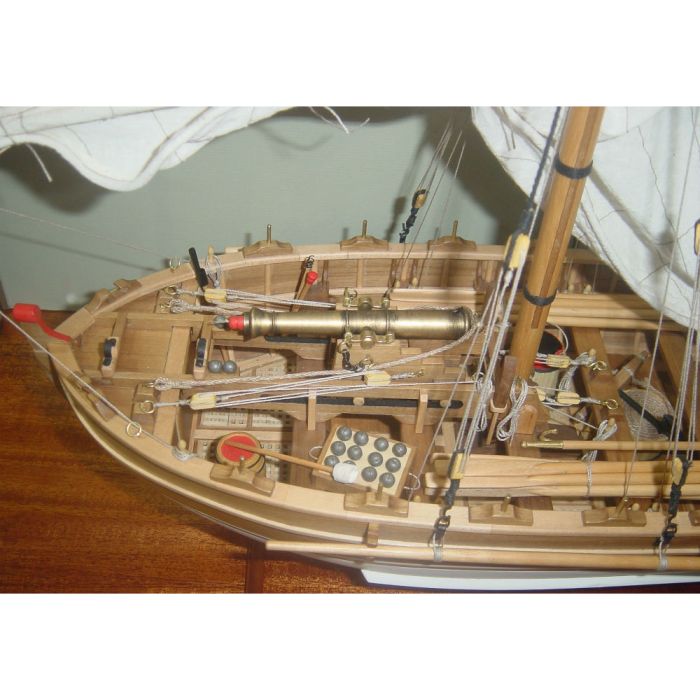

The bow cannon, placed on a wooden structure, attached to the first benches, slid back and forth, recoiling on two slits made on the two carrying guides and was manoeuvred by two forward and aft placed tackles. The marksman occupied himself to raise the cannon while the helmsman was responsible to align the bow at the target.

Mast and sail were lowered on the benches during these surprise actions and the oars were used to proceed in order to delay as long as possible the interception from the part of the enemy.

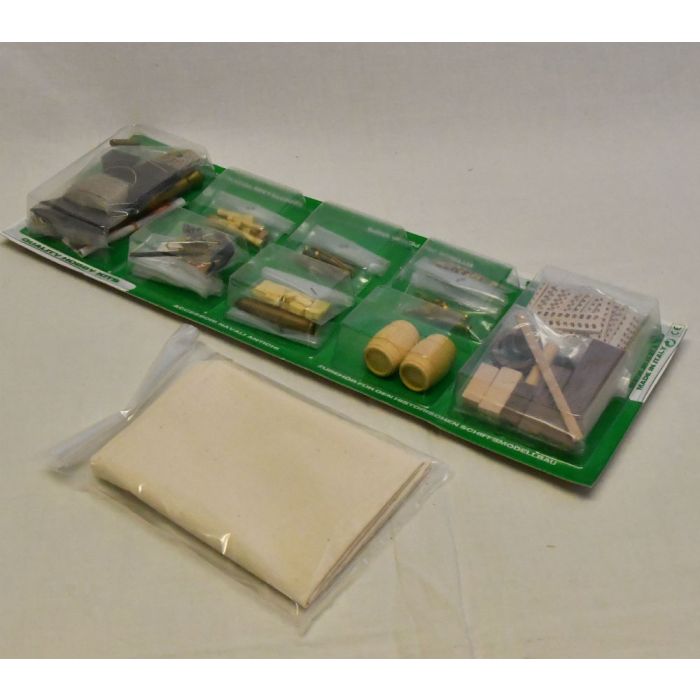

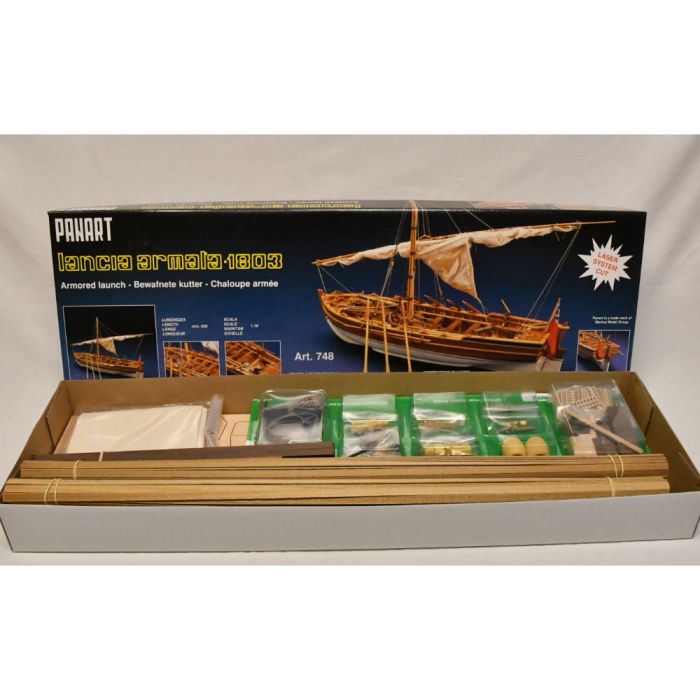

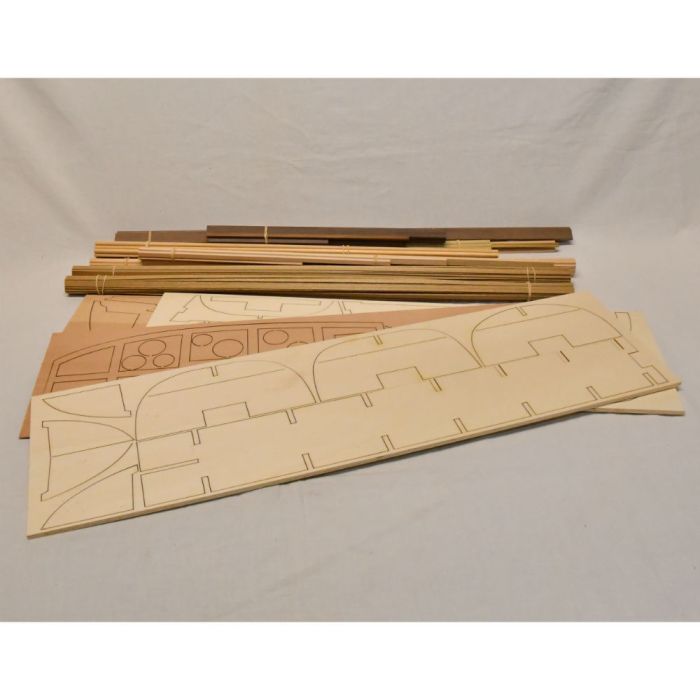

The Mantua Panart kit features the following: A triple plank on frame hull construction, building plans with general details, English instructions, walnut and lime planking, wooden masts and spars, brass and walnut fittings, Sailcloth, rigging cord and silk flag. All sheet ply sections are laser cut for accuracy.

Specification:

Scale 1:16

Length 620mm

Height: 457mm

Planking: Triple
