Ikonnik KA-6 Single Spring Return Kit

The Ikonnik KA-6 Single Spring Return Kit (Part No: KNNA1005) is a specialized hardware upgrade for the Ikonnik KA-6 6-channel aircraft transmitter. This kit is designed to convert a standard "ratchet" or "friction" gimbal (typically the throttle) into a self-centering spring-return gimbal. This is a common modification for hobbyists using their air radio for surface vehicles (like tanks or boats) or for specific drone/camera gimbal controls where a return-to-center throttle is preferred.

Key Features:

• Self-Centering Functionality: Adds the necessary tension and centering arm to pull the stick back to the exact middle position when released.
• Custom Feel: Allows pilots to move away from the traditional "stay-put" aircraft throttle, making the radio more versatile for multi-rotor or ground-based projects.
• Genuine Ikonnik Part: Precision-molded to match the internal geometry of the KA-6 gimbals, ensuring smooth movement without binding.

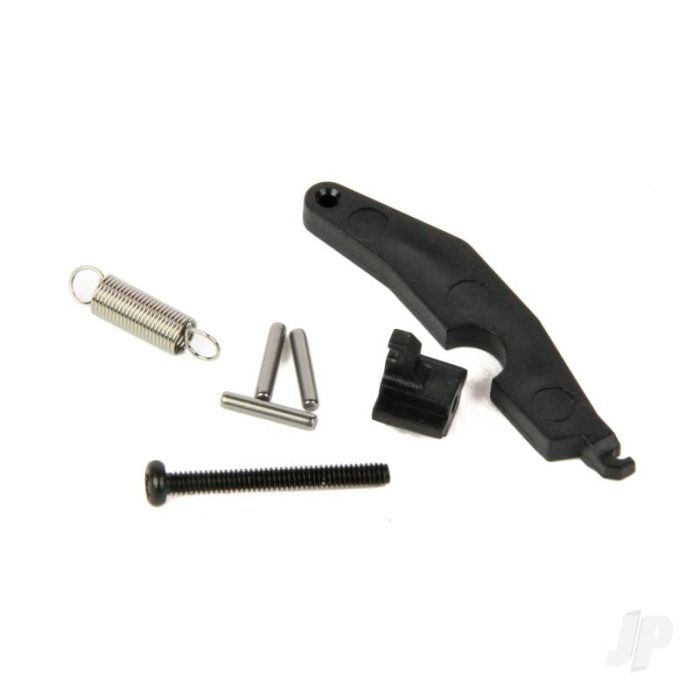

• Complete Hardware: Includes the spring, centering lever/arm, and required mounting screws for a single axis.

Technical Specifications:

Installation Overview:

To install the KNNA1005, you must open the transmitter case (ensure the batteries are removed first). You will need to locate the throttle gimbal and remove the metal friction strap or ratchet leaf. The centering arm from the kit snaps into the gimbal housing, and the spring provides the tension between the arm and the radio frame. Pro-Tip: Be careful not to over-stretch the spring during installation, as this can lead to an uneven "dead zone" at the center point.

Application Note: This kit is most popular for RC Tankers who want the left stick to control forward/reverse with a spring-to-neutral safety, or for FPV pilots who prefer "Altitude Hold" style throttle centering.
