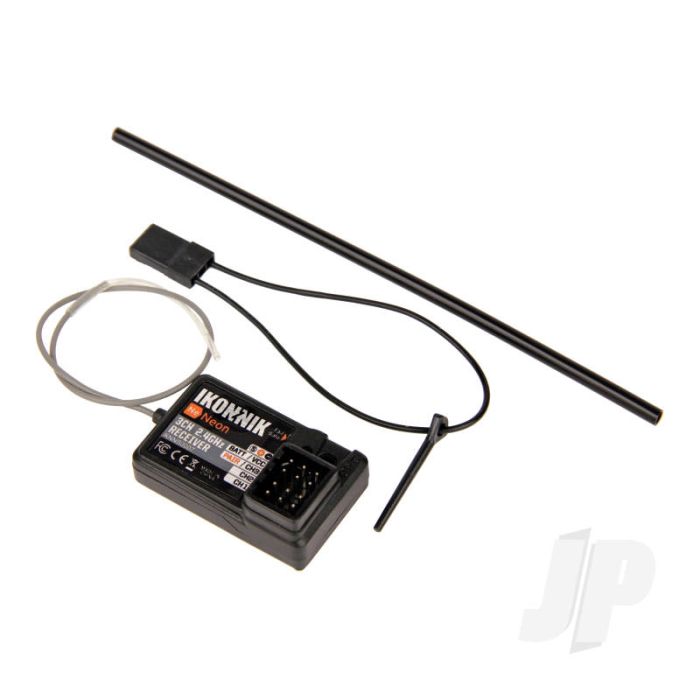

Ikonnik 3-Channel 2.4GHz Neon (Ne) Receiver (for 1:12 Scale)

The Ikonnik 3-Channel 2.4GHz Neon Receiver (Part No: KNNS0007) is a compact, lightweight receiver specifically optimized for 1/12 scale and other space-restricted RC vehicles. Operating on the Neon (Ne) 2.4GHz protocol, it is designed to provide a interference-free, stable link for beginner to intermediate drivers, commonly found in Helion and other hobby-grade "mini" platforms.

Key Features:

• Neon (Ne) Protocol: Utilizes the proprietary Neon 2.4GHz frequency-hopping spread spectrum technology, ensuring you can drive with others without worrying about frequency conflicts.
• Compact Footprint: Specifically engineered for 1/12 scale chassis where electronics real estate is limited. Its small size makes it easy to mount in tight tubs or under low-profile bodies.
• 3-Channel Output: Supports Steering (CH1), Throttle (CH2), and an auxiliary 3rd channel (CH3) for accessories like LED lights or a mechanical winch.
• Internal/Stubby Antenna: Features a simplified antenna design that is easier to route within small vehicles, reducing the risk of antenna damage during rollovers.
• Universal Plug Slots: Compatible with standard "JR/Hitec" style servo plugs used by almost all modern servos and ESCs.

Technical Specifications:

Binding Tip:

To bind the KNNS0007 to your Neon transmitter, ensure the receiver is powered on (the LED should be flashing). Press and hold the Bind button on the receiver while turning on the transmitter, or follow the specific "Link" sequence on your Neon radio. Once the LED turns solid, the link is established. Note: This receiver is not compatible with Ikonnik's "Krypton" (Kr) or "Xenon" (Xe) protocols; always ensure your transmitter specifically lists "Neon" compatibility.
