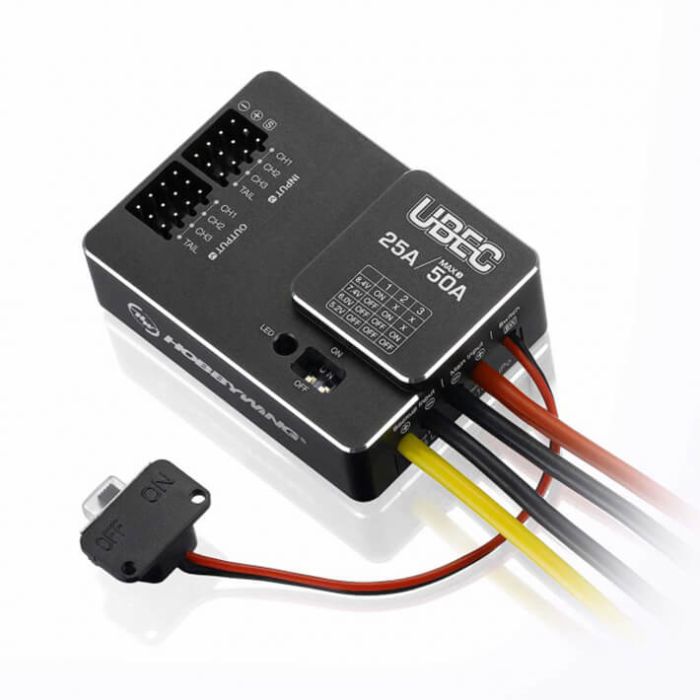

Hobbywing UBEC 25A HV 5.2V / 6.0V / 7.4V / 8.4V DC-DC Regulator

Hobbywing UBEC 25A HV 5.2V / 6.0V / 7.4V / 8.4V DC-DC Regulator

Part Number: HW30606000

Availability: On Order with Supplier

£64.99

Qty:

-OR-

Be the first to review this product

Description

Details

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from a 3-18S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and can provide a stable high current output of up to 25Amp. As the UBEC has such a powerful output capability's particularly applicable for large helicopters and fixed-wing aircraft amongst other applications.

Specification

Input Voltage: 9V-80V (3S-18S LiPo)

Output Voltage: 5.2V / 6.0V / 7.4V / 8.4V (adjustable)

Output Current (Cont./Peak): 25A/50A

Input Wires Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1

Backup Power Supply: Yellow-16AWG-150MM*1/Black-16AWG-150mm*1

Output Wires 3P Vertical Pin Header (60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included)

Input Connectors: No

Output Connectors: No

Size: 55x40.2x17.6mm (LxWxH)

Weight: 74g

Details

Additional Information

Part Number	HW30606000
Manufacturer	Hobbywing
