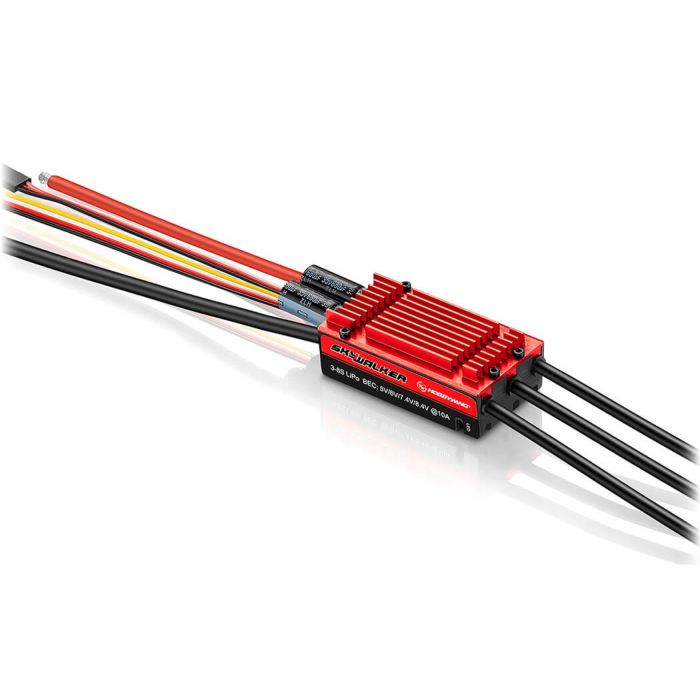

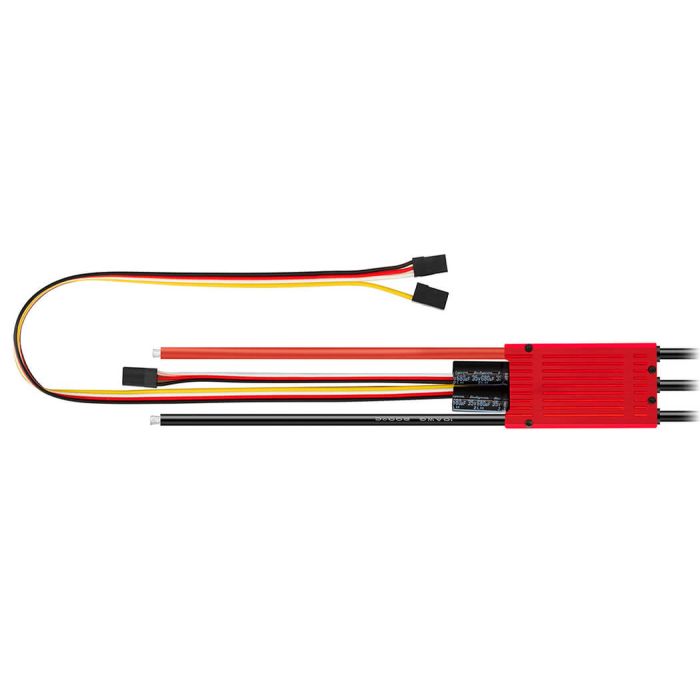

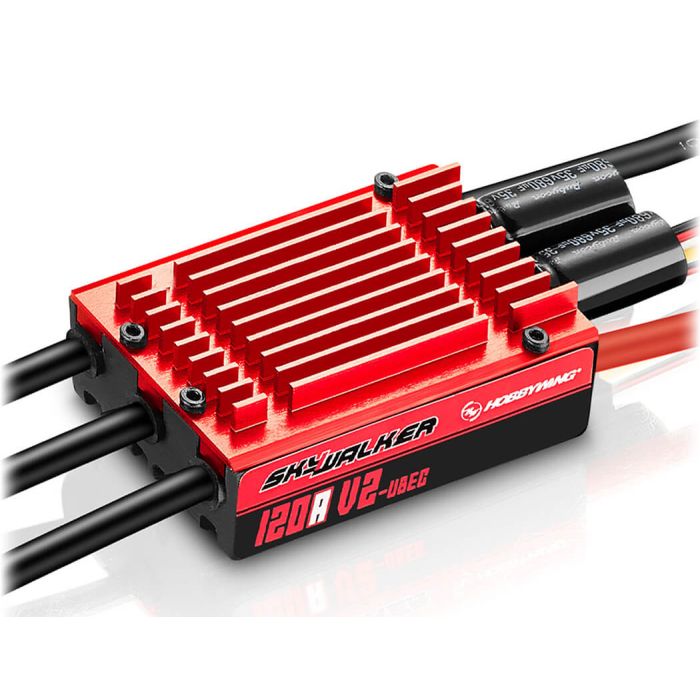

Hobbywing Skywalker 120A 8S V2 RC Aeroplane Brushless ESC

Features

Compatible with various brushless motors

High performance 32-bit ARM M0 microprocessor, running frequency of up to 120MHz

Equipped with DEO (Driving Efficiency Optimization) technology to improve throttle response and reduce controller temperature

Normal/Reverse brake modes (esp. reverse brake mode) can effectively reduce the plane's landing distance with the programmable braking modes

Various protections such as low voltage shutdown, overheat protection and throttle signal loss protection

Search mode can help users find the aircraft with alarm beeps if the aircraft falls into trouble

Easily programmable with the LED program box (HW30501003) or the transmitter

Specification

Brushed/Brushless: Brushless

High Voltage/Regular: Regular

Cont. Current: 120A

Peak Current: 150A up to 10 sec

Input Voltage: 3-8S LiPo

BEC Output: 5V / 6V / 7.4V / 8.4V Switch Mode BEC

BEC Current (Cont./Peak): 10A/30A

Input Wires: Red 10AWG 150MM*1 / Black 10AWG 150MM*1

Output Wires: Black 12AWG 100MM*3

Input Connectors: No

Output Connectors: 4.0 Gold Connectors (Female)

ESC Programming: Transmitter/LED Program Box only

Firmware Upgrade: Not Supported

Dimensions: 85x35x22mm

Weight: 117g

Part Number	HW30205450
Manufacturer	Hobbywing
