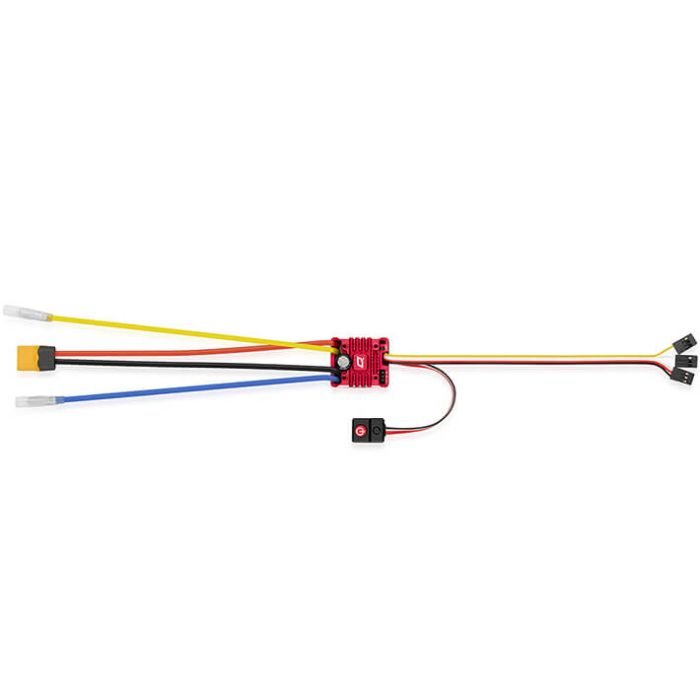

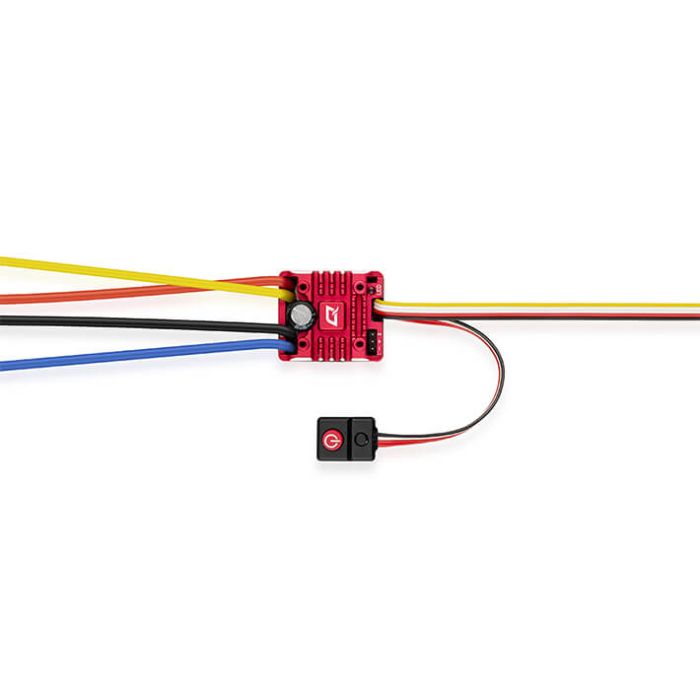

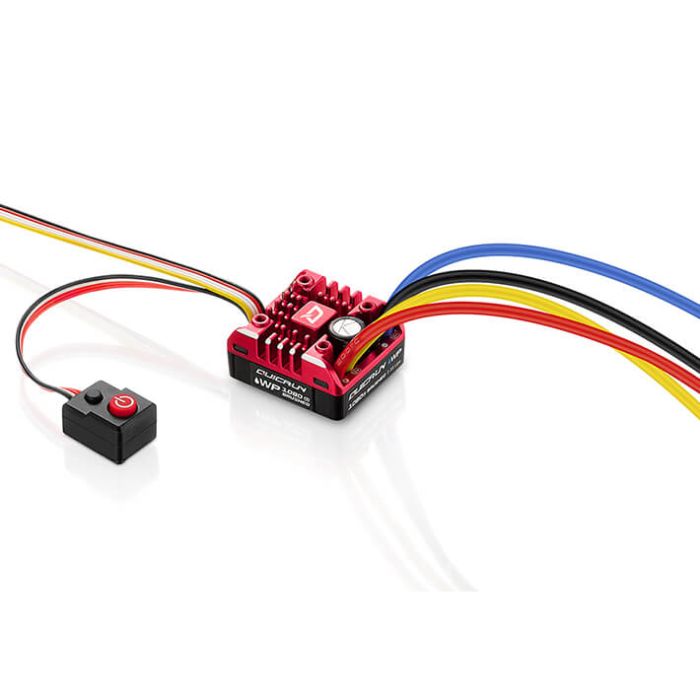

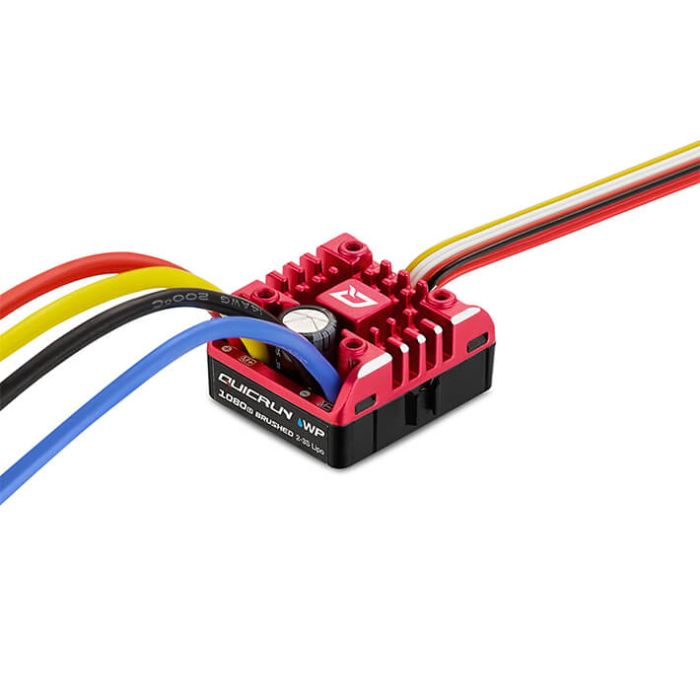

Hobbywing Quicrun WP 1080 G2 Brushed Speed Control RC Rock Crawler ESC

Part Number: HW30120202

Availability: In stock - Dispatch Time 1-2 Working Days

£49.99

Description

Details

The first "Real Car Mode" ESC from Hobbywing is an exciting release and features four running modes and a real time drag break adjustment.

In the Real Car mode the direction of the motor is switchable in real time by using a spare channel on the transmitter, you get the normal operation of pulling the trigger for "forward" and pushing the trigger for "brake" and then with the reverse enabled pulling the trigger will give you "reverse". This new feature will give you a unique RC experience unlike any other! (Requires a spare channel on the receiver).

In addition to the switchable Real Car mode the drag brake force is also adjustable in real time using an AUX channel on the handset.

FEATURES

  • Fully IP67 waterproof design for all conditions.
  • Highly reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust and etc.
  • Tuneable drag brake and drag brake rate for different vehicles, tracks and control feel.
  • Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
  • Real time adjustable drag brake force using an AUX channel of a transmitter and the ability to switch the drag brake force anytime and anywhere on demand.
  • Multiple protections: low-voltage cut-off protection, thermal protection and throttle signal loss protection.
  • Separate programming port to easily connect the LED program card to the ESC.
  • Single-button ESC programming and factory reset.
  • ESC programming via Hobbywing LED program card.
  • SPECIFICATIONS

  • Application: 1/10th Rock Crawler
  • Motor Type: Brushed Motor (540 / 555 size motors)
  • Cont./Peak Current: 80A/400A
  • Input Voltage: 2-3S LiPo/5-9S Cell NiMH
  • BEC Output: 6V / 7.4V / 8.4V @ 4A (Switch-mode)
  • Programming device: LED program box
  • Size: 37.2 x 31.9 x 18.4mm
  • Weight (w/ wires): 70.2g
  • Details

    Additional Information

    Part Number HW30120202
    Manufacturer Hobbywing
