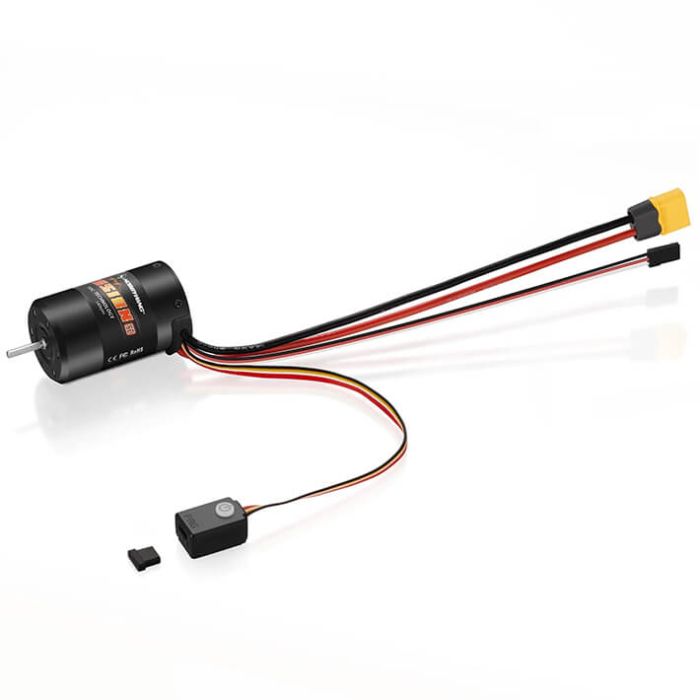

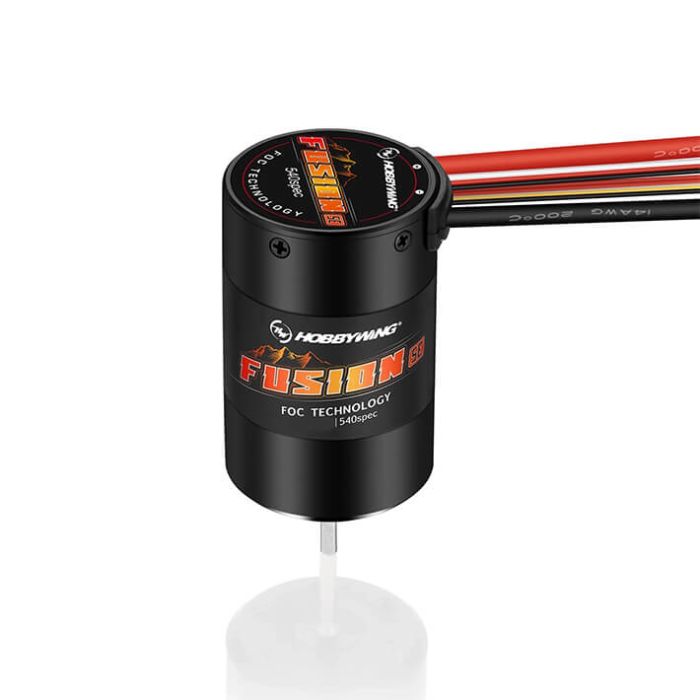

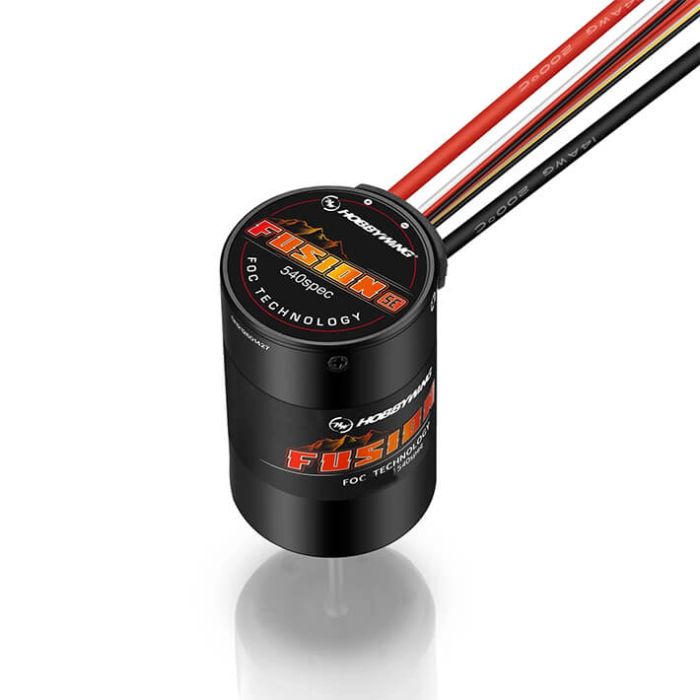

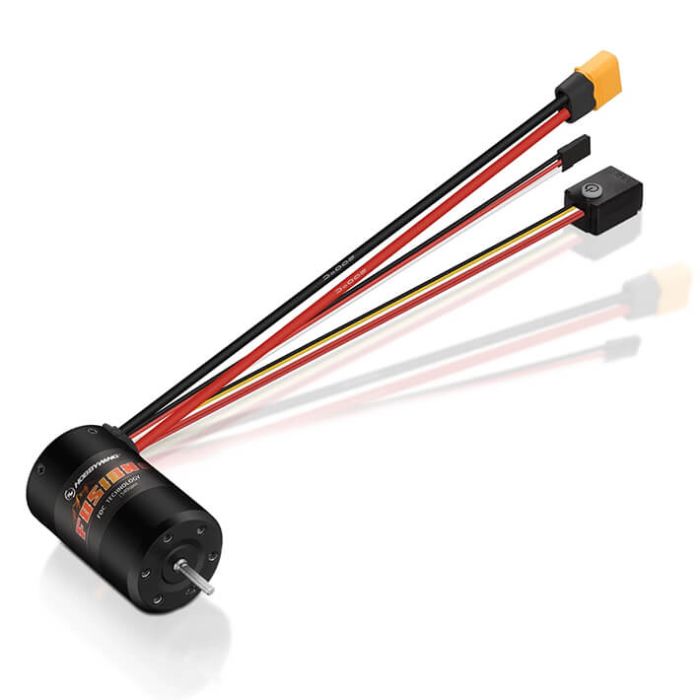

Hobbywing Quicrun Fusion SE 1800kv Brushless 1/10 RC Car 2in1 Motor ESC Combo

Hobbywing Quicrun Fusion SE 1800kv Brushless 1/10 RC Car 2in1 Motor ESC Combo

Part Number: HW30404317

Availability: In stock - Dispatch Time 1-2 Working Days

£90.49

Qty:

-OR-

Be the first to review this product

Description

Details

SPECIFICATIONS

Type

Scale: 1/10th

Brushed/Brushless: BL

Sensored/Sensorless: SD

Waterproof: Waterproof

Specifications

Cont./Peak Current: 40A

Input Voltage: 2-3S LiPo/6-9 Cell NiMH

BEC Output: 6V/7.4V@4A 6A peak

Motor KV: 1800KV

Diameter/Length of Motor: 36mm / 58.1mm

Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm

Motor Poles:4

Wires & Connectors

Input Wires: Red-14AWG-200mm*1 /' Black-14AWG-200mm*1

Input Connectors: XT60

(Note: All the wire length above is the original length, not the length you see from the outside.)

ESC Programming Via

SET Button on ESC: Not Supported

LED Program Box: Supported

LCD Program Box: Not Supported

OTA Programmer: Not Supported

Program Port: Independent programming interface (Switch Position)

Firmware

Firmware Upgrade: Not Supported

Size & Weight

Size: 36 x 58.1mm

Weight: 201g (Including Wires and Connectors)

Applications

Vehicles: 1/10th Rock Crawler

Details

Additional Information

Part Number	HW30404317
Manufacturer	Hobbywing
