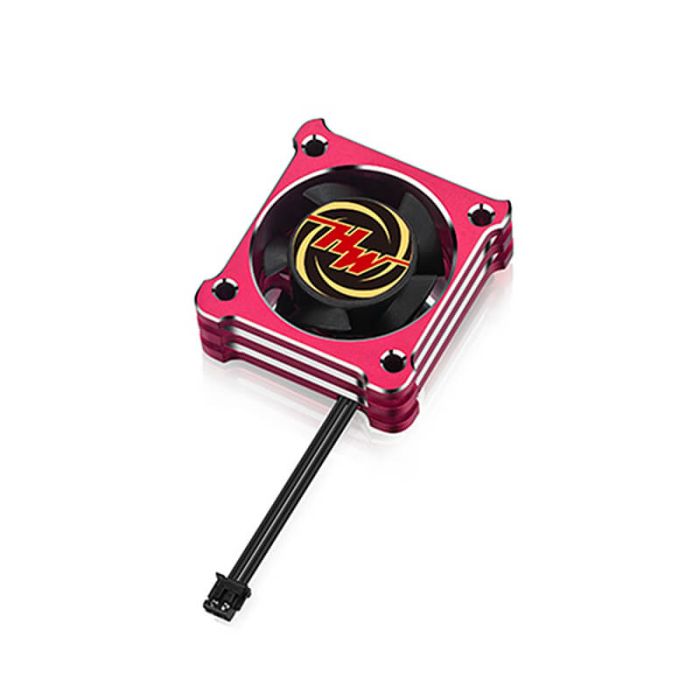

Hobbywing Fan 3010Bh 6v 20,000 RPM 0.23a Red A (XR10d Red)

The Hobbywing Fan 3010BH (Red A) (Part No: HW30860104) is the specialized high-speed cooling solution for the XeRun XD10 Pro drift ESC. Featuring a striking red anodized aluminum frame, this 30mm fan is designed to provide maximum heat dissipation for drift builds where visual style is as important as thermal performance. Operating at a high-pitched 20,000 RPM, it ensures the ESC remains stable even during continuous, low-airflow maneuvers.

Key Features:

• High-RPM Performance: Spinning at 20,000 RPM, it moves a significant volume of air despite its compact 10mm thickness, essential for keeping FETs cool during high-timing drift runs.
• Red Anodized Metal Frame: The "Red A" variant features a structural aluminum housing that is both durable and aesthetically matched to "Red Edition" drift electronics and chassis.
• ZH-2Y Connector: Equipped with a small-footprint ZH-2Y connector, allowing it to plug directly into the dedicated fan port on the XeRun XD10 and newer XR10 series ESCs.
• Ball Bearing Reliability: Unlike cheap sleeve-bearing fans, the 3010BH uses a high-quality ball bearing system to handle the vibration and lateral G-forces of aggressive drifting.
• Efficient Power Draw: Consumes only 0.23A at 6V, ensuring minimal impact on your system's total BEC capacity.

Technical Specifications:

Pro-Level Setup Tip:

The Red A 3010BH is technically "non-waterproof" due to its high-speed open motor design. While the XD10 ESC itself is drift-spec, avoid driving through puddles or in damp conditions, as moisture can cause the fan motor to short or the bearings to seize. If you are converting this fan for use on a motor heatsink, ensure you have a ZH-to-JR adapter if your receiver uses standard 3-pin servo ports.
