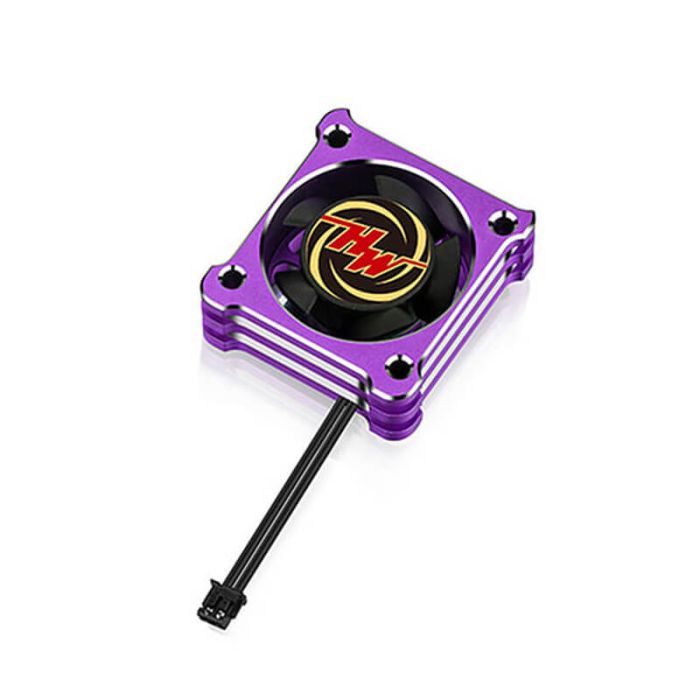

Hobbywing Fan 3010Bh 6v 20,000 RPM 0.23a Purple A (XR10d Purple)

The Hobbywing Fan 3010BH (Purple A) (Part No: HW30860106) is a high-performance, aesthetically striking cooling fan designed primarily for the XeRun XD10 Pro drift ESC. Featuring a vibrant purple anodized metal frame, this fan is part of the "BH" high-speed series, delivering a massive 20,000 RPM at 6V to maintain optimal temperatures during long, high-torque tandem drift sessions where airflow is often restricted by scale bodies.

Key Features:

• High-Velocity Cooling: Rated at 20,000 RPM, this fan provides intense airflow to combat heat soak in sensitive drift electronics, ensuring consistent FET performance and timing stability.
• Purple Anodized Metal Frame: The "Variant A" designation indicates a structural metal frame finished in purple, designed to match "Purple Edition" drift chassis components and the XD10 Pro's signature colorway.
• Optimized for 6V: Specifically tuned for standard BEC voltages (6.0V), pulling a modest 0.23A to ensure it doesn't overdraw power from your receiver or internal ESC BEC.
• ZH-2Y Connector: Features the ultra-compact ZH-2Y connector, making it a direct plug-and-play replacement for the fan port on modern XeRun and specialized drift ESCs.
• Dual-Ball Bearing Design: Engineered for high-speed durability, the internal bearings are designed to survive the sustained high RPMs without the "rattle" or failure common in cheaper sleeve-bearing fans.

Technical Specifications:

Style & Setup Tip:

The 3010BH Purple is the perfect finishing touch for a color-matched drift build. Because it uses the ZH-2Y connector, it is significantly smaller than a standard JR/Universal servo plug. If you are trying to mount this on a motor heatsink or an older ESC that uses standard receiver pins, you will need a ZH to JR adapter cable. To maximize its lifespan, avoid using it in excessively dusty environments without a mesh filter, as the high RPM can pull fine particles into the motor hub.
