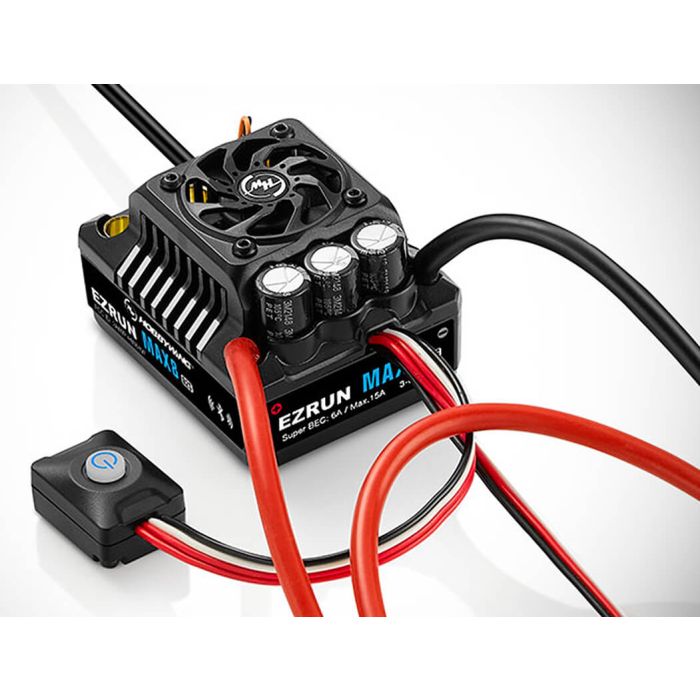

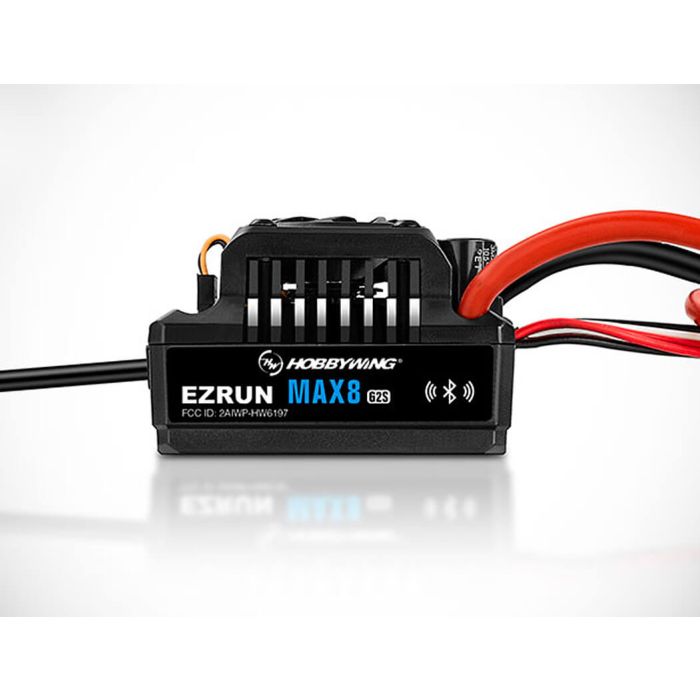

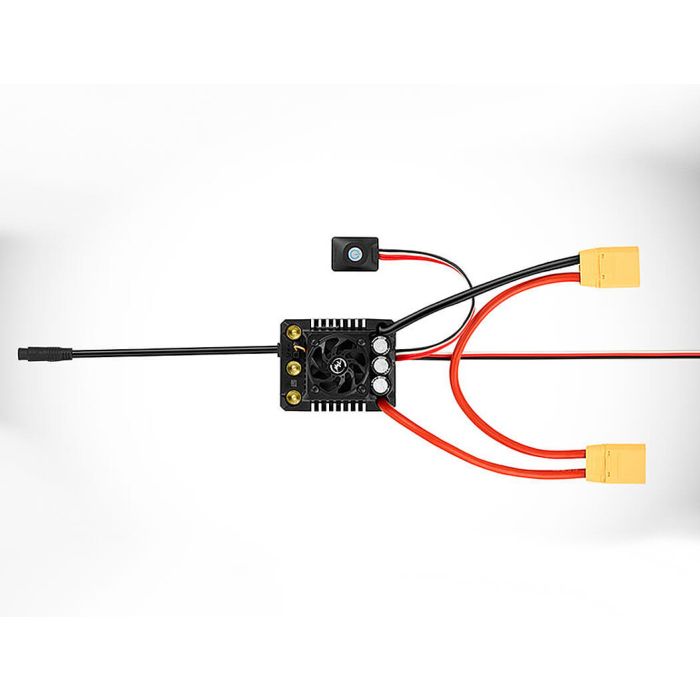

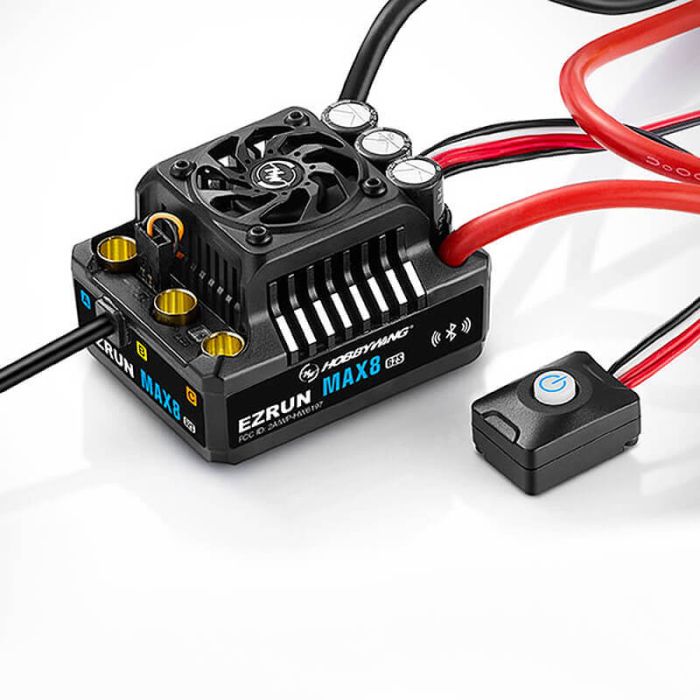

Hobbywing EZRun Max8 G2S Speed Controller

The Hobbywing EzRun MAX8 G2S (Part No. 30103205) is a high-performance, sensored brushless electronic speed controller designed specifically for 1/8 scale on-road and off-road vehicles. This "S" version of the MAX8 G2 series features integrated Bluetooth, allowing for seamless programming and real-time data logging directly via your smartphone.

Built to withstand extreme conditions, the MAX8 G2S delivers smooth, linear power while maintaining industry-leading reliability through its intelligent hardware design.

Features

Built-in Bluetooth: Eliminate the need for external programmers; adjust settings, perform firmware updates, and view real-time telemetry (RPM, voltage, temperature) through the HW Link V2 mobile app.

Extreme Power: Rated at 160A continuous current, capable of handling 3S to 6S LiPo power systems for high-speed runs and heavy monster truck applications.

Intelligent Freewheeling: Advanced hardware reduces operating temperatures by up to 25°C compared to previous generations, improving efficiency and extending run times.

All-Weather Protection: Rated to IP67 standards, providing excellent waterproof and dust-proof performance for driving in mud, snow, and rain.

High-Output BEC: Features a built-in "Super BEC" with an adjustable output of 6V, 7.4V, or 8.4V at 6A continuous, ensuring even the most power-hungry high-voltage servos operate at peak performance.

Turbo Timing: Supports up to 32 degrees of Turbo Timing, providing an instant 25% boost in RPM when paired with matching Hobbywing motors.

Specifications

Continuous / Peak Current: 160A / 1050A

Input Voltage: 3–6S LiPo

Motor Type: Sensored and Sensorless Brushless

BEC Output: 6V / 7.4V / 8.4V (Adjustable)

Dimensions: 60mm x 48mm x 40.5mm

Weight: 192g (including wires)

Connectors: XT90 Input / 6.5mm Female Gold Output

Part Number	HW30103205
Manufacturer	Hobbywing

Hobbywing EZRun Max8 G2S Speed Controller
