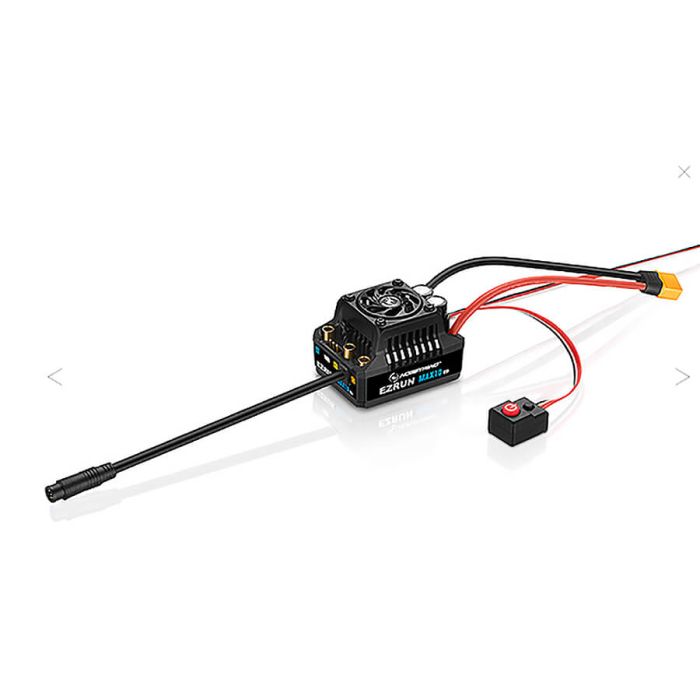

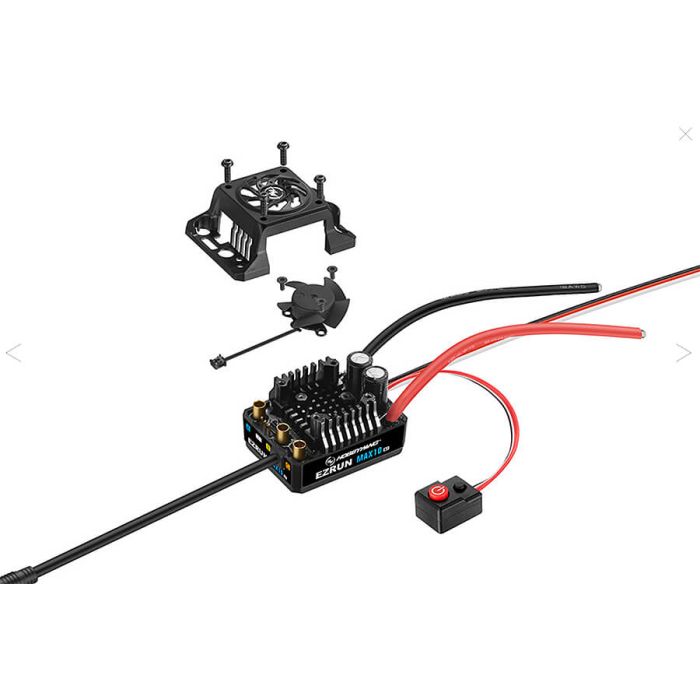

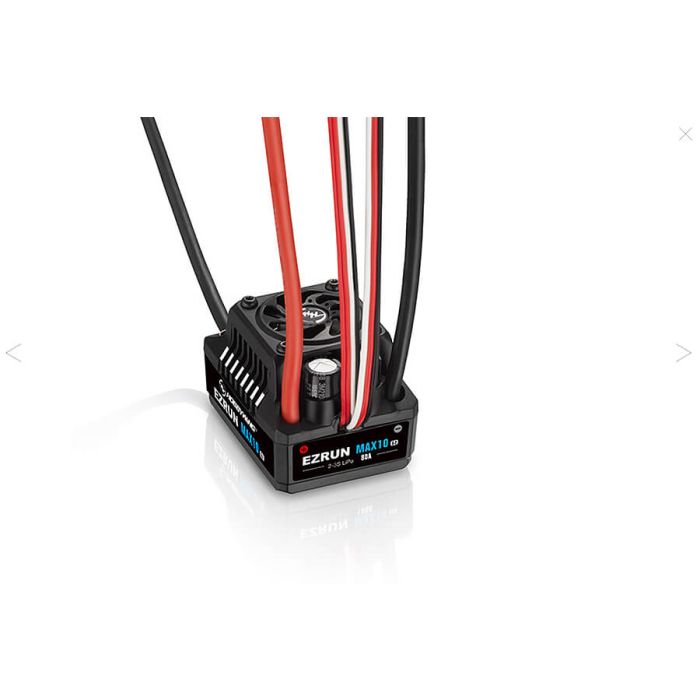

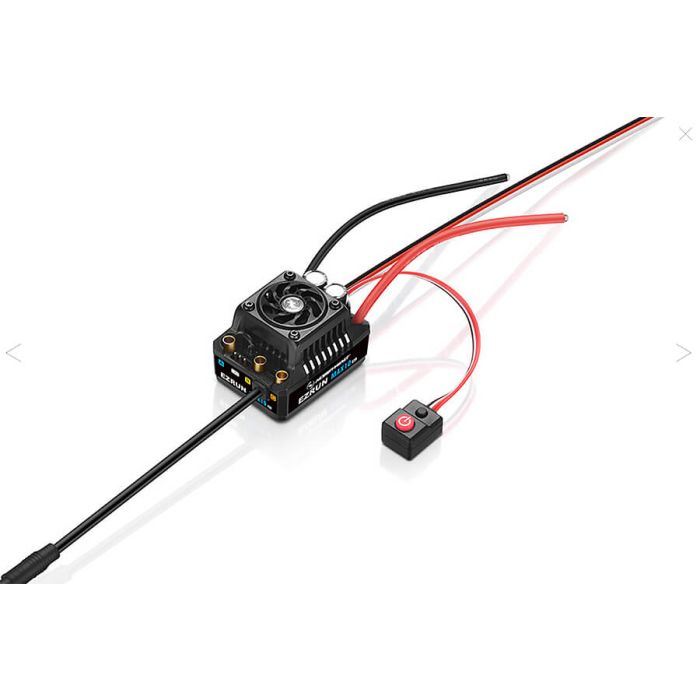

Hobbywing Ezrun Max10 G2 140A Brushless Speed Control 1/10 RC Car ESC

Hobbywing Ezrun Max10 G2 140A Brushless Speed Control 1/10 RC Car ESC

Part Number: HW30102603

Availability: In stock - Dispatch Time 1-2 Working Days

£79.99

Qty:

-OR-

Be the first to review this product

Description

Details

Specification

Scale: 1/10th

Brushed/Brushless: BL

Sensored/Sensorless: SD

Waterproof: Waterproof

Specifications

Cont./Peak Current: 140A/880A

Input Voltage: 2-4S LiPo

BEC Output: 6/7.4V, 5A

Wires & Connectors

Input Wires: Red-12AWG*1 Black-12AWG-150mm*1

Output Wires:

Input Connectors: XT60

Output Connectors: 4.0mm Gold (Female)

Fan

Size: 30x30x10mm

Output Wires: 5-7.4V

Input Connectors: Powered by BEC

Esc Programming Via

SET Button on ESC: No

LED Program Box: Supported

LCD Program Box: Supported (G2)

OTA Programmer: Supported

Programming Port: Separate

Firmware

Firmware Upgrade: Supported

Size & Weight

Size: 53mm*39.5mm*37.2mm

Weight: 120g(w/Wires)

Applications

Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th Short Course Truck, Truck and Monster Truck

KV Rating / T Count: With 3S LiPo: KV<4000 3665 Size Motor, With 4S LiPo: KV<2600 4268 Size Motor

Details

Additional Information

Part Number	HW30102603
Manufacturer	Hobbywing
