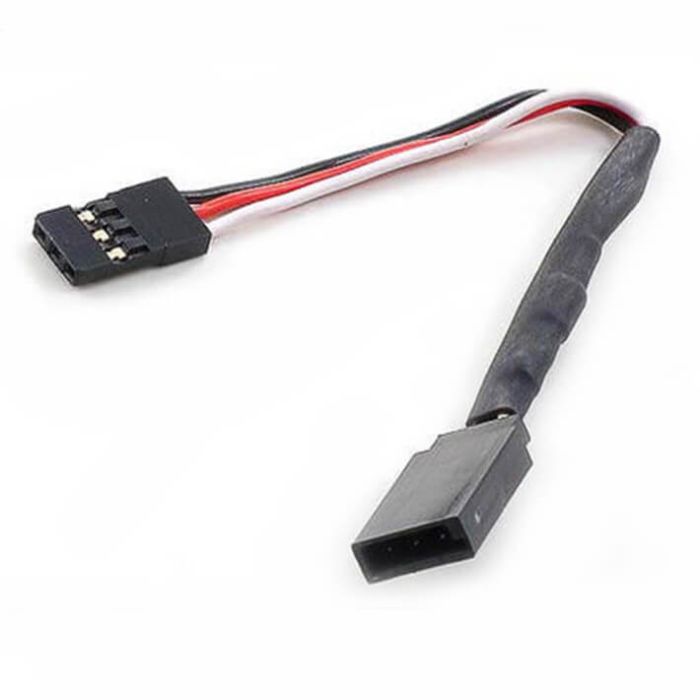

Hobbywing 6v To 5.3v Regulator

The Hobbywing 6V to 5.3V Regulator (Part No: HW86060050) is a compact, inline step-down module designed to protect sensitive RC electronics. It is primarily used when a power source (like a 6V UBEC or a 5-cell NiMH pack) provides a voltage slightly higher than what specific legacy servos or gyros can handle. By inducing a precise 0.7V drop, it brings the voltage down to a "safe" 5.3V, ensuring compatibility without risking component burnout.

Key Features:

• Voltage Reduction: Effectively reduces a 6.0V input to a 5.3V output by using a 0.7V step-down circuit.
• Servo Protection: Essential for older analog servos or specialized tail-rotor gyros that are strictly rated for 4.8V–5.0V and may "jitter" or fail on a full 6V supply.
• Plug-and-Play Simplicity: Features standard male/female JR-style connectors, allowing it to be installed instantly between the receiver and the specific servo that needs lower voltage.
• Lightweight Inline Design: The minimalist "cable-style" regulator adds almost no weight to the aircraft or vehicle and can be tucked away easily in tight radio boxes.
• High Efficiency: Designed to provide a stable voltage drop with minimal heat dissipation compared to larger, more complex regulators.

Technical Specifications:

Application Tip:

This regulator is often included as a free accessory with Hobbywing 5A/8A UBECs. It is intended for individual components; do not use it to power your entire receiver or multiple high-torque servos, as the current capacity of the thin inline wire is limited. If you have a modern "High Voltage" (HV) setup running on 7.4V or 8.4V, this regulator is not sufficient to drop the voltage to 5V levels—you would need a dedicated adjustable UBEC for that purpose.
