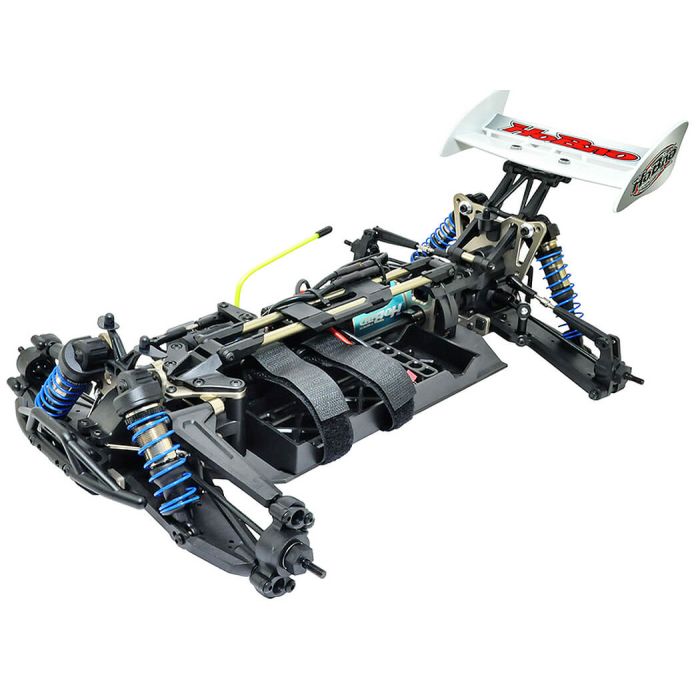

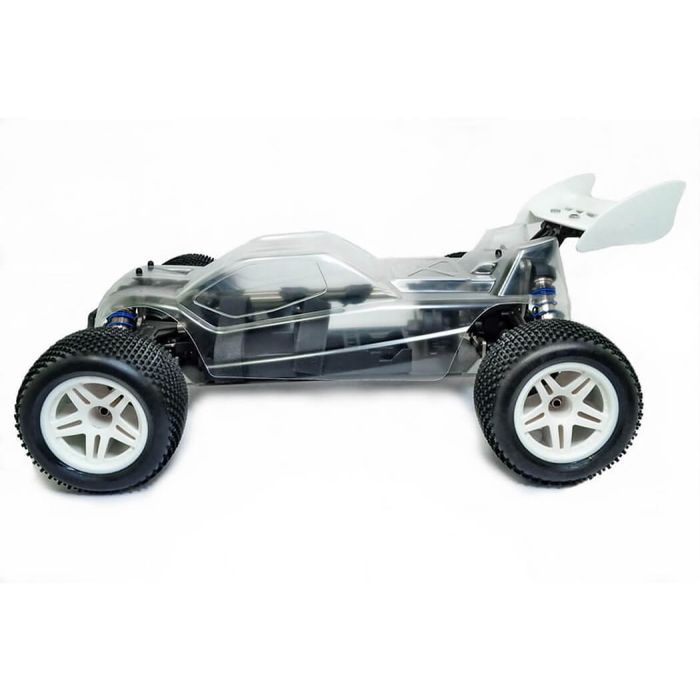

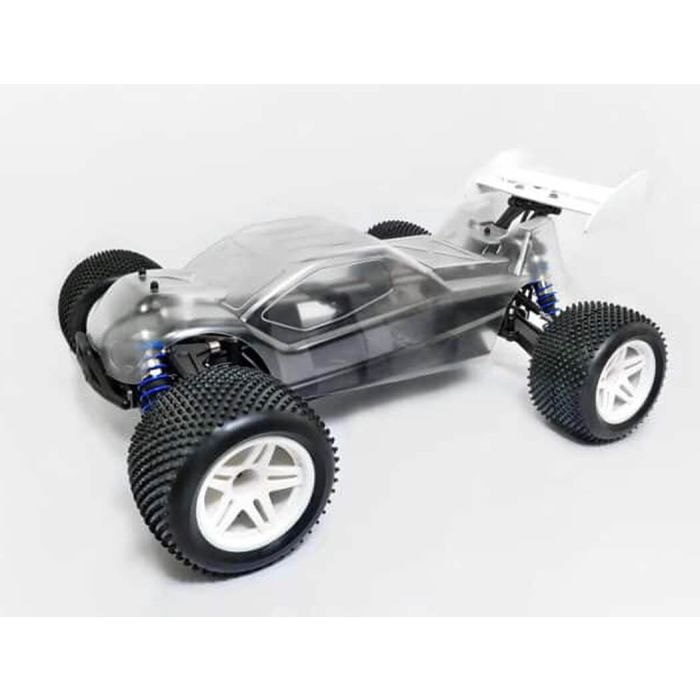

Hobao TT 2.0 Pro Truggy Truck Rolling Chassis RC Car

Specifications

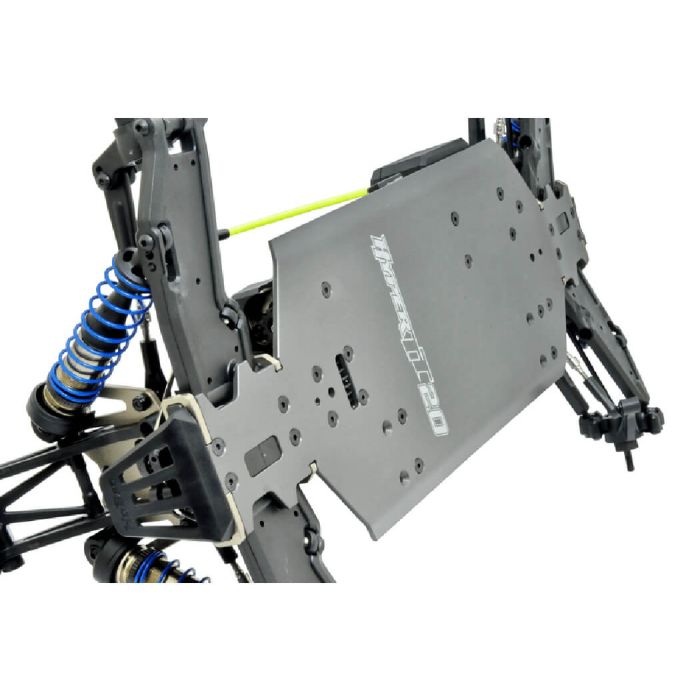

Chassis:

Lightweight.

Hard anodised CNC aluminum.

3mm thick.

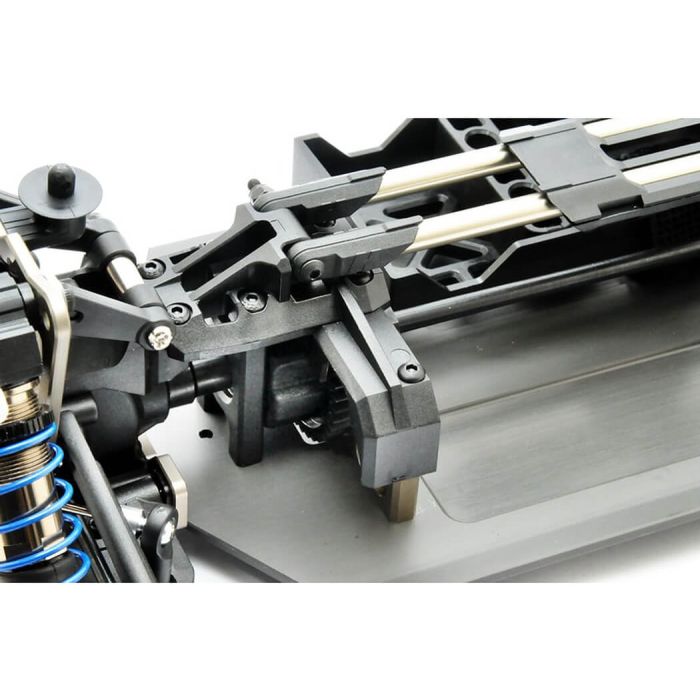

Centre Top Brace:

Wire pass through.

Easy to remove with a single screw.

Drive:

Central: Single ø4mm Hardened steel centre driveshaft.

Optional Aluminium driveshaft H0P1-0072.

Front: CVA axles, ø3.2mm Hardened steel.

Rear: Dogbone, axles, ø3.2mm Hardened steel

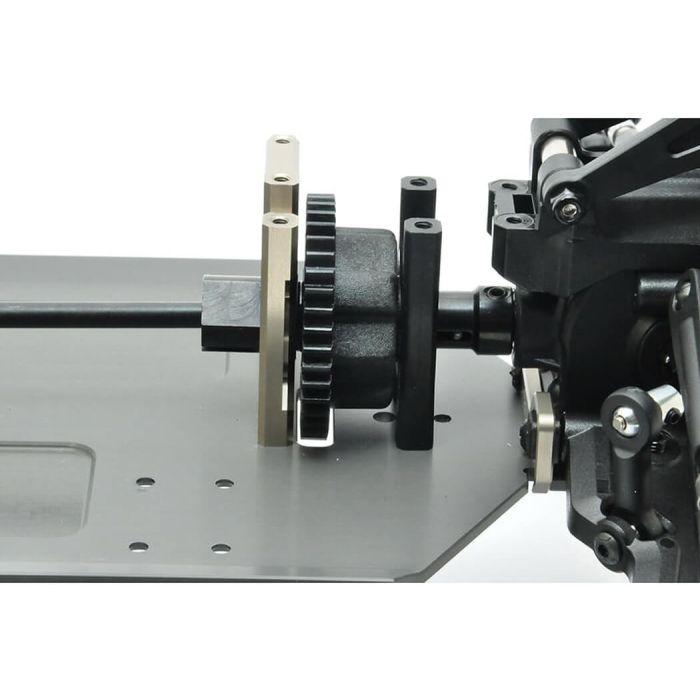

Differentials:

Center diff is directly connected to rear diff.

Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.

Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).

Center Spur Gear: 40T (MOD 1).

Front differential filled with 5K silicone oil.

Center differential filled with 5K silicone oil.

Rear differential filled with 3K silicone oil.

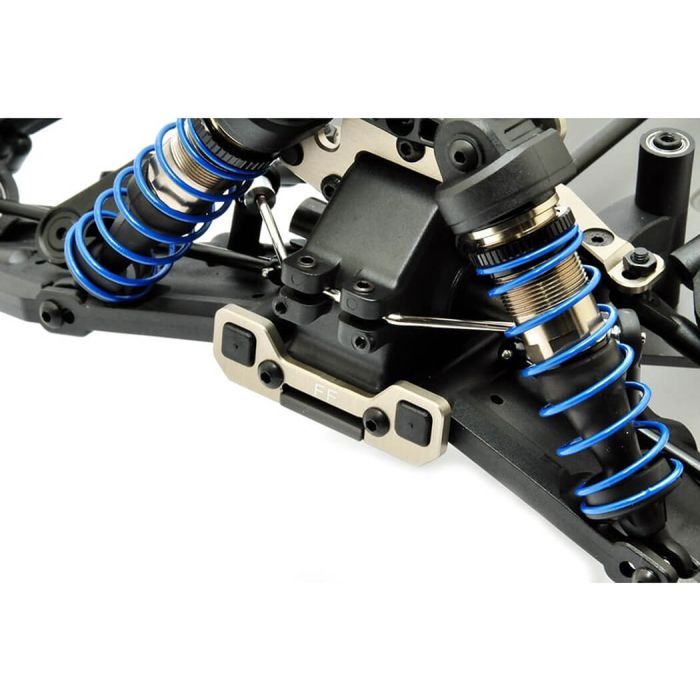

Shocks:

Filled with 600 silicone oil.

3.5mm Shaft.

Aluminium Adjustable Ring.

Shock Cap Protector.

Spring:

Front: 0.86kg/cm, L=50mm, Blue.

Rear: 064kg/cm, L=65mm, Blue.

Optional Front Spring H0P1-0073: 1 kg/cm, L=50mm, Grey.

Optional Rear Spring H0P1-0074: 0.73kg/cm, L=65mm, Grey.

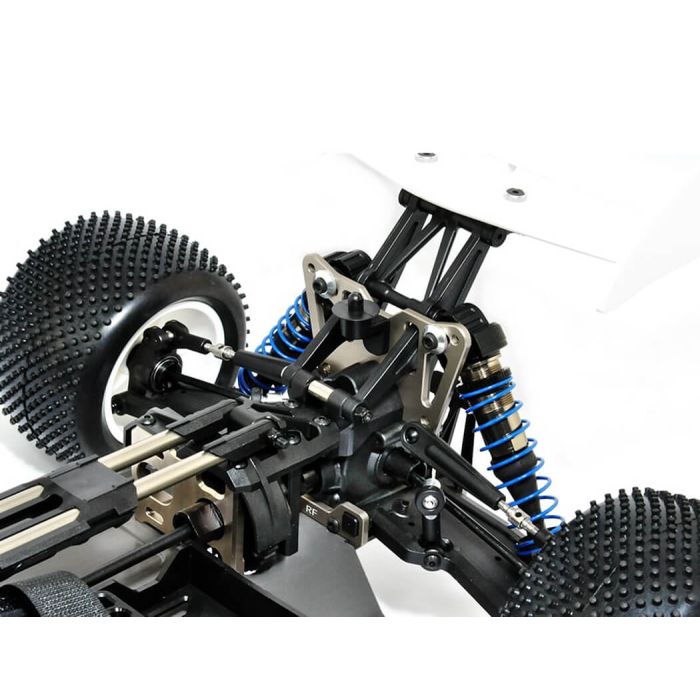

Shock Tower: 3mm, CNC aluminium.

Front PBS.

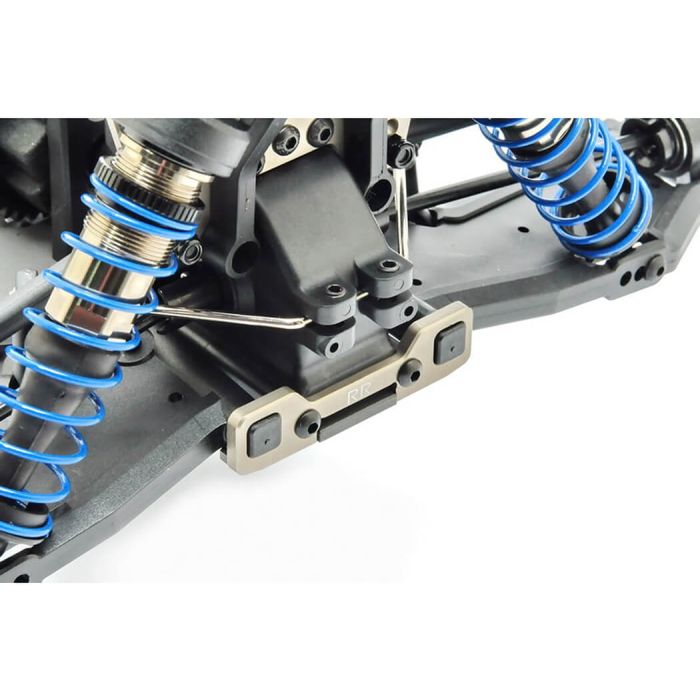

Front & rear anti-roll bars.

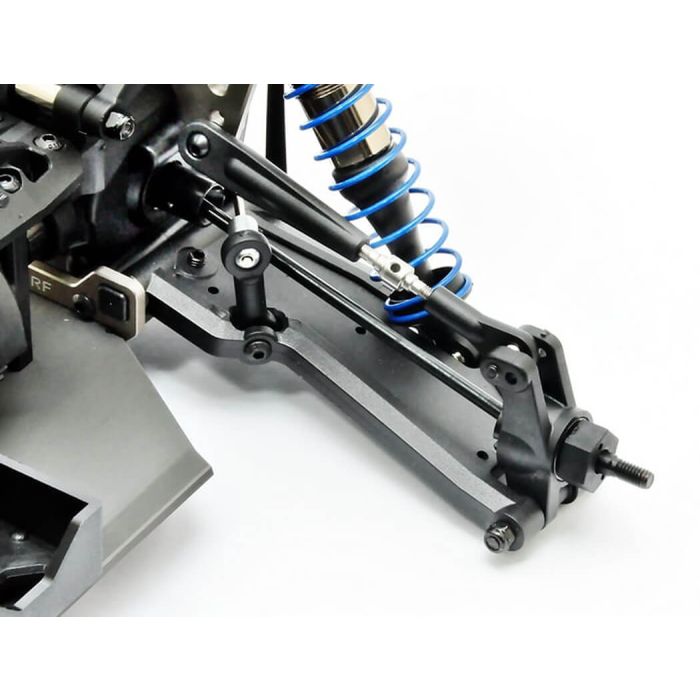

Front and rear mg alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles.

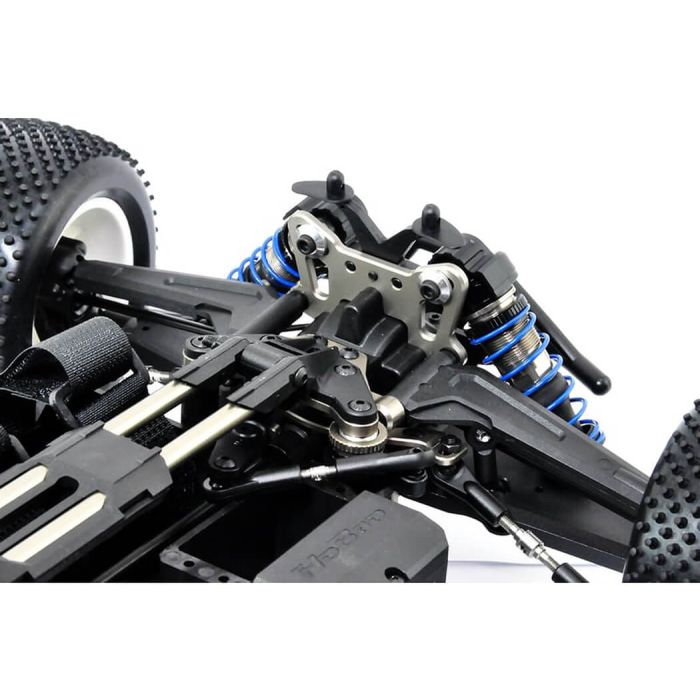

Steering:

New Steering Crank set with CNC aluminium rack and hard spring.

Ball bearing equipped with servo saver.

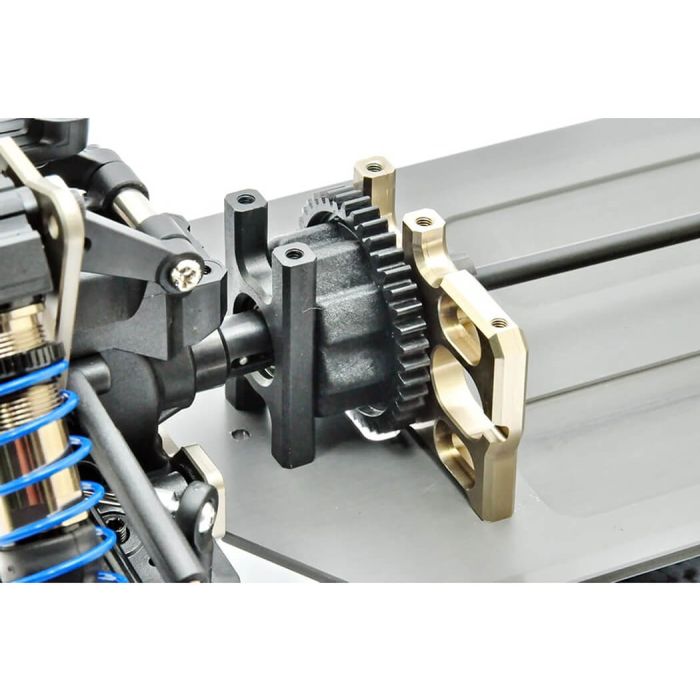

Motor Mount:

CNC aluminium laydown motor mount.

Fitting for motors with size below 38mm.

Spur gear cover.

Needed To Complete

Motor

ESC

Servo

Transmitter

Receiver

Battery

Charger

Paint

Tyre Glue

Part Number	HB-TT2E
Manufacturer	HoBao
