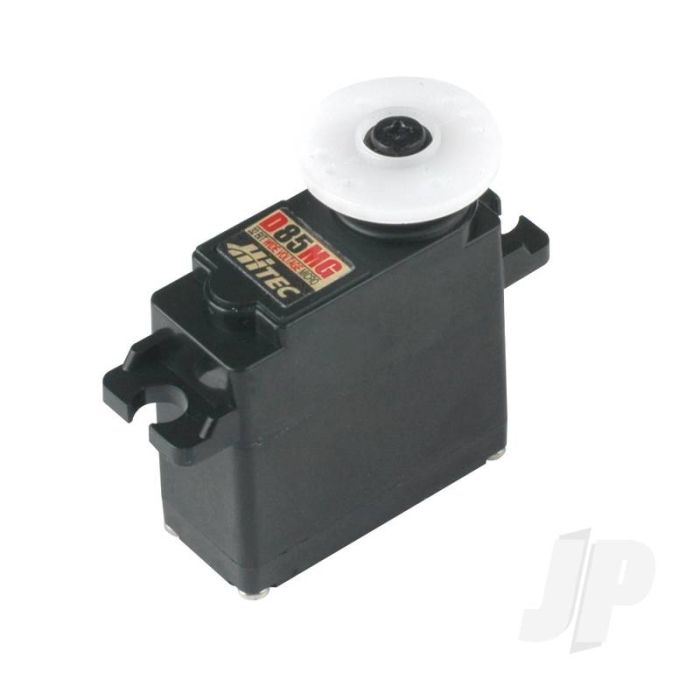

Hitec D85MG Mighty Micro With Metal Gears Servo

Hitec D85MG Mighty Micro With Metal Gears Servo

Part Number: 2221070

Availability: On Order with Supplier

£36.99

Qty:

-OR-

Be the first to review this product

Description

Details

Specification:

Dimensions 1.14" x 0.51" x 1.18" (29 mm x 13 mm

x 30 mm)

Product Weight 0.84 oz (24 g)

Output Shaft Style 24 tooth spline

Voltage Range 4.8 V - 6.0 V

No-Load Speed (4.8V) 0.17 sec/60°

No-Load Speed (6.0V) 0.13 sec/60°

Stall Torque (4.8V) 50.27 oz-in. (3.6 kg.cm)

Stall Torque (6.0V) 60.04 oz-in. (4.3 kg.cm)

Max PWM Signal Range (Standard) 850-2350 μsec

Travel per µs (out of box) .095°/μsec

Travel per µsec (reprogrammed) 0.123°/μsec

Max Travel (out of box) 145°

Max Travel (reprogrammed) 185°

Pulse Amplitude 3-5 V

Operating Temperature -20°C to +60°C

Continuous Rotation Modifiable No

Direction w/ Increasing PWM Signal Clockwise

Deadband Width 2 μs

Motor Type 3 Pole Ferrite

Internal Feedback Style 5KΩ Potentiometer

Output Shaft Support Top Ball Bearing

Gear Type Straight Cut Spur

Gear Material 4 Metal and 1 Nylon

Wire Length 13" (330.2 mm)

Details

Additional Information

Part Number	2221070
Manufacturer	Hitec
