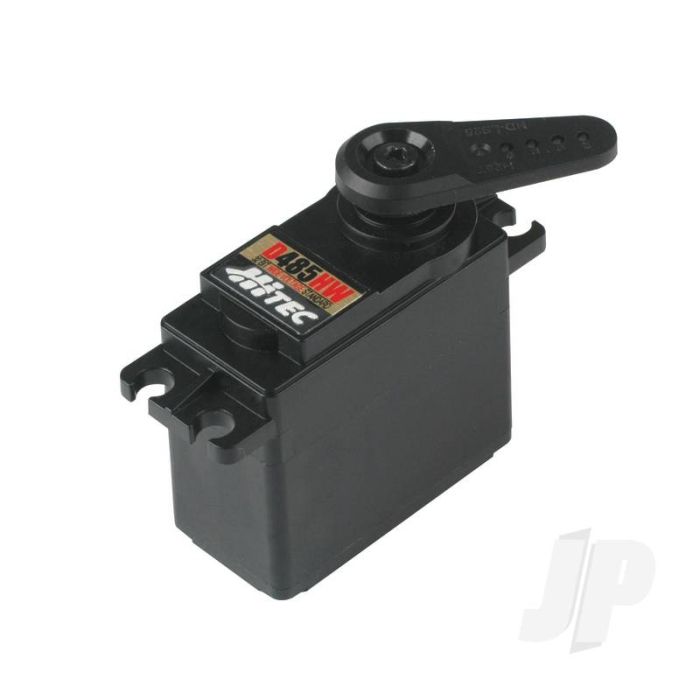

Hitec D485HW Wide Voltage Standard Servo

Hitec D485HW Wide Voltage Standard Servo

Part Number: 2221030

Availability: On Order with Supplier

£30.99

Qty:

-OR-

Be the first to review this product

Description

Details

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Specification:

Dimensions 1.57" x 0.78" x 1.49" (39.8 mm X 19.8 mm X 38.0 mm)

Product Weight 1.59 oz (45.0 g)

Output Shaft Style 25 tooth (H25T) spline

Voltage Range 4.8 V - 7.4 V

No-Load Speed (4.8V) 0.20 sec/60°

No-Load Speed (7.4V) 0.15 sec/60°

Stall Torque (4.8V) 67 oz-in. (4.82 kg.cm)

Stall Torque (7.4V) 103 oz-in (7.41 kg.cm)

Max PWM Signal Range (Standard) 850-2350 μsec

Travel per µs (out of box) .098°/μsec

Travel per µsec (reprogrammed) 0.135°/μsec

Max Travel (out of box) 147°

Max Travel (reprogrammed) 203°

Pulse Amplitude 3-5 V

Operating Temperature -20°C to +60°C

Continuous Rotation Modifiable Yes

Direction w/ Increasing PWM Signal Clockwise

Deadband Width 1 µs

Motor Type 3 Pole Cored Carbon Brush

Internal Feedback Style 5KΩ Potentiometer

Output Shaft Support Top Ball Bearing

Gear Type Straight Cut Spur

Gear Material MK 1st Gear & 3 Karbonite Resin Gears

Wire Length 11" (279.4 mm)

Details

Additional Information

Part Number	2221030
Manufacturer	Hitec
