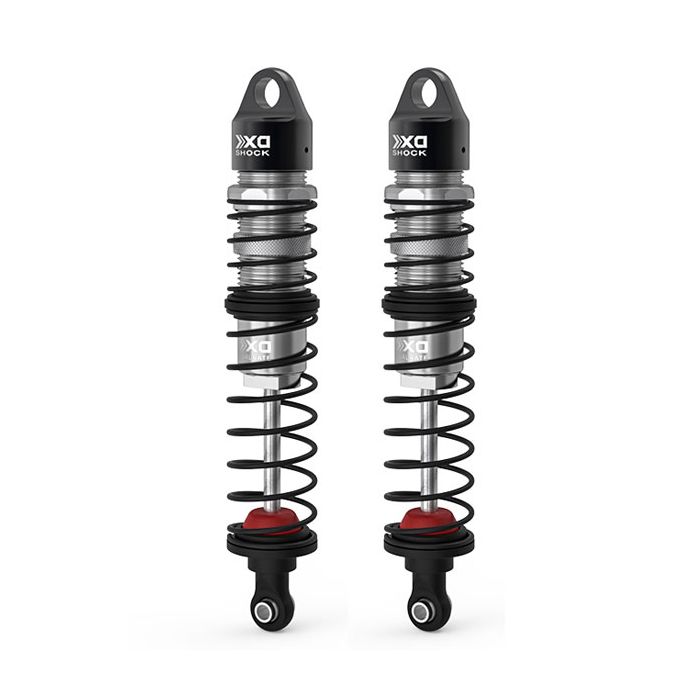

GMADE XD DUAL RATE DIAPHRAGM SHOCK 103MM (2)

Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1 and GOM, Axial wraith and bomber, Traxxas E-maxx and 2WD Slash rear).

Gmade XD Dual Rate Diaphtagm Shock Features:

• CNC machined aluminum shock bodies, spring adjust nuts, stop rings, caps and cartridges
• Silver anodized shock bodies, spring adjust nuts, stop rings and cartridges
• Upper and lower shock ends includes silver anodized aluminum balls
• Black anodized shock caps
• Fully threaded for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• True dual stage spring rate
• Easy load shock seal assembly
• Laser engraved for authenticity

Spec Check:

• Length (Mounting hole to hole): 103mm
• Shock Body Diameter: 14mm
• Spring Diameter: 19mm
• Spring Length: 20mm and 50mm
• Full Shaft Travel Range: 31mm (without Rubber bump stop)
• Shaft Diameter: 3.5mm

What's Included:

• Silver anodized aluminum shock bodies x 2
• Silver anodized aluminum spring adjust nuts x 2
• Silver anodized aluminum stop rings x 2
• Silver anodized aluminum cartridges x 2
• Black anodized aluminum shock caps x 2
• Shock springs x 4
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil
