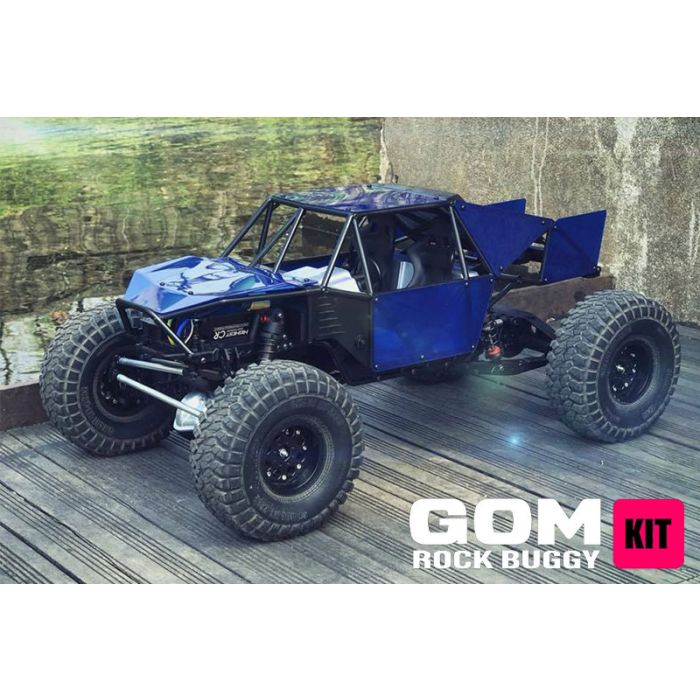

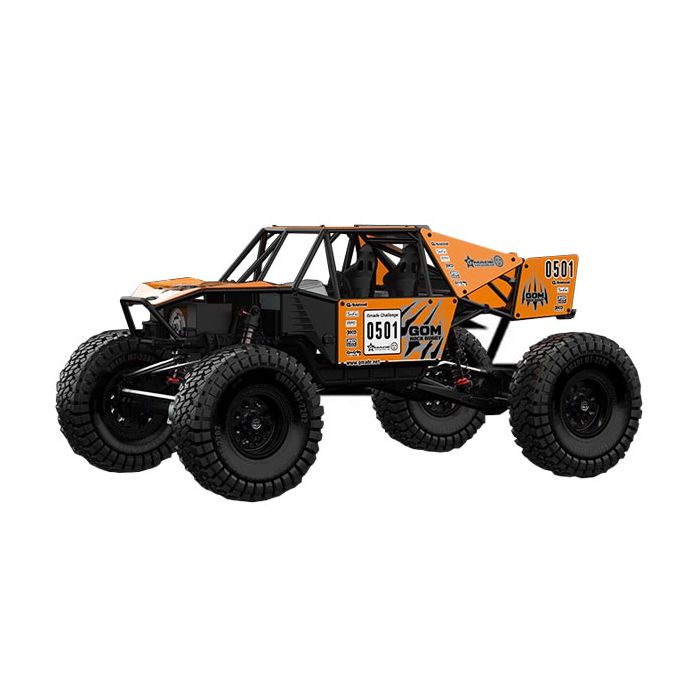

Gmade 1:10 GOM RC Buggy 4wd Rock Crawler Kit

The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components. The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.

Other notable features include a scale looking transmission and transfer case with a 2 speed transmisson, awesome XD Aeration shocks, standard 2.2 size wheels. The Gmade GOM is destined to become a standard in the world of rock crawlers.

This version of the Gmade GOM is sold in ARTR format (requires electrics).

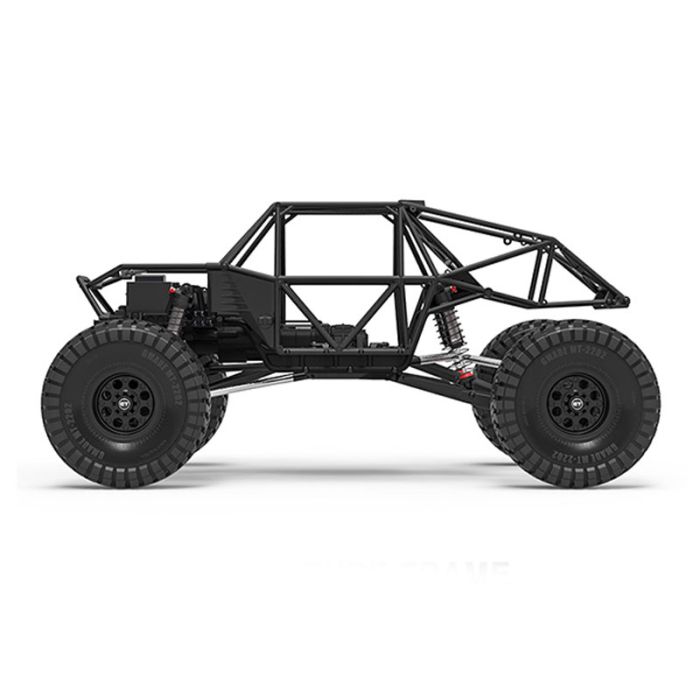

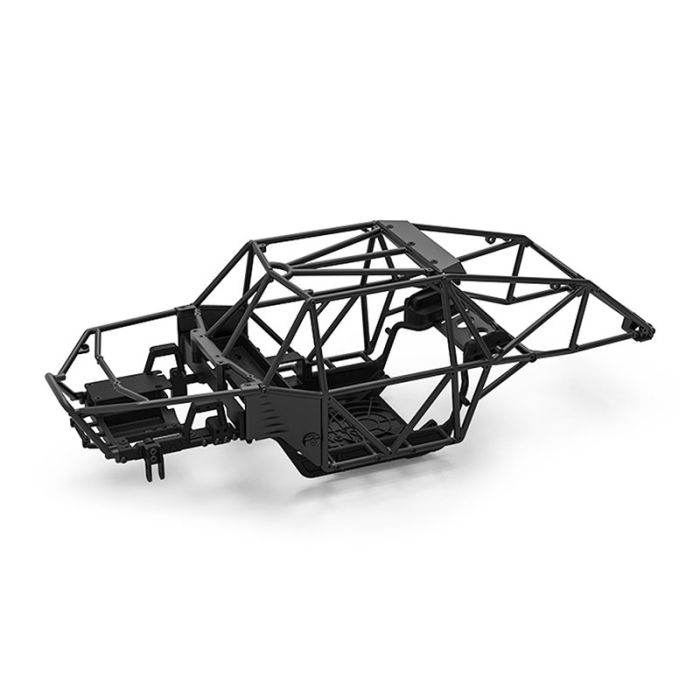

GOM Tube Chassis

The tube chassis is lightweight and extremely rigid. The three-dimensionally connected frame structure effectively protects the internals from external impact.

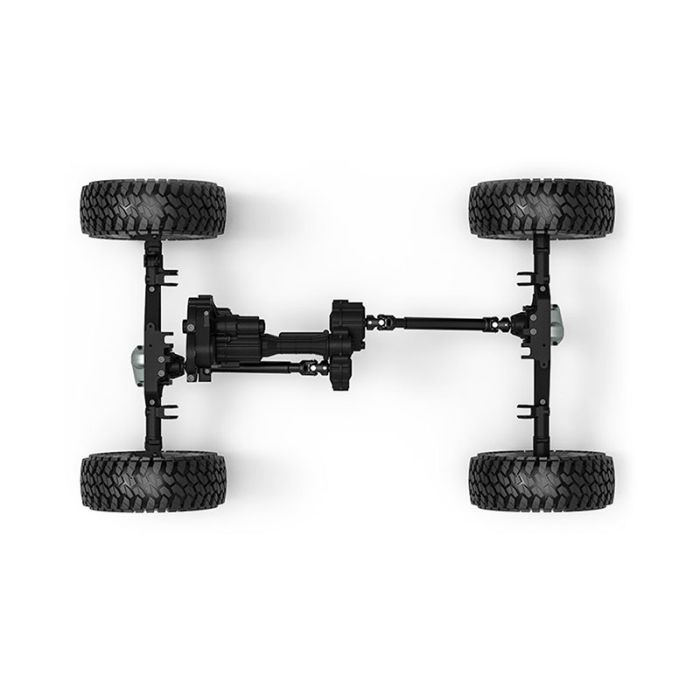

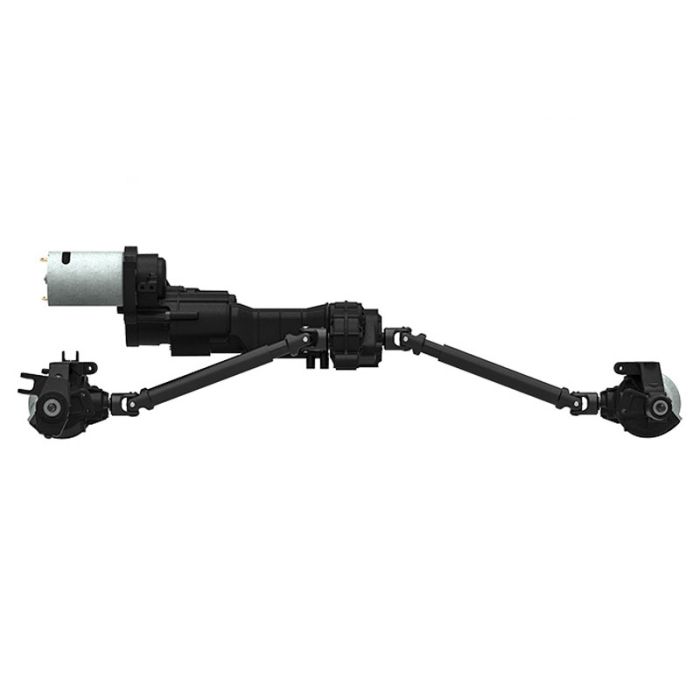

GOM Drive Train

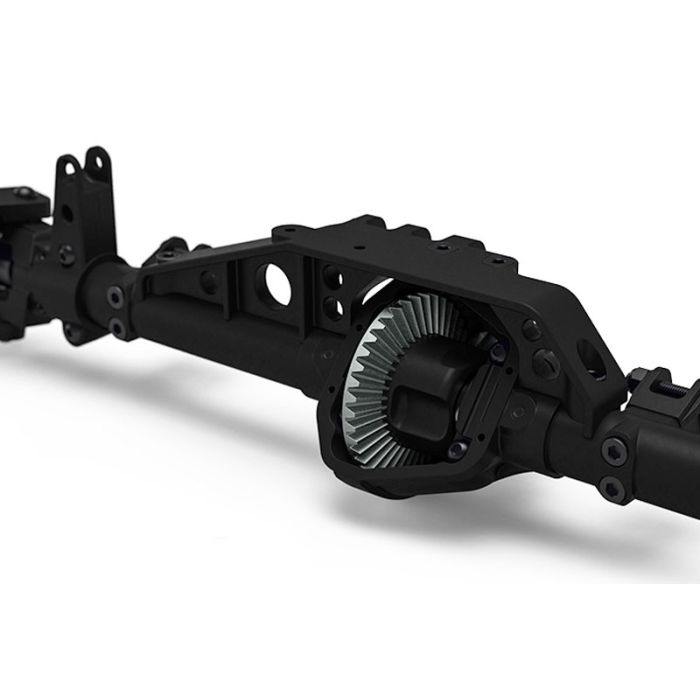

The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.

GOM Transmission and Case

The 2 speed transmission, and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. The 1st gear is for hardcore rock climbing and the 2nd gear is for hill climbing or high speed driving. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.

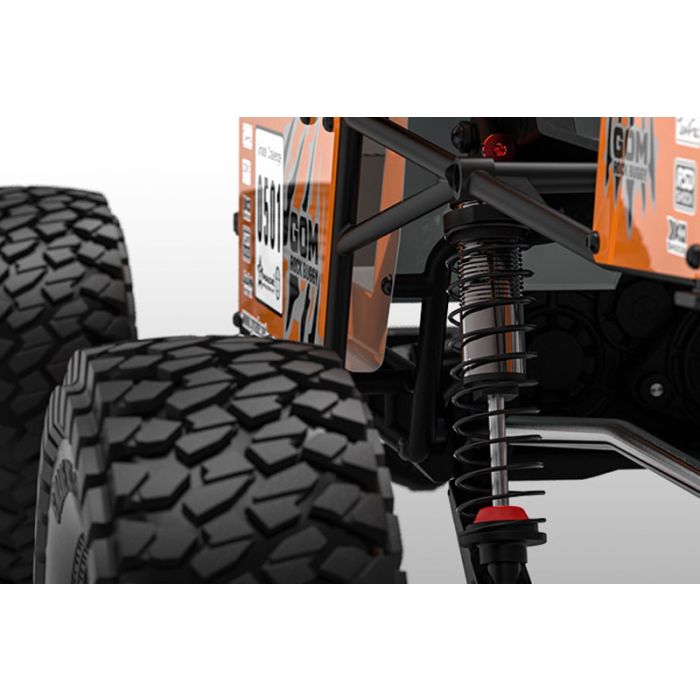

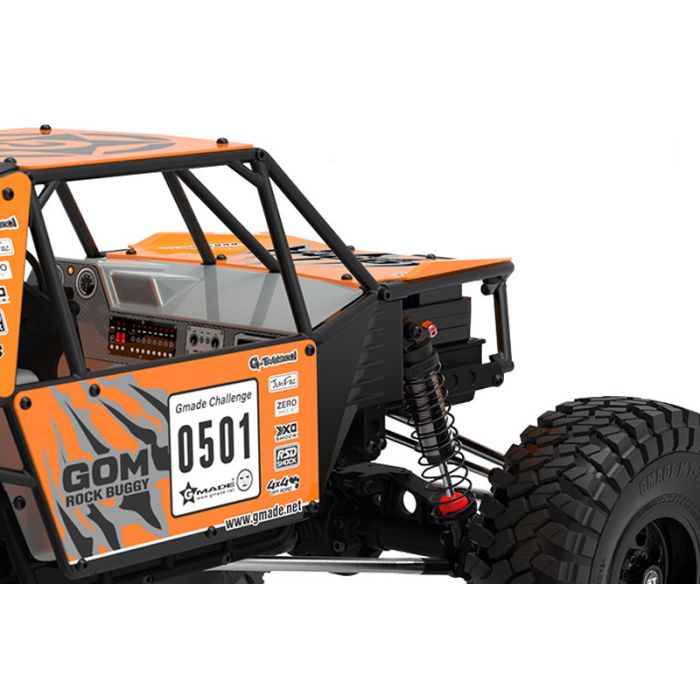

GOM XD Aeration Shock Absorber

Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw. Dual shocks can be added at a later date for the ultimate suspension setup for rough terrain.

Gmade GOM Features:

• Full tube frame chassis
• 2 Speed transmission
• DIG System
• Front weight balance
• 4 wheel drive

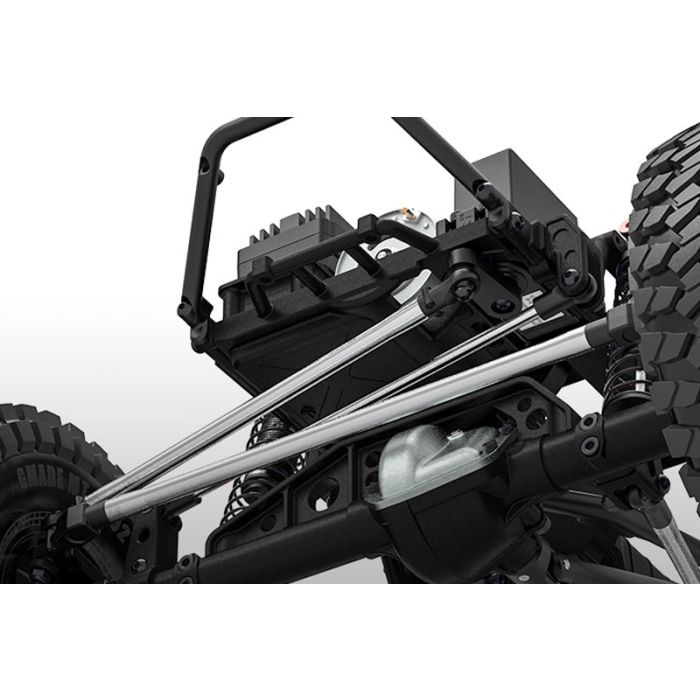

• Chassis mount servo system with Panhard bar

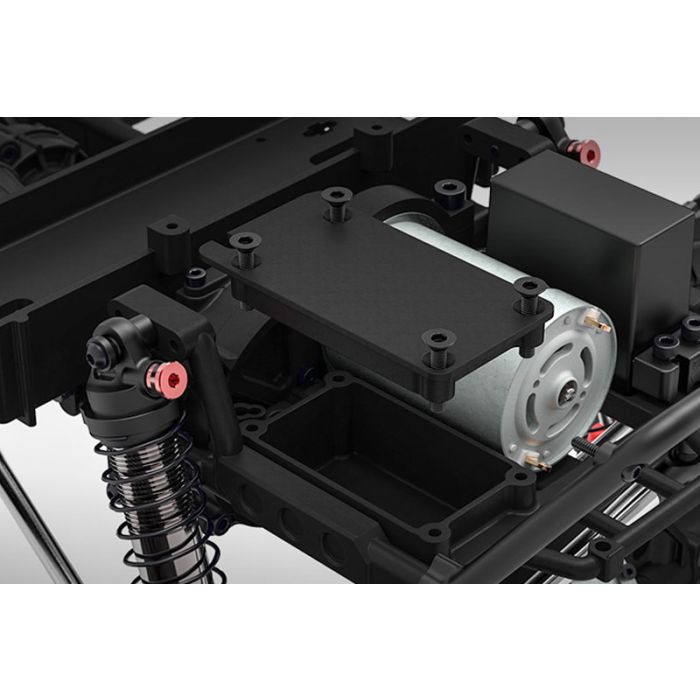

• Dustproof receiver box

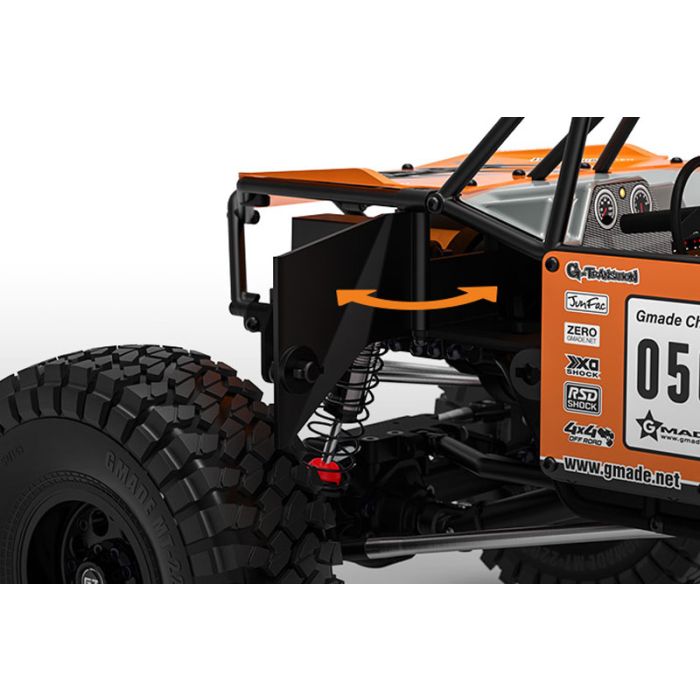

• Forward easy access battery door

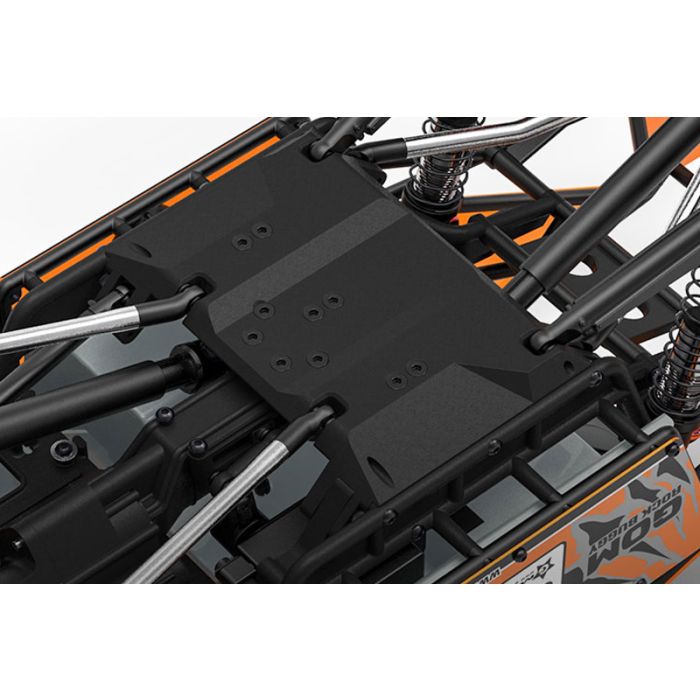

• Skid plate
• Dual slipper clutch
• Easy adjust motor mount
• Hi-Steer zero ackerman knuckle arm
• GA60 axle
• Rear dual shock mounts
• XD Aeration 103mm shocks
• GMade MT2202 off-road tyres
• GMade GT02 beadlock wheels
• Interior cockpit detail

Spec Check:

• Scale:1/10th
• Width: 318mm
• Height: 248mm
• Length: 523mm
• Wheelbase: 380mm
• Ground Clearance: 88mm
• Weight (No Electronics): 2kg

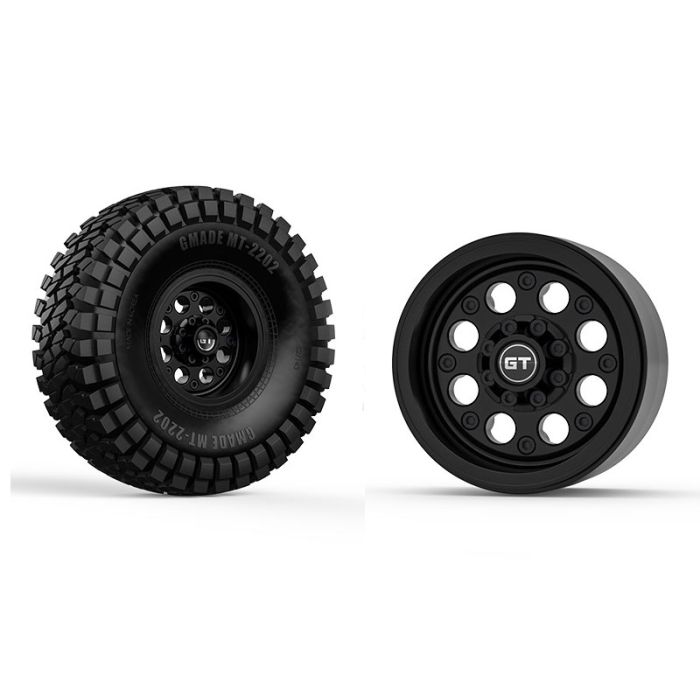

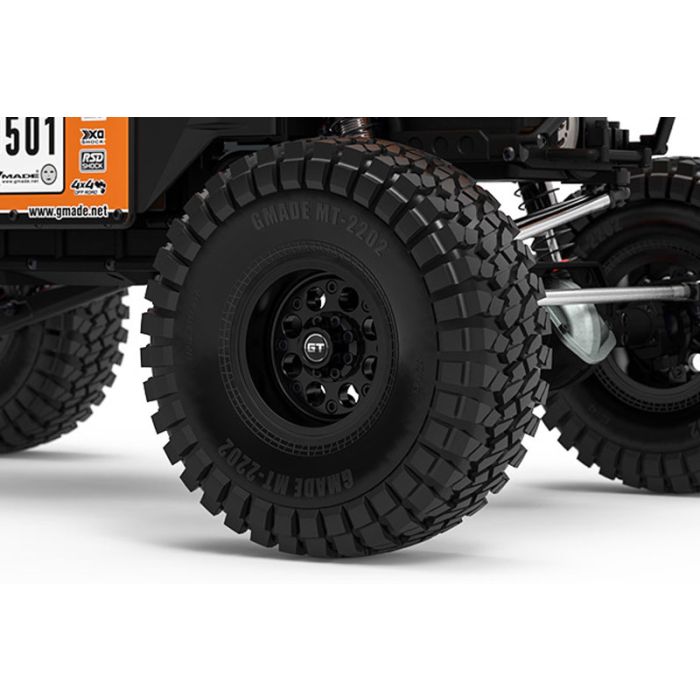

2.2 inch MT2202 Tyre

The MT2202 tyre is made of a super soft compound which is designed to provide high grip over all kinds of terrain. The large diameter enables it to run smoothly on uneven road surfaces and with large deep lugs provides exceptional traction over rock, mud, and dirt.

Tyre Spec:

• Tyre Height: 143m(5.6")
• Tyre Width: 52mm(2.0")
• Inner Diameter: 56mm(2.2")

Please Note: This kit requires the following for completion: 2-channel radio system, battery and charger, motor and ESC, Steering servo, tools, paint for polycarbonate body, tools etc.
