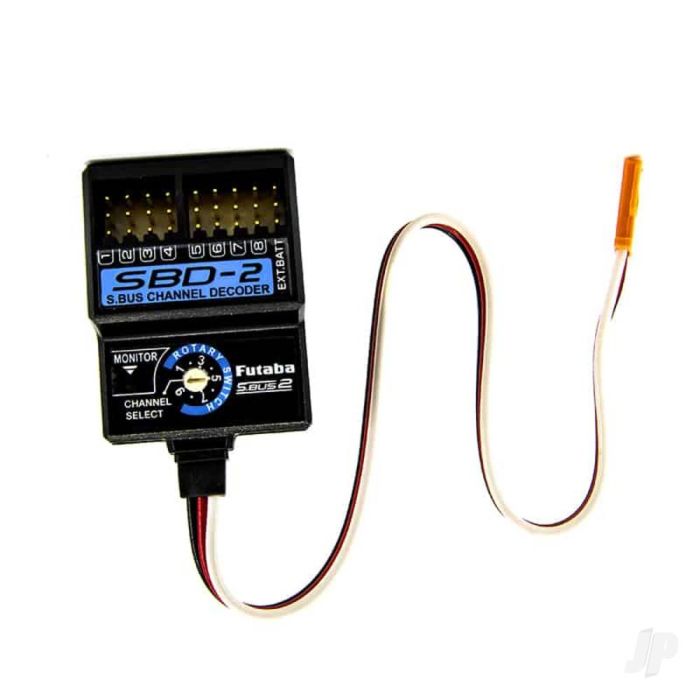

Futaba SBD-2 8-channel S.Bus Servo Decoder

The Futaba SBD-2 8-channel S.Bus Servo Decoder is an essential expansion tool for pilots and modelers using the Futaba S.Bus/S.Bus2 ecosystem. While standard receivers are limited by their physical PWM ports, the SBD-2 allows you to convert a single S.Bus digital signal into eight conventional PWM outputs. This means you can use your existing standard (non-S.Bus) servos even on high-channel-count models without needing to buy expensive digital S.Bus-native servos.

Key Features:

• 8-Channel Expansion: Instantly adds eight standard servo ports to any S.Bus or S.Bus2 system, perfect for scale models with numerous functions like flaps, lights, and retracts.
• Rotary Switch Programming: Features an easy-to-use rotary dial that allows you to select from 9 different channel groups, eliminating the need for a separate PC or programmer for basic setup.
• External Battery Support: Includes a dedicated EXT.BATT connector. This allows you to power the eight servos via a separate battery pack, protecting your receiver from the high current draw of multiple large servos.
• Universal Compatibility: Works with almost any standard analog or digital servo. It translates the digital S.Bus stream into the traditional pulse-width modulation (PWM) signals these servos understand.
• Compact & Lightweight: At only 14.2g, it can be tucked away in wings or rear fuselages to significantly reduce the weight and clutter of long, multiple servo extensions.

Technical Specifications:

Pro Installation Tip:

When using the EXT.BATT port to power your servos independently, you must remove the shorting pin supplied with the unit. This prevents the external battery from back-feeding into the receiver. Additionally, if you are using analog servos, ensure your receiver is not in "High Speed" or "FASSTest 12ch" mode, as the faster frame rate can cause analog servos to jitter or burn out.
