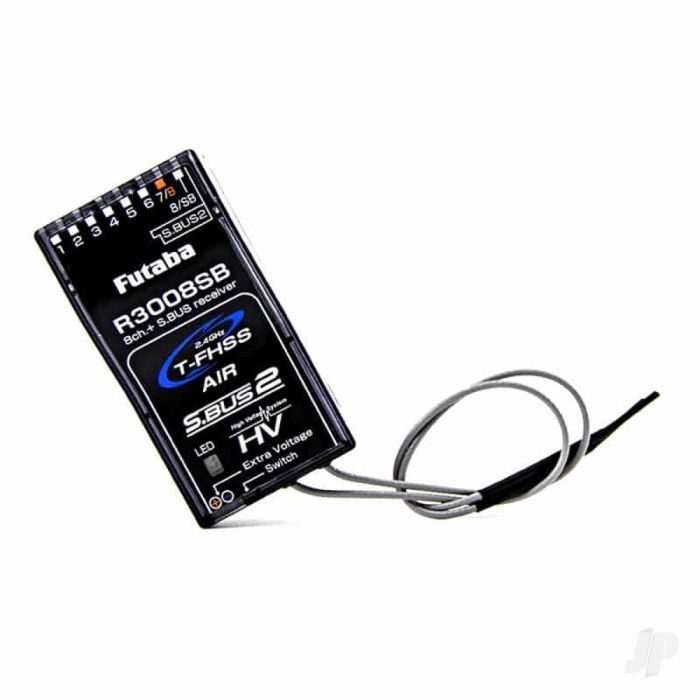

Futaba R3008SB 8-channel Air Receiver (18-channel S.Bus) T-FHSS

The Futaba R3008SB is a full-range, 8-channel receiver utilizing the T-FHSS Air 2.4GHz system. Designed to be the standard powerhouse for the Futaba 10J and 6K transmitters, it offers the perfect balance of traditional PWM outputs and advanced digital expansion. While it features 8 physical ports for standard servos, its S.Bus2 integration allows it to handle up to 18 channels while providing bidirectional telemetry data, giving you real-time insight into your aircraft's performance.

Key Features:

• T-FHSS Bidirectional Communication: Enables full telemetry support, allowing your transmitter to display real-time data such as receiver voltage, temperature, RPM, and altitude (with optional sensors).
• S.Bus & S.Bus2 Ports: Standard S.Bus allows for a single-cable connection to multiple servos or gyros, while the S.Bus2 port is dedicated to bidirectional telemetry sensors and S.Bus2-specific servos.
• Extra Voltage Port: Features a dedicated "External Voltage" port (0–70V DC) to monitor your main flight battery's voltage. Note: Requires the optional Futaba External Voltage Cable (P-EBB0141).
• Dual Antenna Diversity: Utilizes two antennas to ensure a stable signal link by automatically switching to the antenna with the strongest reception, regardless of the aircraft's orientation.
• High Voltage (HV) Support: Safely operates between 3.5V and 8.4V, allowing you to power your system directly from a 2S LiPo battery without a voltage regulator.

Technical Specifications:

Important Compatibility Note:

The R3008SB uses the T-FHSS protocol and is not compatible with FASST or FASSTest transmitters (such as the standard 14SG or 18MZ). It is designed specifically for T-FHSS capable radios like the 10J, 6K, 16IZ, 18SZ, and 32MZ. Always ensure your transmitter is set to "T-FHSS Air" mode before attempting to link.
