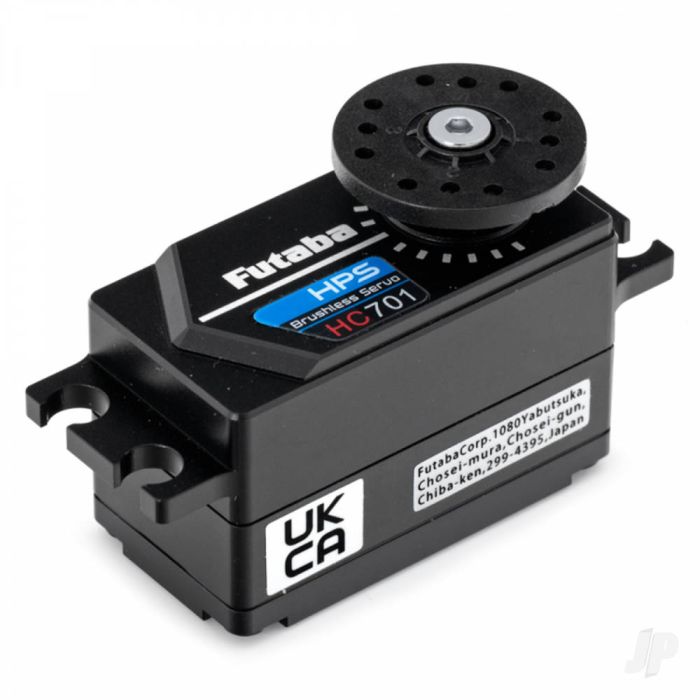

Futaba HPS-HC701 Standard Brushless Servo PWM/S.Bus2 20.0kg/0.075s 4.8V - 8.4V

FEATURES

• Suitable for RC helicopters 500-800 3D/F3C
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3)
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-HC701 Low Profile Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• Suitable for RC helicopters 500-800 3D/F3C
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3)
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-HC701 Low Profile Brushless Servo
• Horns
• Mounting Hardware

DETAILS

High Performance cyclic Servo with Brushless Motor (1520uS/760uS switchable)

1520uS:

Speed:
0.07 sec/60 (7.4V)
0.08 sec/60 (6.6V)

Torque:
30.0gfcm (7.4V)
26.5kgfcm (6.6V)
416.6ozfin (7.4V)br>368.0ozfin (6.6V)

760uS:

Speed:
0.07 sec/60 (7.4V)
0.08 sec/60 (6.6V)

Torque:
27.0kgfcm (7.4V)
24.0kgfcm (6.6V)
375.0ozfin (7.4V)br>333.3ozfin (6.6V)

Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.83 x 1.03 in

Weight:
54 g
1.90 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY USE
