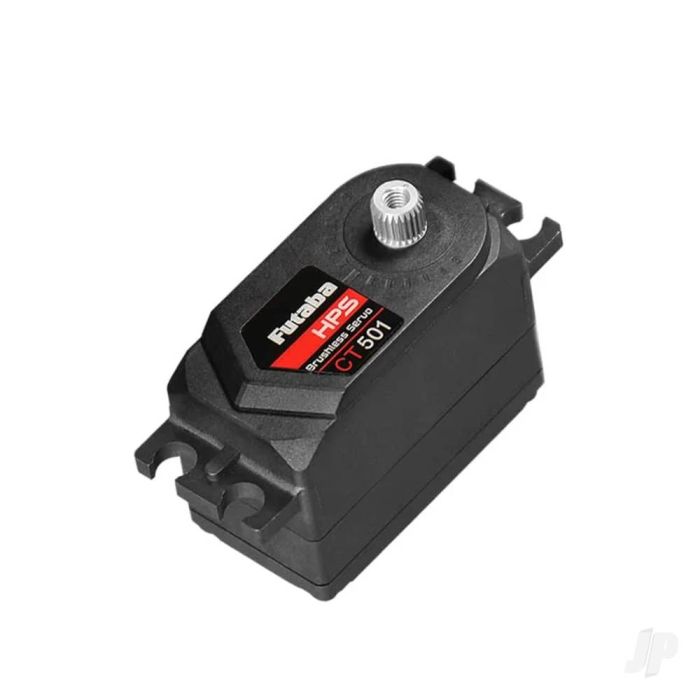

Futaba HPS-CT501 Low Profile Brushless Servo PWM/S.Bus2 21.0kg/0.06s 4.8V - 8.4V

FEATURES

• Suitable for RC cars; drift and 1/10 scale on and off road
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports SR mode with T7PX/7PXR
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Plastic Case
• 1st, 2nd, 3rd and final gears: Metal
• Cable colour: Black-grey

CONTENTS

• 1x HPS-CT501 Low Profile Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• Suitable for RC cars; drift and 1/10 scale on and off road
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports SR mode with T7PX/7PXR
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Plastic Case
• 1st, 2nd, 3rd and final gears: Metal
• Cable colour: Black-grey

CONTENTS

• 1x HPS-CT501 Low Profile Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-CT501– S.Bus2 High-Voltage Standard Surface Servo

High Performance Servo with Brushless Motor

Speed:
0.06 sec/60 (7.4V)

Torque:
21.0 kgf/cm (7.4V)
291.6 ozf/in (7.4V)

Size:
40.5 x 21.0 x 26.9 mm
1.59 x 0.83 x 1.06 in

Weight:
44 g
1.55 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
ONLY FOR RC CARS SMALLER THAN 15 SCALE
