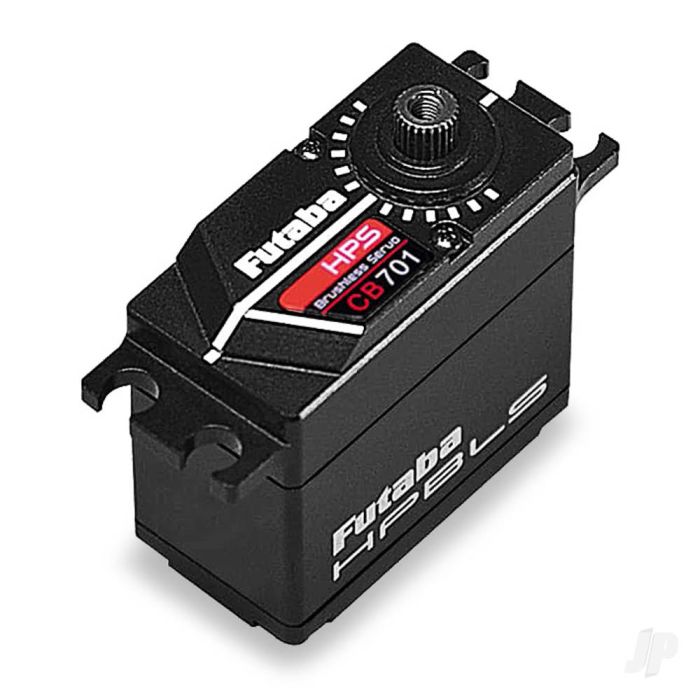

Futaba HPS-CB701 Standard Brushless Servo MG PWM/S.Bus2 49kg/0.075s 4.8V - 8.4V

FEATURES

• Suitable for RC cars; 1/10 scale on/off road and 1/8 scale on/off road
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports SR mode with T4PM/P, T7PX/R, T10PX
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-CB701 Standard Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• Suitable for RC cars; 1/10 scale on/off road and 1/8 scale on/off road
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports SR mode with T4PM/P, T7PX/R, T10PX
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-CB701 Standard Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-CB701– S.Bus2 High-Voltage Standard Surface Servo

High Performance Servo with Brushless Motor

Speed:
0.09 sec/60 (6.0V)
0.075 sec/60 (7.4V)

Torque:
42.0 kfg/cm (6.0V)
583.3 ozf/in (6.0V)
49.0 kgf/cm (7.4V)
680.5 ozf/in (7.4V)

Size:
40.5 x 21.0 x 37.8 mm
1.59 x 0.83 x 1.49 in

Weight:
75 g
2.65 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
