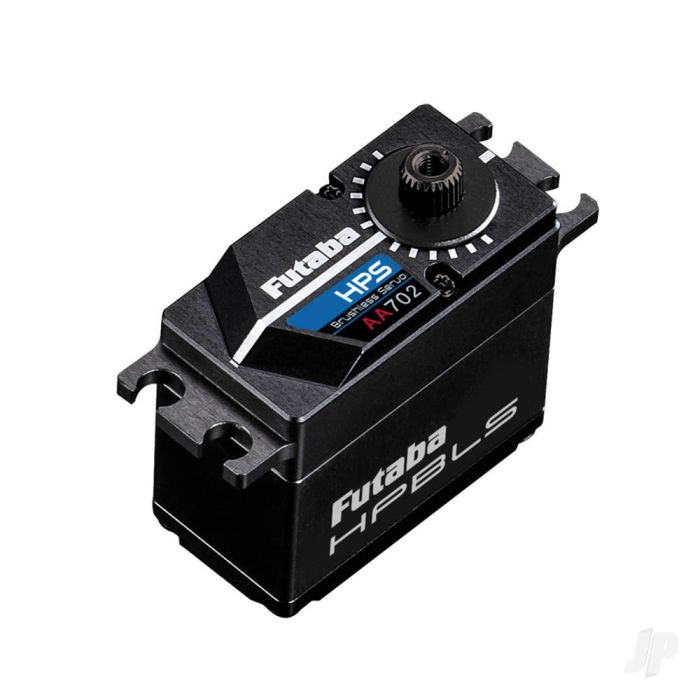

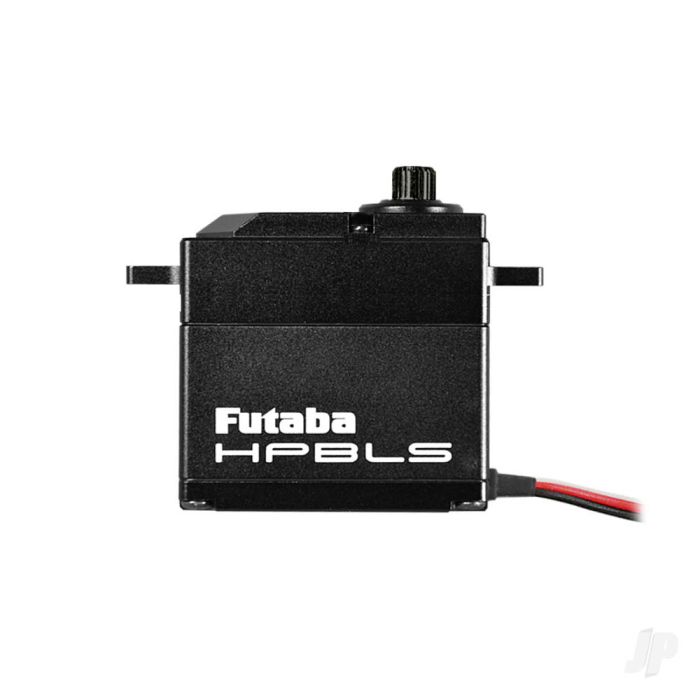

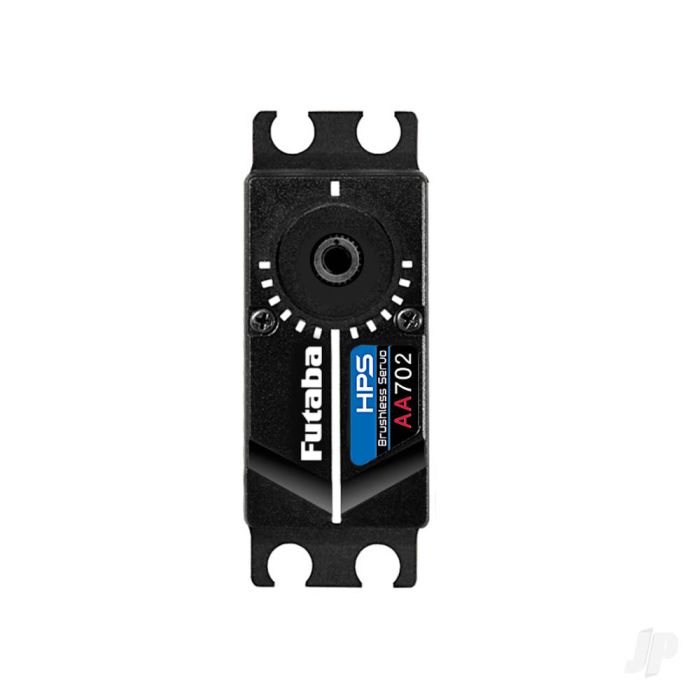

Futaba HPS-AA702 Standard Brushless Servo PWM/S.BUS2 41.0kg 0.075s 4.8V - 7.4V

FEATURES

• For all-purpose giant scale airplane
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Suggested upgrade for BLS172SV/177SC/AA700
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is Stainless Steel
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-AA702 Standard Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• For all-purpose giant scale airplane
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Suggested upgrade for BLS172SV/177SC/AA700
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is Stainless Steel
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-AA702 Standard Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-AA702– S.Bus2 High-Voltage Standard Airplane Servo
High Performance Servo with Brushless Motor

Speed:
0.08 sec/60 (6.6V)
0.075 sec/60 (7.4V)

Torque:
37.0 kgf/cm (6.6V)
513.86 ozf/in (6.6V)
41.0 kgf/cm 7.4V)
569.41 ozf/in (7.4V)

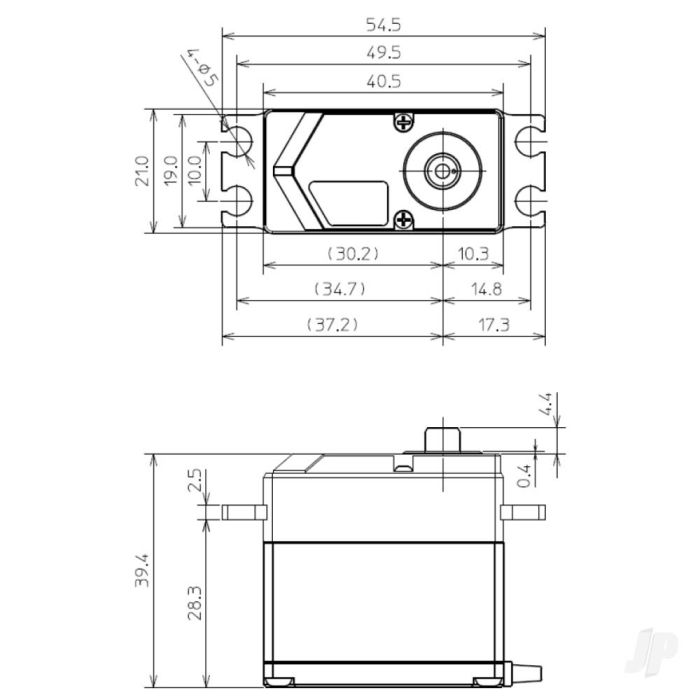

Size:
40.5 x 21.0 x 39.4 mm
1.59 x 0.83 x 1.55 in

Weight:
80 g
2.82 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
