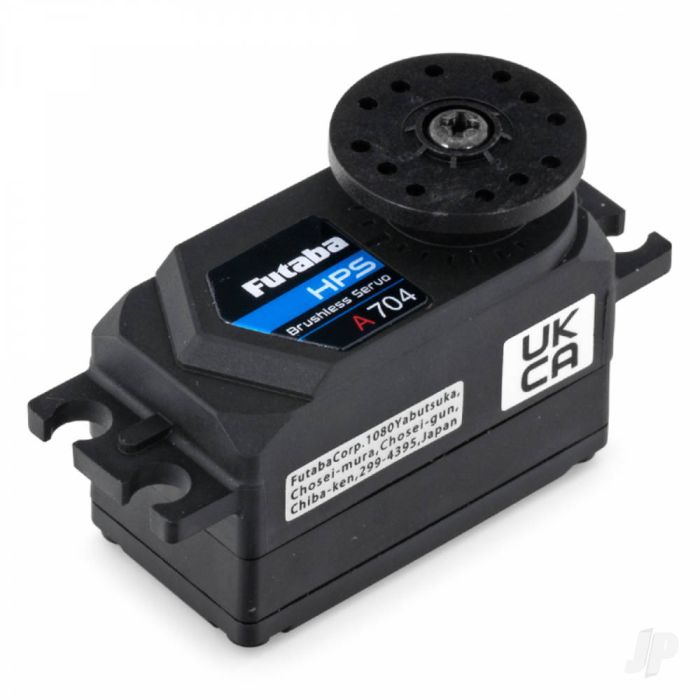

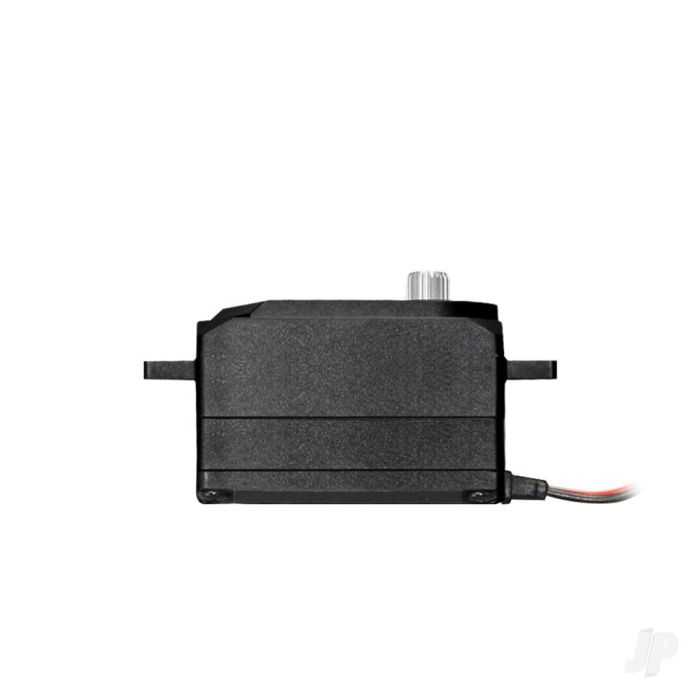

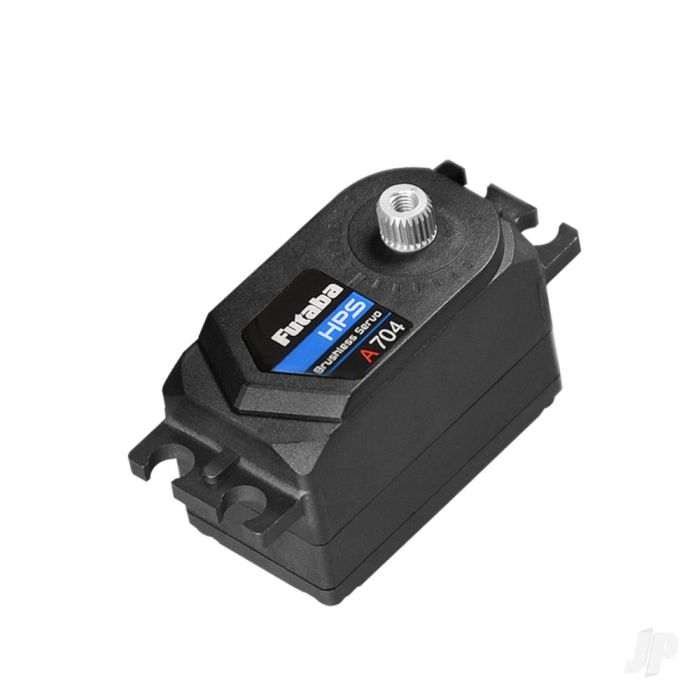

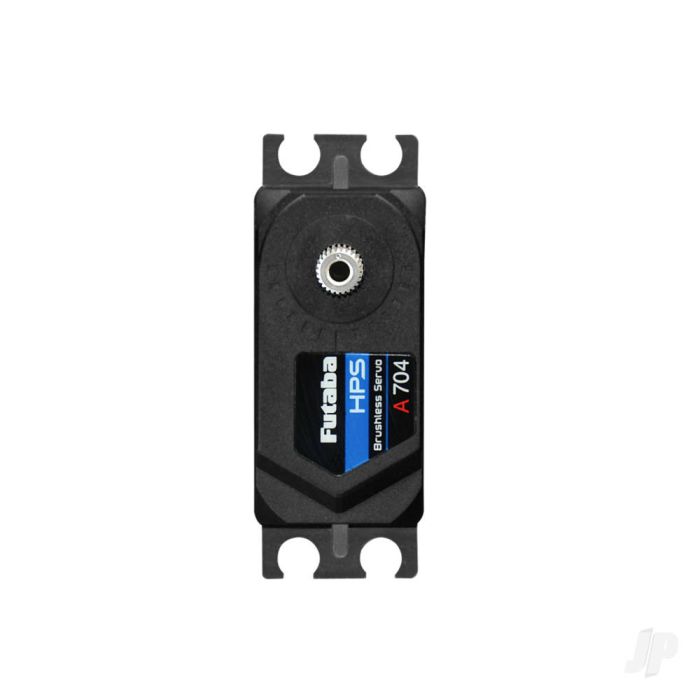

Futaba HPS-A704 Standard Brushless Servo PWM/S.Bus2 16.0kg/0.06s 4.8V - 8.4V

FEATURES

• For F3A airplanes
• Programmable/High performance Brushless Servo
• Custom New high speed Brushless Motor
• Designed with F3A in mind
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is metal
• Upper/middle/bottom: Plastic case

CONTENTS

• 1x HPS-A704 Low Profile Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• For F3A airplanes
• Programmable/High performance Brushless Servo
• Custom New high speed Brushless Motor
• Designed with F3A in mind
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is metal
• Upper/middle/bottom: Plastic case

CONTENTS

• 1x HPS-A704 Low Profile Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-A704– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo ith Brushless Motor

Speed:
0.07 sec/60 (6.6V)
0.06 sec/60 (7.4V)

Torque:
12.5 kgf/cm (6.6V)
173.6 ozf/in (6.6V)
14.0 kgf/cm 7.4V)
194.4 ozf/in (7.4V)

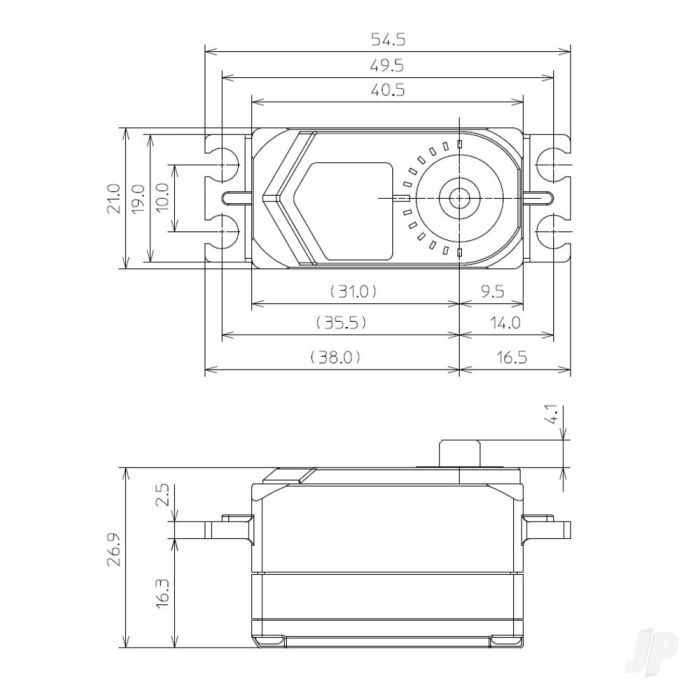

Size:
40.5 x 21 x 26.9 mm
1.59 x 0.83 x 1.06 in

Weight:
48 g
1.69 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
