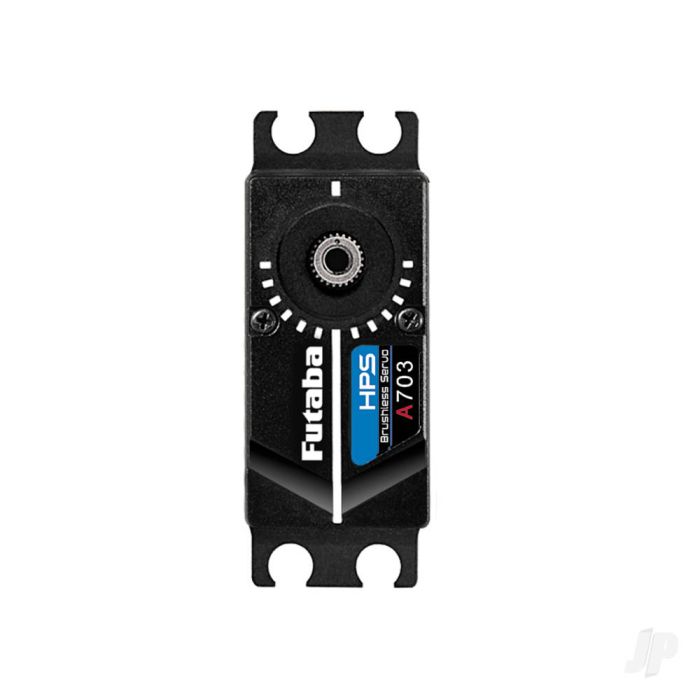

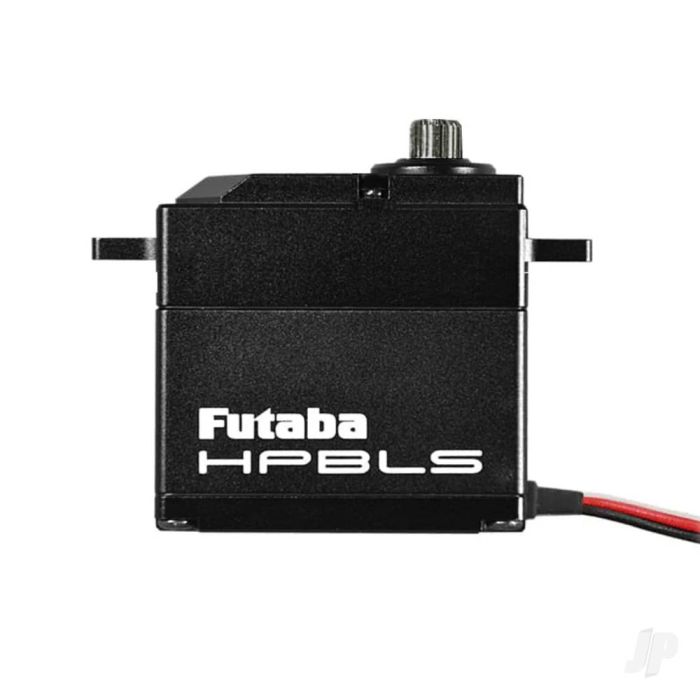

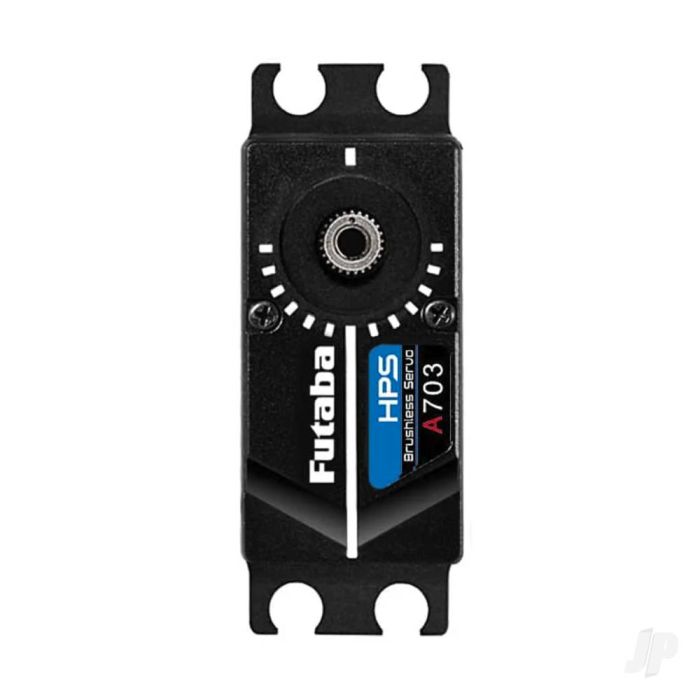

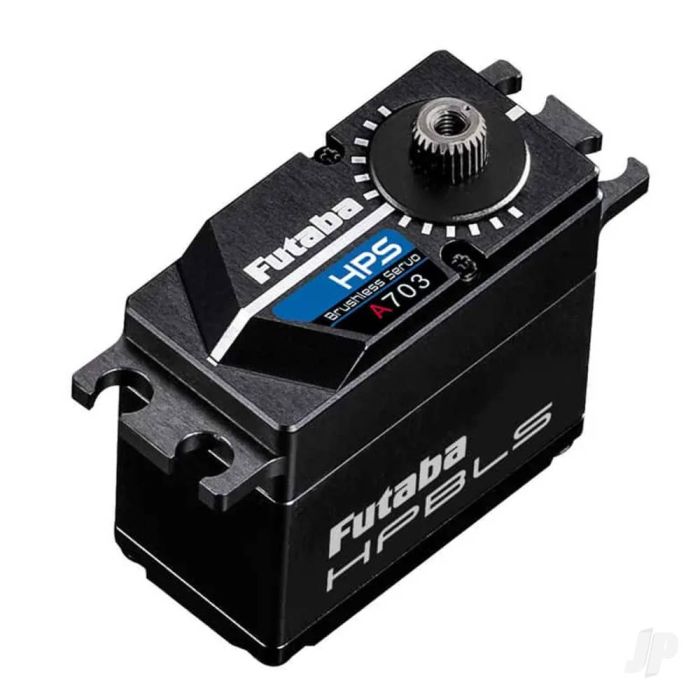

Futaba HPS-A703 Standard Brushless Servo PWM/S.Bus2 74.0kg/0.12s 4.8V - 8.4V

FEATURES

• For all-purpose giant scale airplanes
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Suggested upgrade for BLS172SV/177SV
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is Stainless Steel
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-A703 Standard Brushless Servo
• Horns
• Mounting Hardware

FEATURES

• For all-purpose giant scale airplanes
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Suggested upgrade for BLS172SV/177SV
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Final gear material is Stainless Steel
• Upper/middle/bottom: Aluminium Case

CONTENTS

• 1x HPS-A703 Standard Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-A703– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo with Brushless Motor

Speed:
0.13 sec/60 (6.6V)
0.12 sec/60 (7.4V)

Torque:
61.0 kgf/cm (6.6V)
847.17.4 ozf/in (6.6V)
66.0 kgf/cm(7.4V)
916.61 ozf/in (7.4V)

Size:
40.5 x 21.0 x 39.4 mm
1.59 x 0.83 x 1.55 in

Weight:
82 g
2.89 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
