Futaba CGY770R-GPB1 3-Axis Helicopter Gyro / Receiver & Governor w/ Programmer

FEATURES

• All in one Cyclic Gyro, Tail Rotor Gyro, Governor, Futaba TFHSS/FASSTest Receiver
• High Quality 3 Axis Sensor and Accelerometer
• Wireless Programmability with TX/GPB-1
• 760us & Ultra Response Cyclic and Tail Rotor Capability
• Easy to set-up for 3D and F3C
• Programmable through Hand Held Box: GPB-1
• Supports SBUS2 Telemetry Sensors and Devices
• Aluminium Case
• Rigid or Tape Mounting

CONTENTS

• 1x CGY770R 3-Axis Gyro Gyro
• 1x GPB-1 Programming Box

FEATURES

• All in one Cyclic Gyro, Tail Rotor Gyro, Governor, Futaba TFHSS/FASSTest Receiver
• High Quality 3 Axis Sensor and Accelerometer
• Wireless Programmability with TX/GPB-1
• 760us & Ultra Response Cyclic and Tail Rotor Capability
• Easy to set-up for 3D and F3C
• Programmable through Hand Held Box: GPB-1
• Supports SBUS2 Telemetry Sensors and Devices
• Aluminium Case
• Rigid or Tape Mounting

CONTENTS

• 1x CGY770R 3-Axis Gyro Gyro
• 1x GPB-1 Programming Box

DETAILS

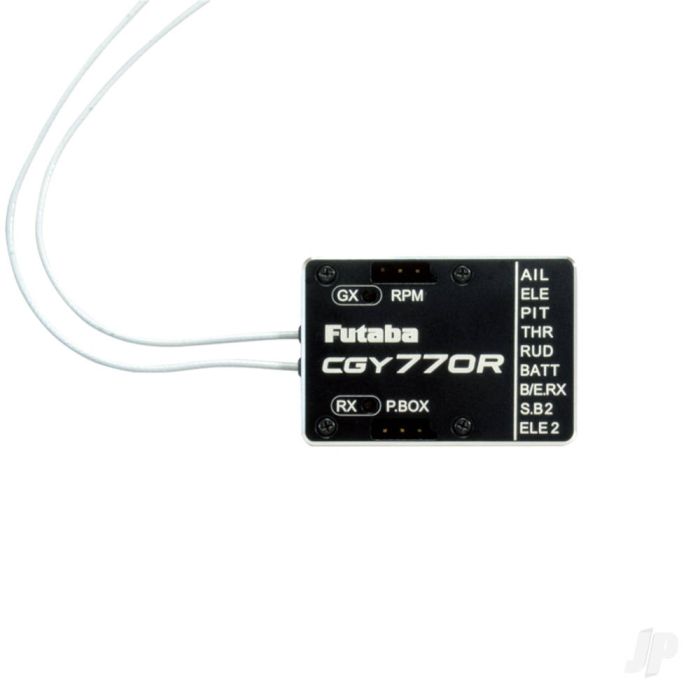

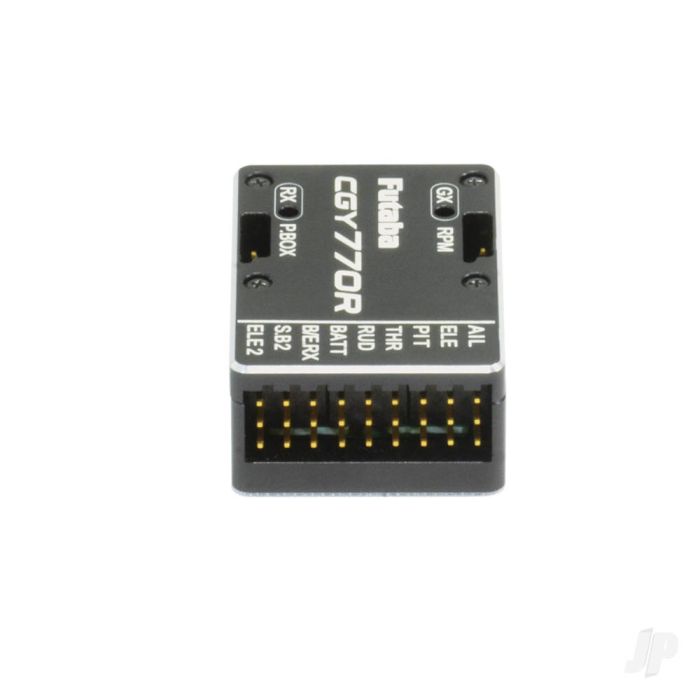

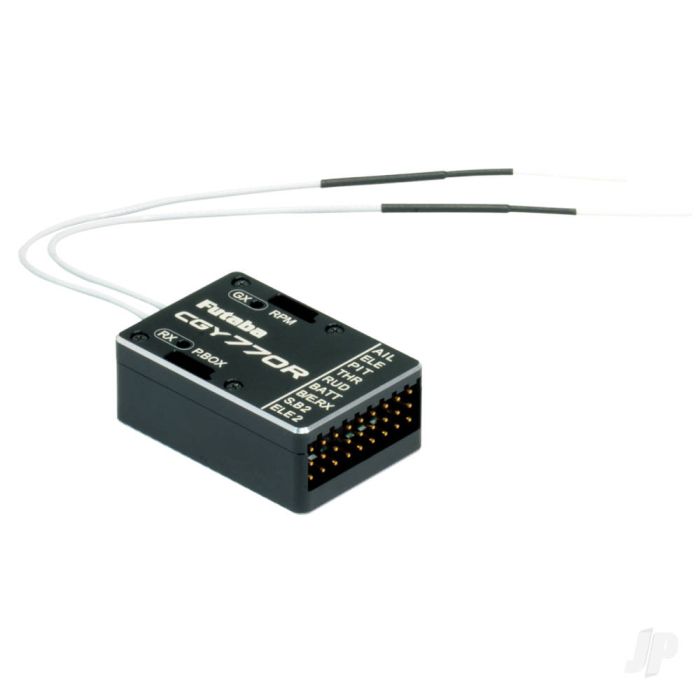

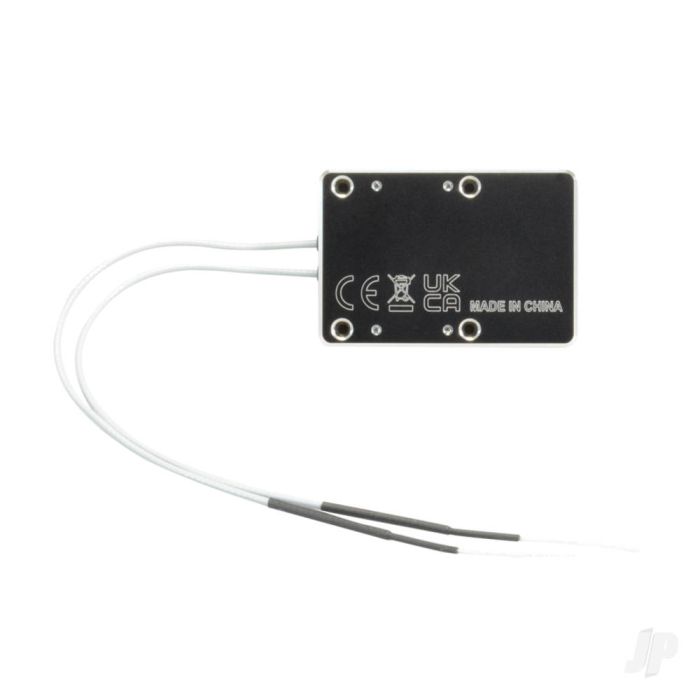

CGY770R– Helicopter Flight Control Gyro
Flight Control for RC Helicopters 250-800 Size (01102410-3)(01102411-3)

Operating Voltage:
DC 4.2 ~ 8.4V

Size:
26.8 x 37.5 x 16 mm
1.055 x 1.476 x 0.63 in

Weight:
20.2 g
0.141 oz

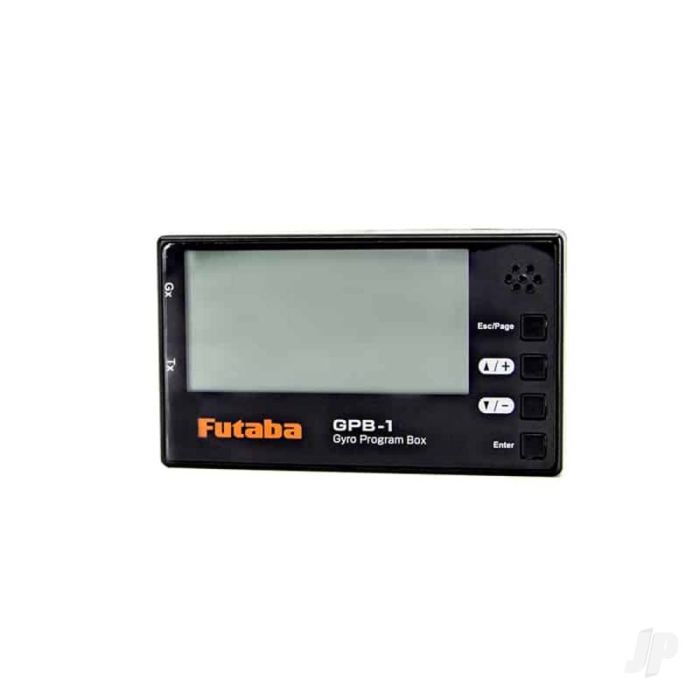

GPB-1 Programming Box

Operating Voltage:
DC 3.5 ~ 8.4V

Size:
54 x 90 x 15.5 mm
2.126 x 3.545 x 0.6102 in

Weight (RPM Sensor):
53.3 g
1.88 oz
