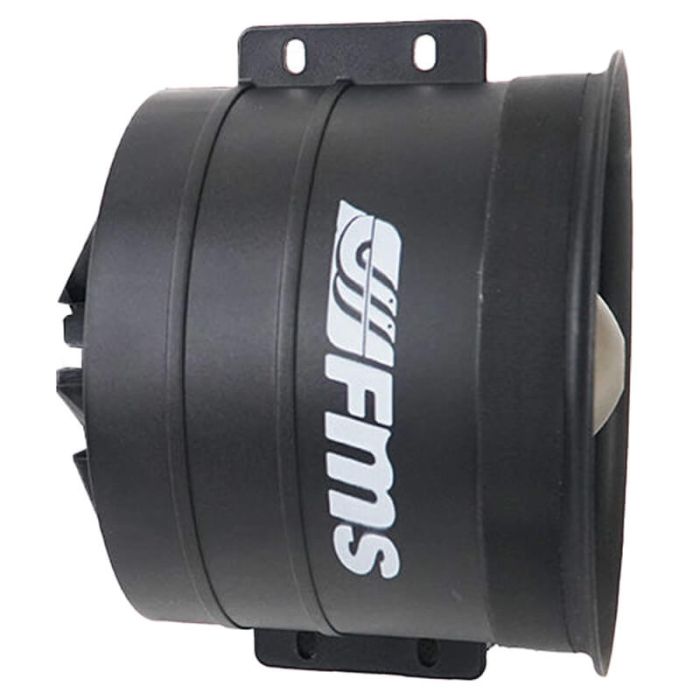

FMS 90mm EDF12 Blade RC Jet Ducted Fan - No Motor Included
See All:
Aeroplanes
See All:
Aeroplanes
No Stock - Available to Backorder
- Part Number
- FMSDFX005
SAVE £3.02
£54.99
£51.97
Description
The FMS 90mm 12 blade EDF fan uses all-composite materials and superior injection moulding processes to provide ultra-high rigidity and toughness. The stainless steel bushing injected in the fan effectively increases the strength and wear resistance of the blade. The first class mould design ensures excellent dynamic balance. The coherent structure makes it possible to install on most 50/64/70/80/90mm ducted fan jets without many manual changes.
The weight of the EDF is 135g (approximately 560g with recommended motor).
The design gives great efficiency and a wonderful "jet like" sound..
Designed by professional aerodynamicist and tested in the prestigious Baihang University.
Specification8mm motor shaft
Recommended LiPo Battery: 6S 5500mAH 35C
Recommended ESC: 120A Brushless
Recommended Motor: Brushless 3670-KV1950
Performance Parameter: Voltage 22.2V, Current 112A, Thrust 3620g
The weight of the EDF is 135g (approximately 560g with recommended motor).
The design gives great efficiency and a wonderful "jet like" sound..
Designed by professional aerodynamicist and tested in the prestigious Baihang University.
Specification
More Information
| Part Number | FMSDFX005 |
|---|---|
| Manufacturer | FMS |
