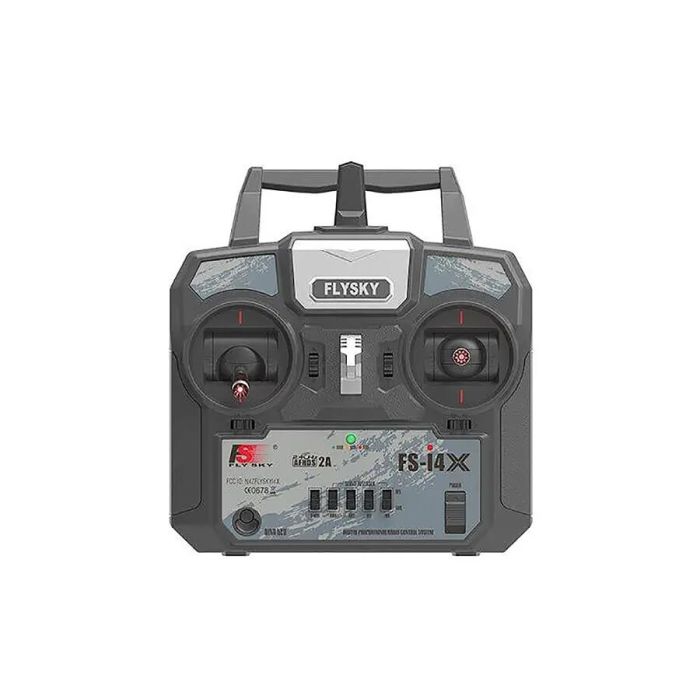

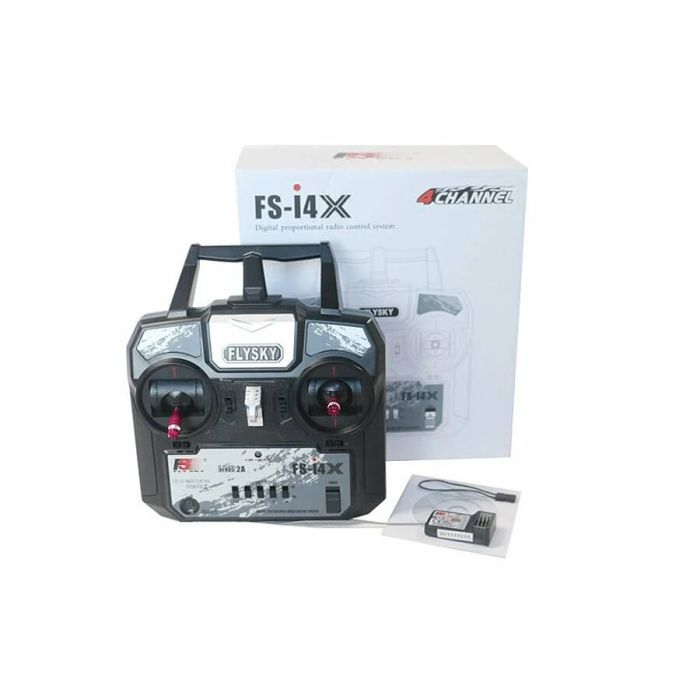

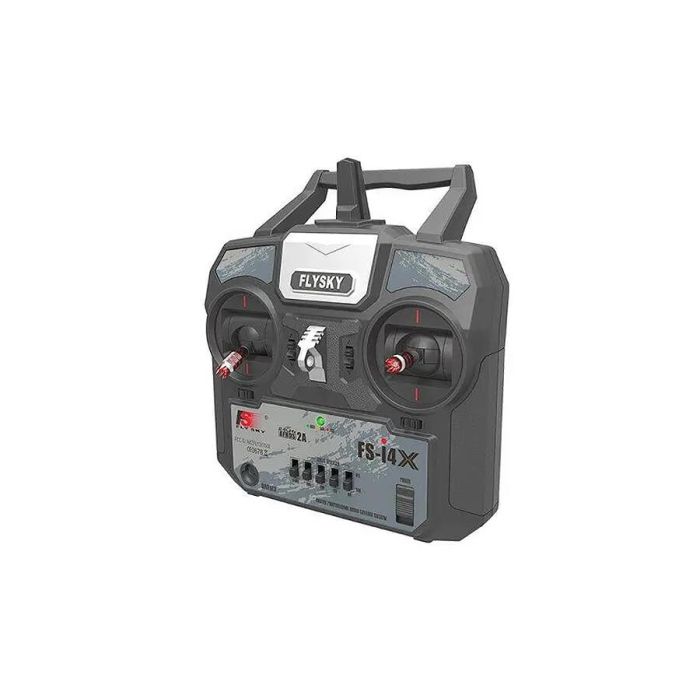

Flysky FS-I4X 4ch 2.4ghz Transmitter Radio System w/A6 Receiver (Mode 2)

Features

With strong initiative and passive anti-interference ability and V-MIX mix control system, compatible with many models.

This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission.

Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter, this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.

Specification

Transmitter:

Band Range: 2.4055-2.475GHz

Band Amount: 140

Channel: 4-10CH

RF Power: <20dBm

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFHDS

Modulation Type: GFSK

Stick Resolution: 1024

Low Voltage Warning: <4.2V

DSC Port: PS2 PPM

Antenna Length: 26mm *2

Weight: 335g

Power: 6V DC 1.5AA*4(Not included)

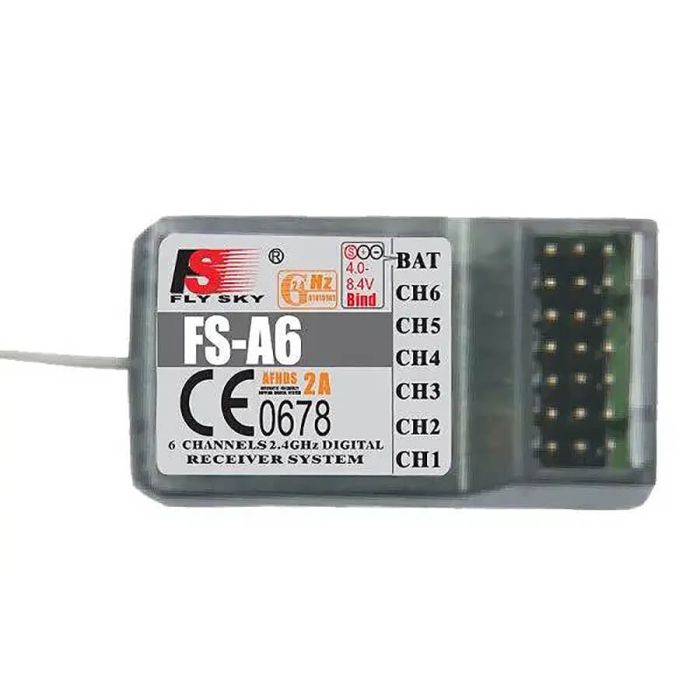

Receiver

Channels: 6

RF Range: 2.4055-2.475GHz

RF Channel: 140

RF Receiver Sensitivity: -105dBm

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A

Modulation Type: GFSK

Power: 4.0-6.5V DC

Antenna Length: 26mm

Weight: 13g

Size: 45*23*9mm

Part Number	FS-I4X-A6M2
Manufacturer	Flysky

Flysky FS-I4X 4ch 2.4ghz Transmitter Radio System w/A6 Receiver (Mode 2)
