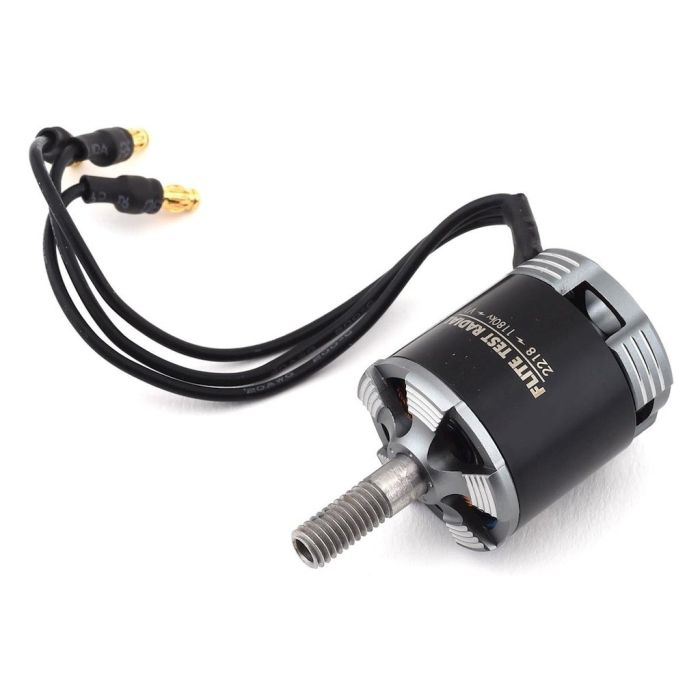

Flite Test Radial 2218B Brushless Motor | For RC Maker Foam Aircraft

Part Number: FLT3036

Availability: On Order with Supplier

£37.99

Description

Details

The Flite Test Radial line of brushless motors are the perfect choice for a wide array of aircraft.

The Radial 2218B motor is designed for Flite Test airplanes that require a "Power Pack C" size motor. It has been carefully designed and engineered to perform better than most in its class, every motor is precision crafted within tight tolerances.

When paired with the appropriately sized propeller, this motor is also more powerful than other similar motors in its size class, producing 20% more thrust while sacrificing minimal efficiency.

Featuring unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. These cooling fins can reduce heat soaking by up to 30% depending on your environment. This “cool” feature allows the 2218 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets are arguably the highest grade magnets available to date. These magnets provide improved acceleration, stopping power, and sustained RPMs during high kv.

Features:

  • Incredible Thrust Output (Over 1Kg/motor on 4s)
  • Integrated Cooling Design for up to 30% motor temps reduction
  • Highest Grade N52 Neodymium magnets
  • Genuine Japanese NMB Bearings
  • Dynamically Balanced
  • 18mm Extended Prop Shaft allows virtually any prop with 5mm hole.
  • High-purity copper windings
  • Specifications:

  • KV: 1180kv
  • Weight: Approx. 76g with wires and bullets
  • Wire AWG: 20AWG
  • Stator Diameter: 22mm
  • Stator Height: 18mm
  • Shaft Diameter: 6mm
  • Configuration: 12N14P
  • Motor Diameter: 27.9mm
  • Motor Height: 34.0mm
  • Recommended Propeller: HQ 10 x 4.7 (both 3S and 4S)
  • Prop Adapter Shaft Thread: M6
  • Input voltage: 3S-4S (12.6 - 16.8v)
  • Bullets: 3.5mm - Preinstalled
  • Details

    Additional Information

    Part Number FLT3036
    Manufacturer Flite Test
