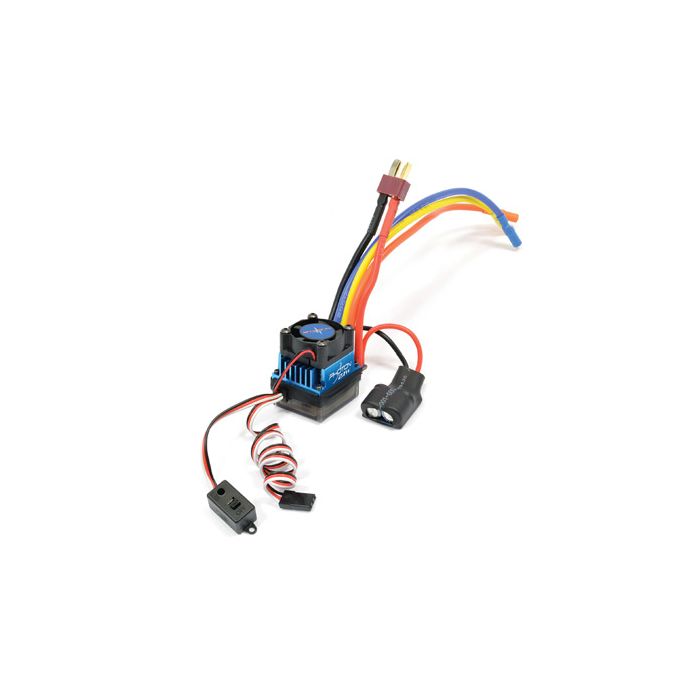

Etronix Photon 45A Splashproof Brushless ESC 2-3S LiPo, 10 Cell NiMh

Part Number: ET0125

Availability: In stock - Dispatch Time 2-5 Working Days




Etronix’s new range of Photon 1/10th scale rated brushless electronic speed controllers (ESC's) are the perfect choice for any 1/10th buggy, truggy, short course or truck application.

  • 2-3S Lipo
  • 5-10S NiMH/NiCd
  • 2A 6V BEC Output
  • 4 Pole Sensorless Bushless Motor
  • 45A Constant current
  • 260A Burst Current

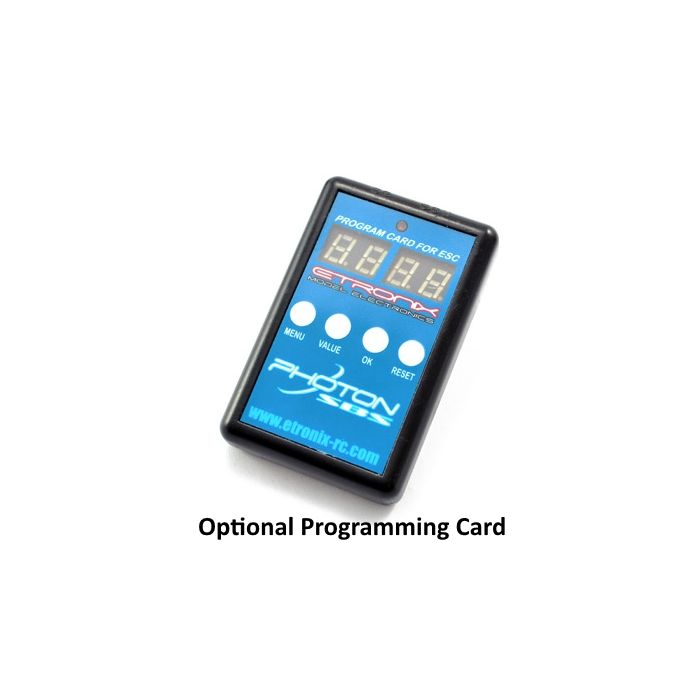

  • With the optional programmable set up card (ET0107 available separately) the user can finely tune ten different parameters within the ESC to suit their particular needs.

    Adjustable Parameters:
  • Cutoff Voltage (automatically detects the number of cells)
  • Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
  • Motor Timing (very low, low, normal, high, very high)
  • Initial Acceleration (low, medium, high, very high)
  • Throttle Percent Reverse (20% through to 100%)
  • Throttle Limit (0% through to 90%)
  • Percentage Braking (10% through to 100%)
  • Percentage Drag Brake (0% through to 30%)
  • Motor Rotation (normal, reverse)
  • Neutral Range (deadband setting 2% through to 10%
  • Details

    Additional Information

    Part Number ET0125
    Manufacturer Etronix
