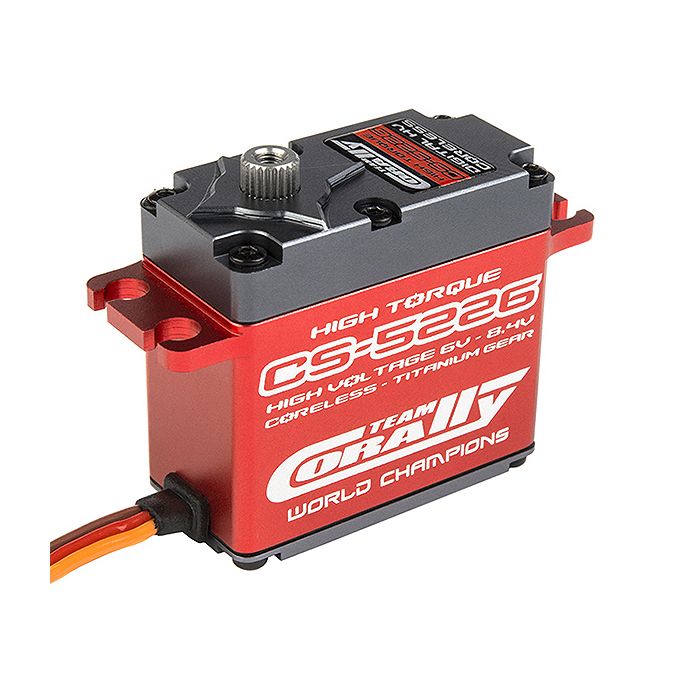

Corally Cs5226 Hv High Speed S Ervo High Voltage Coreless Mot

Are looking for some powerful control?

We have developed these servos with the racer in mind, ultimate digital power, precision and reliablity.

Features

• Full CNC machined alloy case
• High Voltage 6.0 - 8.4V
• Titanium gears
• Ball Raced
• Coreless motor
• Ultra high speed and torque
• Water resistant

Specifications

Motor Type: Coreless Motor
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V - 8.4V
Weight (g): 72 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Height (mm): 36.0 mm
Servo Case: CNC alloy
Servo Power - Torque Kg/cm: > 25 Kg/cm
Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°
Protection: Waterproof
Speed 60°/Sec @ 6.0V: 0.09 Sec/60°
Speed 60°/Sec @ 7.4V: 0.08 Sec/60°
Speed 60°/Sec @ 8.4V: 0.07 Sec/60°
Torque kg/cm @ 6.0V: 18.3 Kg/cm
Torque kg/cm @ 7.4V: 22.6 Kg/cm
Torque kg/cm @ 8.4V: 25.6 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof
