Caldercraft 400:1 Geared Micro Pile Electric Motor - Model Ship Radars, Winches, Cranes

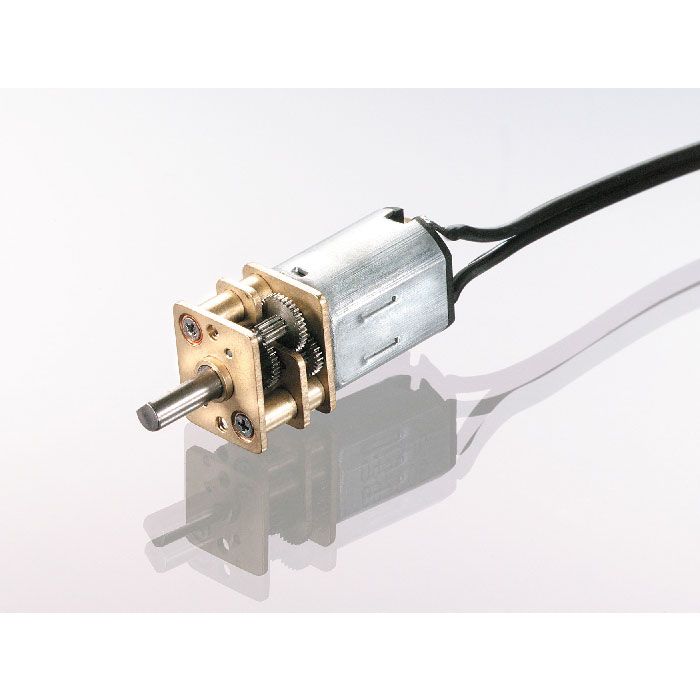

A 400:1 geared micro pile electric motor from Caldercraft.

With its minimal size, this uniquely small geared motor is ideal for driving special functions in ship or truck models. Its large reduction ratio makes it very powerful. This makes it ideal for crane and winch functions. The motor is interference suppressed and fitted with cables.

Ideal for providing drive to rotating ship radars, winches, working cranes, etc in model boats.

Rotates at approximately 40rpm at 6 volts. This can be reduced if operated at a lower voltage.

Specification:

Gear Ratio: 400:1

Maximum Voltage: 6V

RPM at 6V: 40rpm

No Load Current: 80mA

Shaft Diameter: 3mm

Shaft Length: 8mm

Dimensions (including gears): 25 x 12 x 10mm
