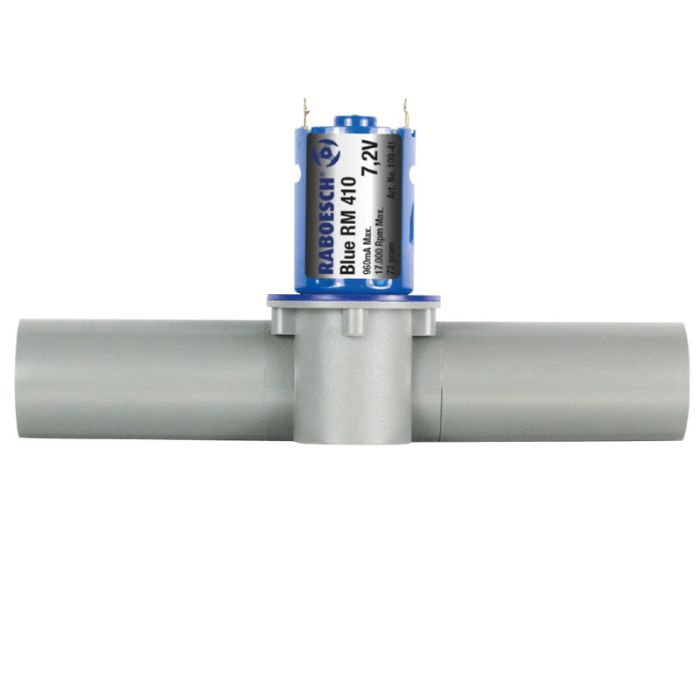

Bow Thruster Set with Electric Motor 22/25 x 154mm for RC Boats by Raboesch

Part Number: RAB-108-04

Availability: In stock

£58.99

Description

Details

Transverse thrusters are used on ships at both the bow and the stern.

Originally they were developed as a bow thruster so that the virtually non-steerable bow of a ship can be pushed to the right or left. This is also the main use in the ship model, since there is usually enough space here. It is mainly used when berthing or reversing, since the effect of the normal ship's rudder is minimal here.

These transverse thrusters are characterized by high performance and real functionality. Please note that the drive motor is operated as usual with a speed controller with a forward / reverse function.

While you operate the normal ship's rudder on the right stick, you can place the transverse thruster on the left stick (right / left). The pipe sections can be dismantled and easily adapted to the shape of the hull.

Cross thrusters from Raboesch are characterized by high quality materials and workmanship. The transverse thruster can be installed either vertically or horizontally. By using O-rings in the housing cover and G-rings in the drive, the transverse thruster is 100% waterproof. It is driven by a 2-bladed paddle wheel, which sucks the water into the jet pipe and pushes it out again very effectively with relatively high pressure on the opposite side. The construction is very stable and maintenance-free. The pump housing and the jet pipes are made of impact-resistant ABS. It is controlled by a stepless speed controller for right and left rotation.

The transverse thrusters are delivered with a fully assembled electric motor. The built-in Blue RM410 motor can be operated with a voltage of 6-9V. If you want to operate the transverse thruster with a different voltage, Raboesch electric motors with different nominal voltages are available.

Technical data:
Jet pipe diameter inside 22 mm
Pipe diameter outside 25 mm
Total length 154 mm
Total height 72 mm
Total width 45 mm
Weight 105 g
Max flow 10.6 L/min

Details

Additional Information

Part Number RAB-108-04
Manufacturer Krick
