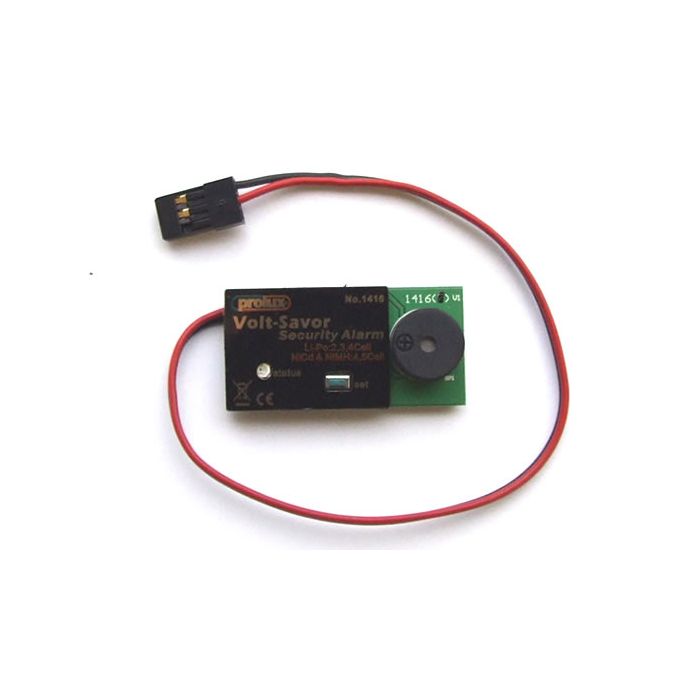

Battery Low Voltage Detector with LED & Audible Alarm 4-16.8V LiPo & 4.8-6V NiMh/NiCad

Part Number: PX1416

Availability: In stock - Dispatch Time 2-5 Working Days




An intelligent battery low voltage detection system which is very easy to install.

Provides a visual ultra bright LED warning if battery voltage is below a safe level and unlike other devices on the market it also provides an excellent audible alarm - just in case you don't see the light!.

Can be used with 2 to 4 cell LiPo battery packs or 4 to 5 cell receiver packs.

Connect to a spare receiver channel or via a Y connector lead between the battery pack and receiver or electronic speed controller (ESC).

  • Selectable low voltage detection for 2-cell, 3-cell, 4-cell Li-Po battery packs.
  • Selectable low voltage detection for 4-cell, 5-cell Ni-Cd and Ni-MH RX packs
  • Dual (light signal, alarm) low voltage warning, easy to know the batteries state
  • Specification:
  • Operating voltage: 4V-16.8V
  • Power consumption current: 0.92mA
  • Operating temperature: -20~ +85°C
  • Dimensions: 40mm x 20mm
  • Weight: 7 +- 1g
  • Details

    Additional Information

    Part Number PX1416
    Manufacturer Prolux
